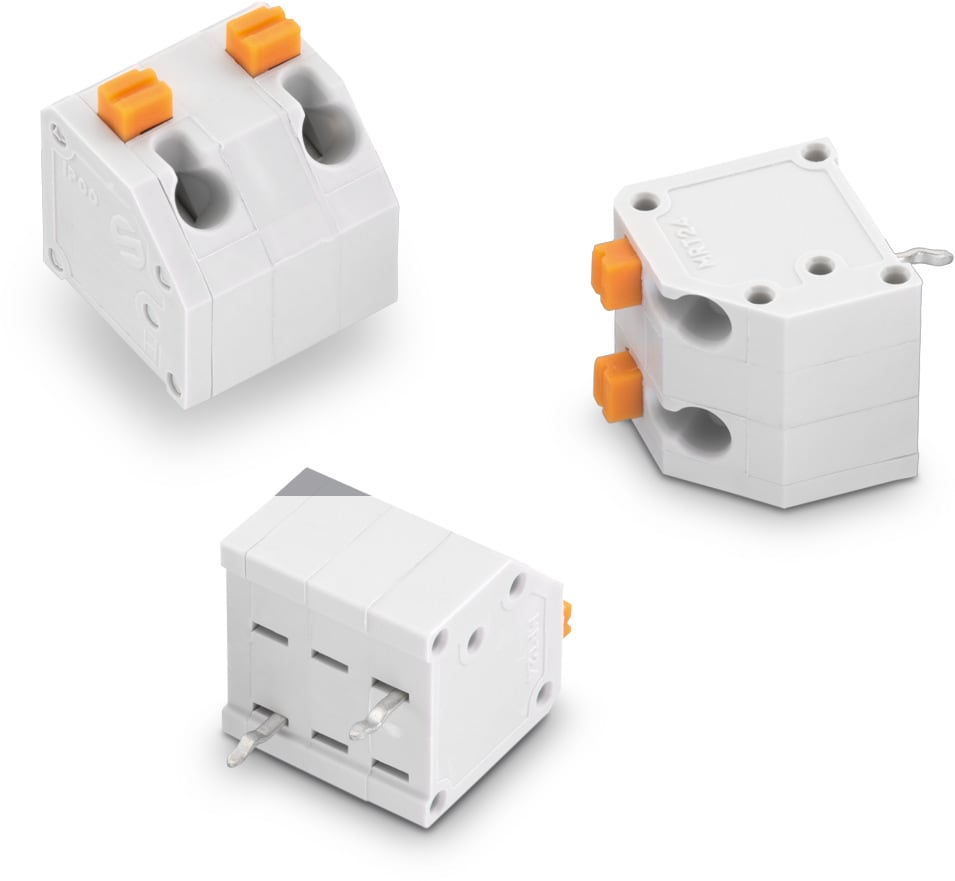

WR-TBL Serie 4124 - 7.62 mm Screwless 45° Entry

Kind Properties
Pitch 7.62 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Grey
Contact Material Copper Alloy
Contact Plating Tin
Wire Guard Material Copper Alloy with Tin
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 4 A
IR VDE 4 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 7 (mm)
Wire Properties
Solid Wire Section (AWG) 16 to 30 (AWG)
Solid Wire Section (Metric) 1.31 to 0.05 (mm²)
Stranded Wire Section (AWG) 16 to 30 (AWG)
Stranded Wire Section (Metric) 1.31 to 0.05 (mm²)
Certification
UL Approval E150931 Cat No. MRT24 (3)
VDE Approval 40013441 Type MRT24
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691412420003
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 3 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420004
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 4 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420005
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 5 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420006
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 6 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420007
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 7 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420008
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 8 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420009
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 9 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420010
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 10 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420011
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 11 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420012
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 12 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412420002
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 2 16 to 30 (AWG) 1.31 to 0.05 (mm²)
Order Code SPEC
691412420003
691412420004
691412420005
691412420006
691412420007
691412420008
691412420009
691412420010
691412420011
691412420012
691412420002
