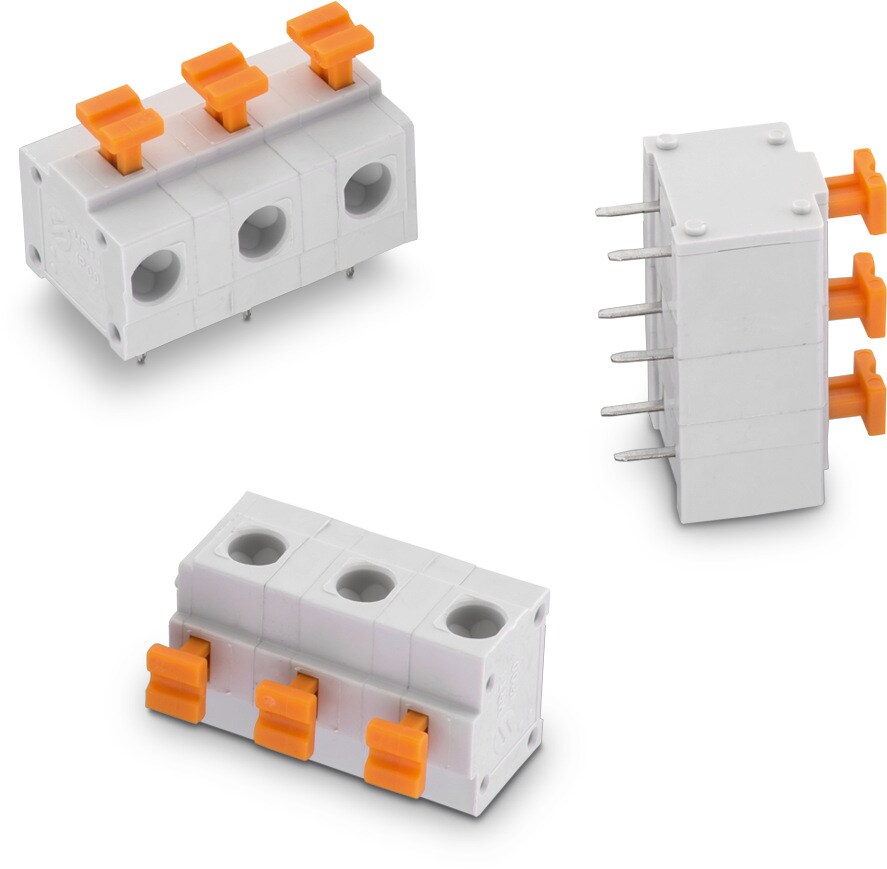

WR-TBL Series 4114 - 7.62 mm Screwless Horizontal Cable Entry | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Wire Guard Material	Copper Alloy with Tin over Nickel
Spring Material	Stainless Steel
Pin Material	Copper Alloy
Pin Plating	Tin over Nickel

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	10 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	10

Wire Properties
Solid Wire Section (AWG)	16 to 30 (AWG)
Solid Wire Section (Metric)	0.5 to 1.5 (mm²)
Stranded Wire Section (AWG)	16 to 30 (AWG)
Stranded Wire Section (Metric)	0.5 to 1.5 (mm²)

Certification
cULus Approval	E150931 [MRT1]
VDE Approval	40021396
VDE Approval	40021396 Type MRT1

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691411410002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410002 (rev1).pdf \| 120.2 KB IGS 691411410002 (rev1).iges \| 1 MB STP 691411410002 (rev1).stp \| 316.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	691001
691411410003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410003 (rev1).pdf \| 120.5 KB IGS 691411410003 (rev1).iges \| 1 MB STP 691411410003 (rev1).stp \| 318 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410004 (rev1).pdf \| 120.9 KB IGS 691411410004 (rev1).iges \| 1 MB STP 691411410004 (rev1).stp \| 319.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410005 (rev1).pdf \| 121.3 KB IGS 691411410005 (rev1).iges \| 1 MB STP 691411410005 (rev1).stp \| 321.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410006 (rev1).pdf \| 121.7 KB IGS 691411410006 (rev1).iges \| 1 MB STP 691411410006 (rev1).stp \| 322.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410007 (rev1).pdf \| 122.1 KB IGS 691411410007 (rev1).iges \| 1 MB STP 691411410007 (rev1).stp \| 324.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410008 (rev1).pdf \| 122.5 KB IGS 691411410008 (rev1).iges \| 1 MB STP 691411410008 (rev1).stp \| 325.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410009 (rev1).pdf \| 122.8 KB IGS 691411410009 (rev1).iges \| 1 MB STP 691411410009 (rev1).stp \| 327.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410010 (rev1).pdf \| 123.2 KB IGS 691411410010 (rev1).iges \| 1 MB STP 691411410010 (rev1).stp \| 329 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410011	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410011 (rev1).pdf \| 123.6 KB IGS 691411410011 (rev1).iges \| 1 MB STP 691411410011 (rev1).stp \| 330.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–
691411410012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411410012 (rev1).pdf \| 124 KB IGS 691411410012 (rev1).iges \| 1 MB STP 691411410012 (rev1).stp \| 332.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Screwless Push In	PCB	No	Horizontal Cable Entry	16 to 30 (AWG) 0.5 to 1.5 (mm²)	–

Order Code	Datasheet
691411410002	SPEC
691411410003	SPEC
691411410004	SPEC
691411410005	SPEC
691411410006	SPEC
691411410007	SPEC
691411410008	SPEC
691411410009	SPEC
691411410010	SPEC
691411410011	SPEC
691411410012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
