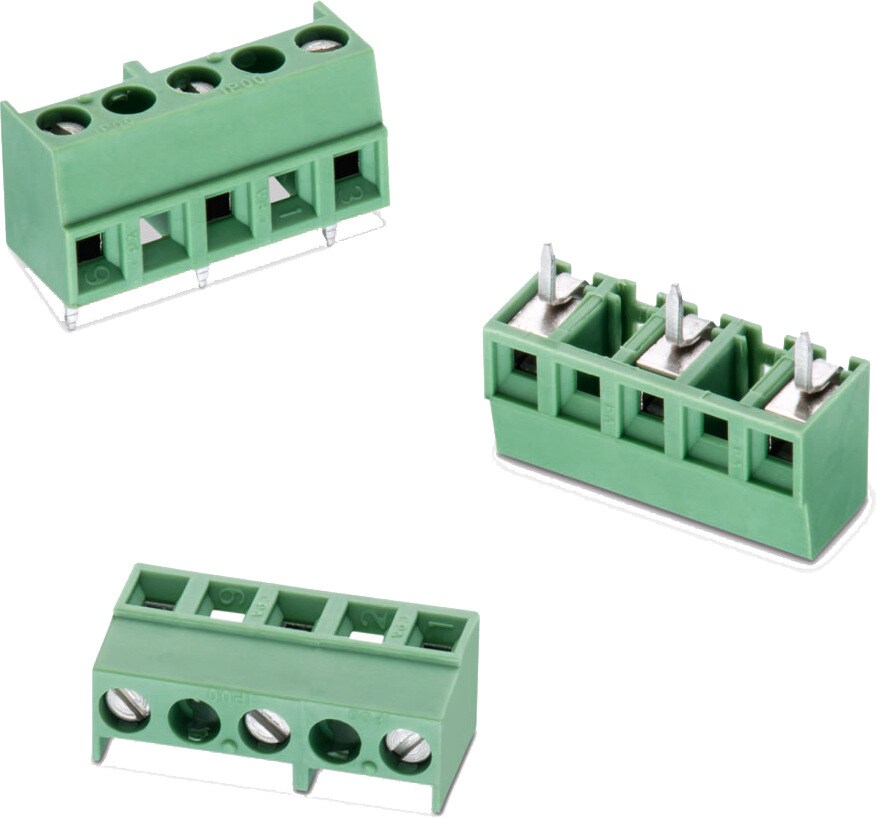

WR-TBL Series 2434 - 7.62 mm Horizontal Entry Modular w. Rising Cage Clamp | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	10 A
Working Voltage	300 V (AC); 450 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	450 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6
Screw	M2

Certification
cULus Approval	E150931
VDE Approval	40015434

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section
691243410003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410003 (rev1).pdf \| 93.4 KB IGS Download_IGES_691243410003 (rev1).iges \| 1.4 MB STP Download_STP_691243410003 (rev1).stp \| 518.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410004 (rev1).pdf \| 116.3 KB IGS Download_IGES_691243410004 (rev1).iges \| 1.7 MB STP Download_STP_691243410004 (rev1).stp \| 642.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410005 (rev1).pdf \| 140.9 KB IGS Download_IGES_691243410005 (rev1).iges \| 2 MB STP Download_STP_691243410005 (rev1).stp \| 769.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410006 (rev1).pdf \| 161.9 KB IGS Download_IGES_691243410006 (rev1).iges \| 2.4 MB STP Download_STP_691243410006 (rev1).stp \| 896.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410007 (rev1).pdf \| 182.7 KB IGS Download_IGES_691243410007 (rev1).iges \| 2.7 MB STP Download_STP_691243410007 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	7	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410008 (rev1).pdf \| 203 KB IGS Download_IGES_691243410008 (rev1).iges \| 3 MB STP Download_STP_691243410008 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410009 (rev1).pdf \| 226.3 KB IGS Download_IGES_691243410009 (rev1).iges \| 3.4 MB STP Download_STP_691243410009 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691243410010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691243410010 (rev1).pdf \| 256.3 KB IGS Download_IGES_691243410010 (rev1).iges \| 3.7 MB STP Download_STP_691243410010 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)

Order Code	Datasheet
691243410003	SPEC
691243410004	SPEC
691243410005	SPEC
691243410006	SPEC
691243410007	SPEC
691243410008	SPEC
691243410009	SPEC
691243410010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
