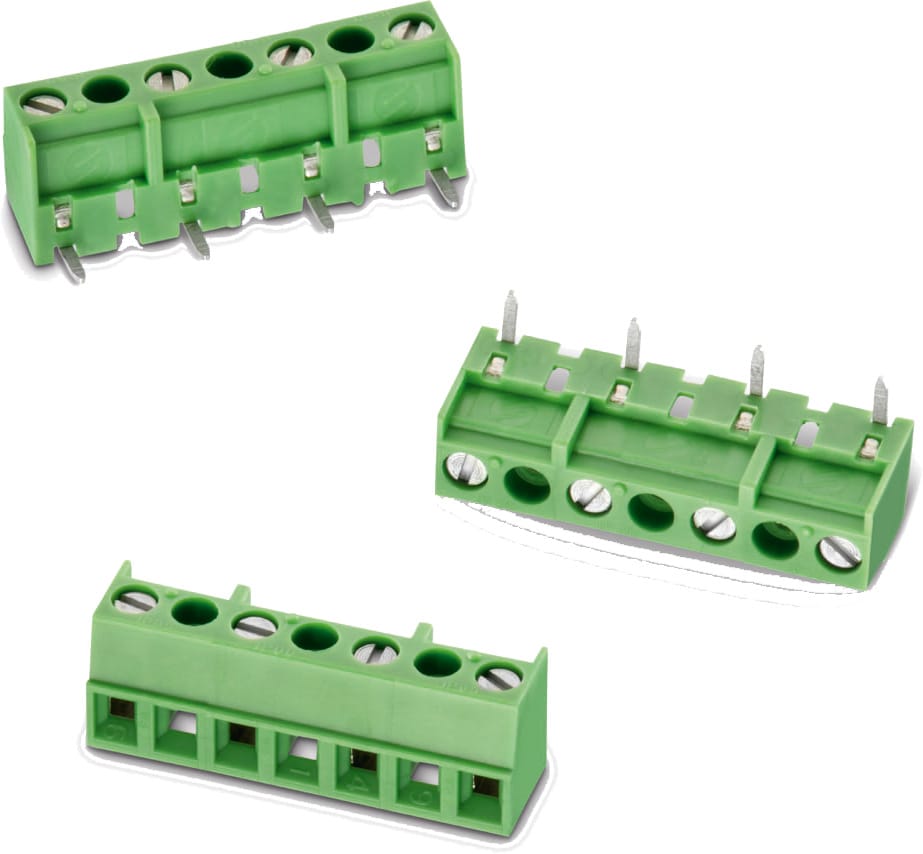

WR-TBL Serie 2434 - 7.62 mm Vertical Entry Modular w. Rising Cage Clamp

Kind Properties
Pitch 7.62 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Tin over Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance RoHS
Electrical Properties
IR UL 10 A
IR VDE 10 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 450 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance [UL] 20 mΩ
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6
Screw M2
Certification
cULus Approval E150931
VDE Approval 40015434
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691243400003
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Vertical 3 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400004
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 4 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400005
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 5 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400006
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 6 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400007
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 7 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400008
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 8 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400009
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 9 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691243400010
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Vertical 10 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
