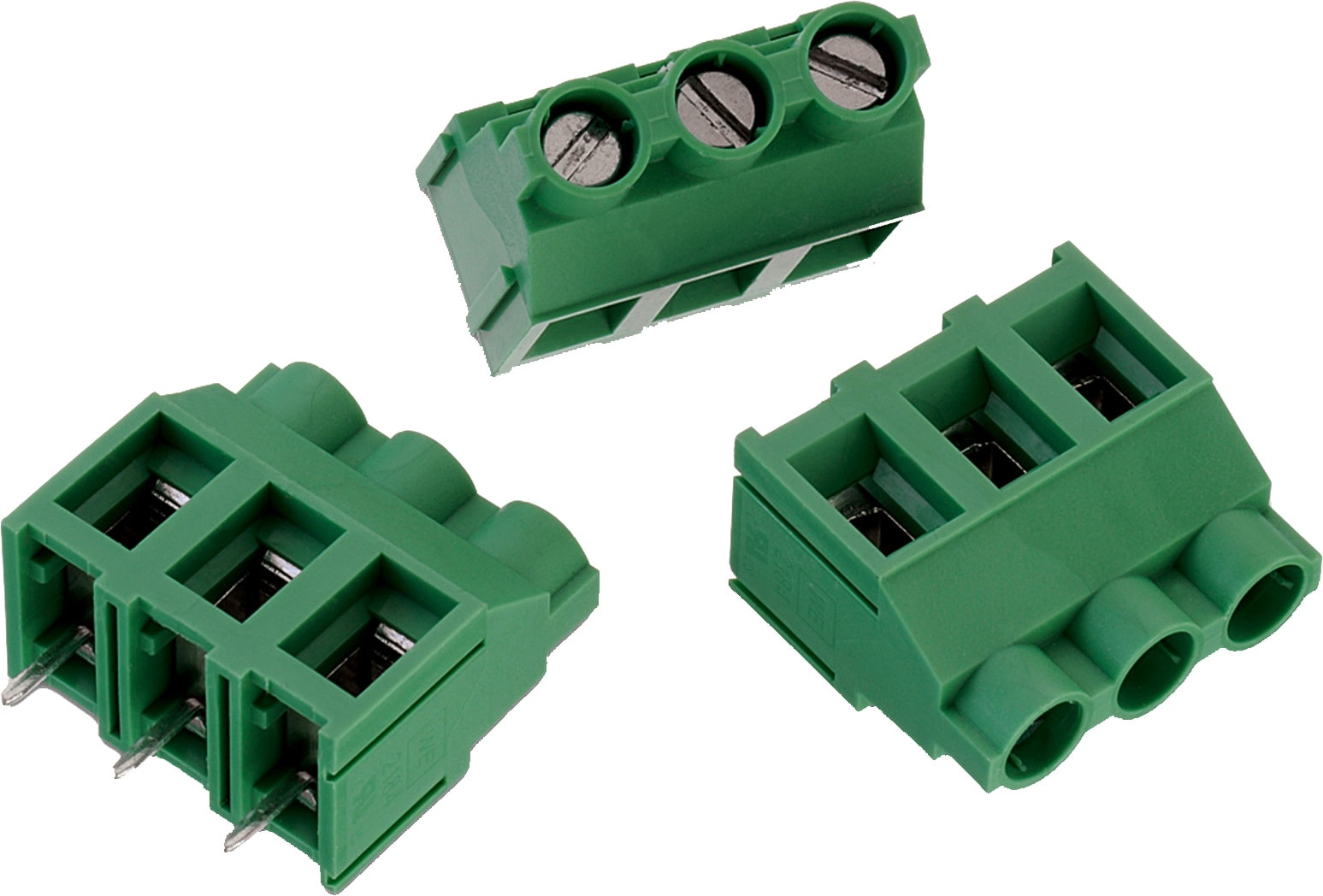

WR-TBL Series 2184 - 7.62 mm Horiz. Entry Modular

Kind Properties
Pitch 7.62 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper
Contact Plating Tin over Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Stainless Steel
General Information
Operating Temperature -40 up to +105 °C
Compliance Lead free / RoHS
Electrical Properties
IR cULus 30 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Contact Resistance [cULus] 20 mΩ
Mechanical Properties
Wire Strip Length 6 up to 7 (mm)
Screw M3.5
Certification
cULus Approval E315414
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691218410003
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes Horizontal 3 10 to 24 (AWG) 5.26 to 0.205 (mm²)
691218410002
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes Horizontal 2 10 to 24 (AWG) 5.26 to 0.205 (mm²) 691001
Order Code Data­sheet
691218410003
691218410002
Samples
Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
