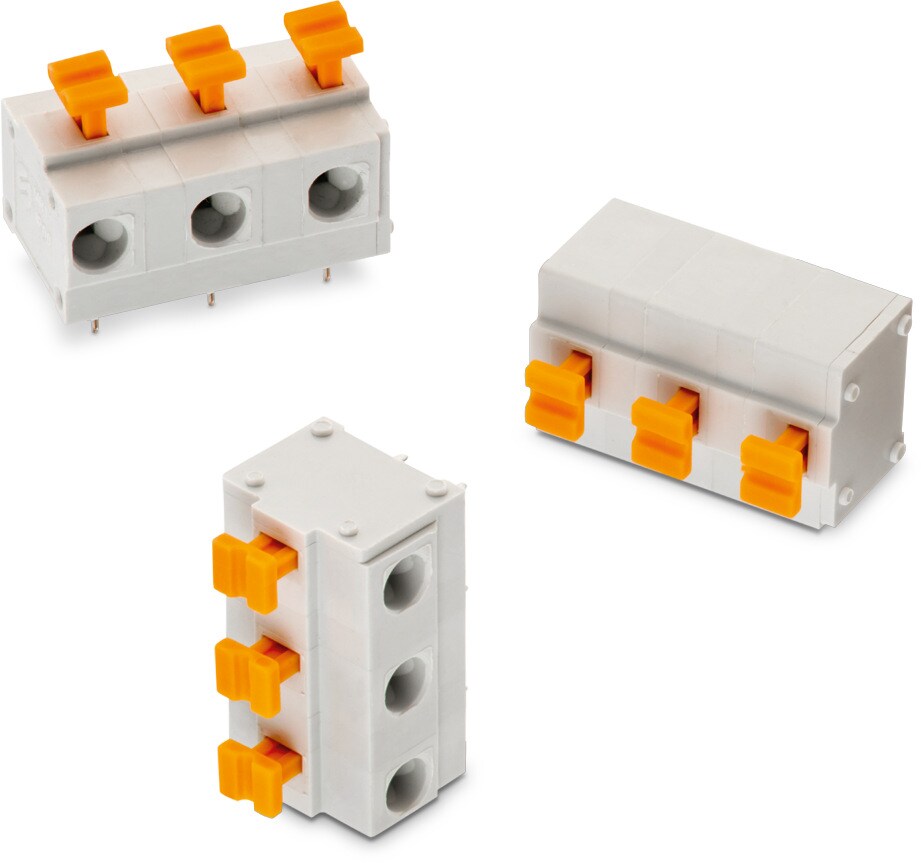

WR-TBL Series 4119 - 7.50 mm Screwless Horizontal Entry

General Information
Operating Temperature-30 °C up to +120 °C
ComplianceROHS & Reach
Pitch7.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialINOX Steel
Contact TypeStamped
Wire Guard MaterialCopper Alloy
Electrical Properties
IR cULus10 A
IR VDE10 A
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]750 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]3000 V (AC)
Contact Resistance20 mΩ
Mechanical Properties
Wire Strip Length10
Wire Properties
Solid Wire Section (AWG)16 to 30 (AWG)
Solid Wire Section (Metric)1.31 to 0.0509 (mm²)
Stranded Wire Section (AWG)16 to 30 (AWG)
Stranded Wire Section (Metric)1.31 to 0.0509 (mm²)
Certification
cULus ApprovalE150931
VDE Approval40021396
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691411910002SPEC
6 files 2 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)691001
691411910003SPEC
6 files 3 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910004SPEC
6 files 4 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910005SPEC
6 files 5 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910006SPEC
6 files 6 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910007SPEC
6 files 7 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910008SPEC
6 files 8 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910009SPEC
6 files 9 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910010SPEC
6 files 10 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910011SPEC
6 files 11 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691411910012SPEC
6 files 12 Screwless PCB No Horizontal 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
Order Code Data­sheet
691411910002SPEC
691411910003SPEC
691411910004SPEC
691411910005SPEC
691411910006SPEC
691411910007SPEC
691411910008SPEC
691411910009SPEC
691411910010SPEC
691411910011SPEC
691411910012SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.

  • Highly customized products
  • Over 2000 standard articles
  • Available from stock without MOQ
  • Personalized modifications of standard parts for small quantities
  • Color & printing possibilities with MOQ for mass production

Personalized Modifications of Standard Terminal Blocks

Ink Jet

Printing for your terminal blocks (e.g. coding, personalization)

Coding

Installation of coding pins according to keying specification

Color Coding

For selected series according to your specifications (412B / 412MB / 413B)

Assembly

Rapid assembly of pin numbers according to your needs

Assortments
