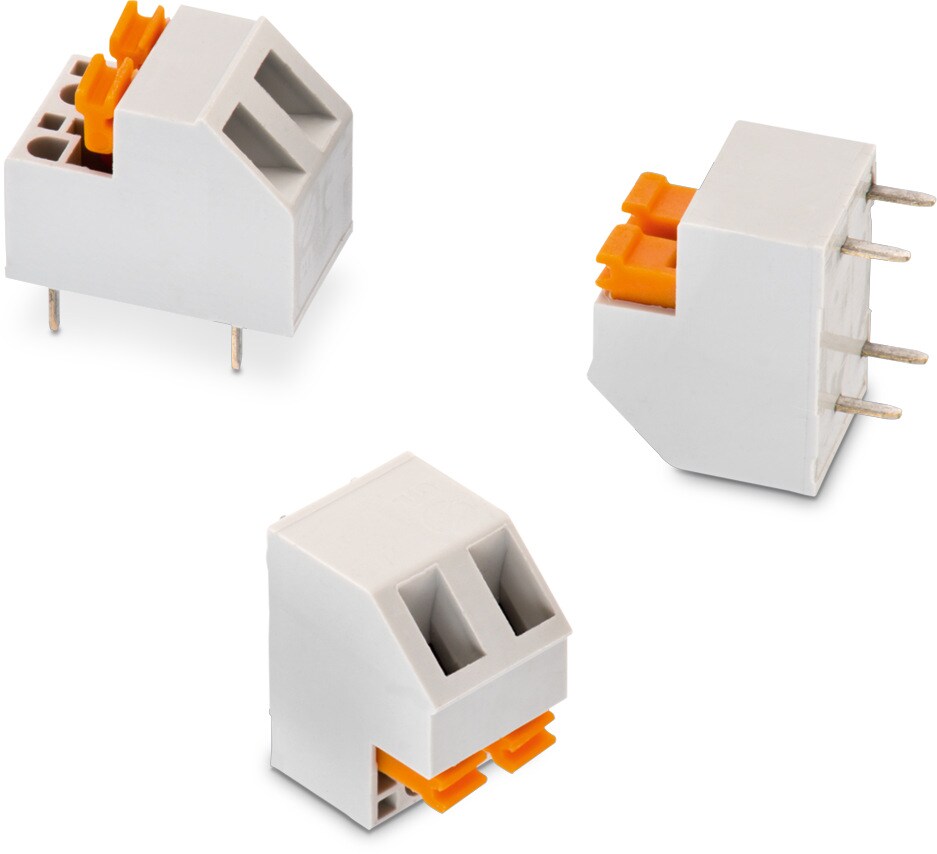

WR-TBL Series 4155 - 5.08 mm Screwless 45° Entry | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	ROHS & Reach
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	INOX Steel
Contact Type	Stamped
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	10 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	10 (mm)

Wire Properties
Solid Wire Section (AWG)	16 to 22 (AWG)
Solid Wire Section (Metric)	1.31 to 0.326 (mm²)
Stranded Wire Section (AWG)	18 to 22 (AWG)
Stranded Wire Section (Metric)	0.823 to 0.326 (mm²)

Certification
cULus Approval	E150931
VDE Approval	40021374

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691415520002	2, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691415520002_1 (rev1).pdf \| 96.3 KB IGS 691415520002 (rev1).iges \| 1.8 MB STP 691415520002 (rev1).stp \| 619.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 18 to 22 (AWG) 0.823 to 0.326 (mm²)	Design Kit 691001
691415520003	3, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691415520003_1 (rev1).pdf \| 123.7 KB IGS 691415520003 (rev1).iges \| 2.3 MB STP 691415520003 (rev1).stp \| 825.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 18 to 22 (AWG) 0.823 to 0.326 (mm²)	Design Kit 691001
691415520004	4, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691415520004_1 (rev1).pdf \| 154 KB IGS 691415520004 (rev1).iges \| 2.9 MB STP 691415520004 (rev1).stp \| 1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 18 to 22 (AWG) 0.823 to 0.326 (mm²)	Design Kit –
691415520005	5, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691415520005_1 (rev1).pdf \| 181.9 KB IGS 691415520005 (rev1).iges \| 3.5 MB STP 691415520005 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 18 to 22 (AWG) 0.823 to 0.326 (mm²)	Design Kit –
691415520006	6, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691415520006_1 (rev1).pdf \| 211.8 KB IGS 691415520006 (rev1).iges \| 4.1 MB STP 691415520006 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 18 to 22 (AWG) 0.823 to 0.326 (mm²)	Design Kit –
