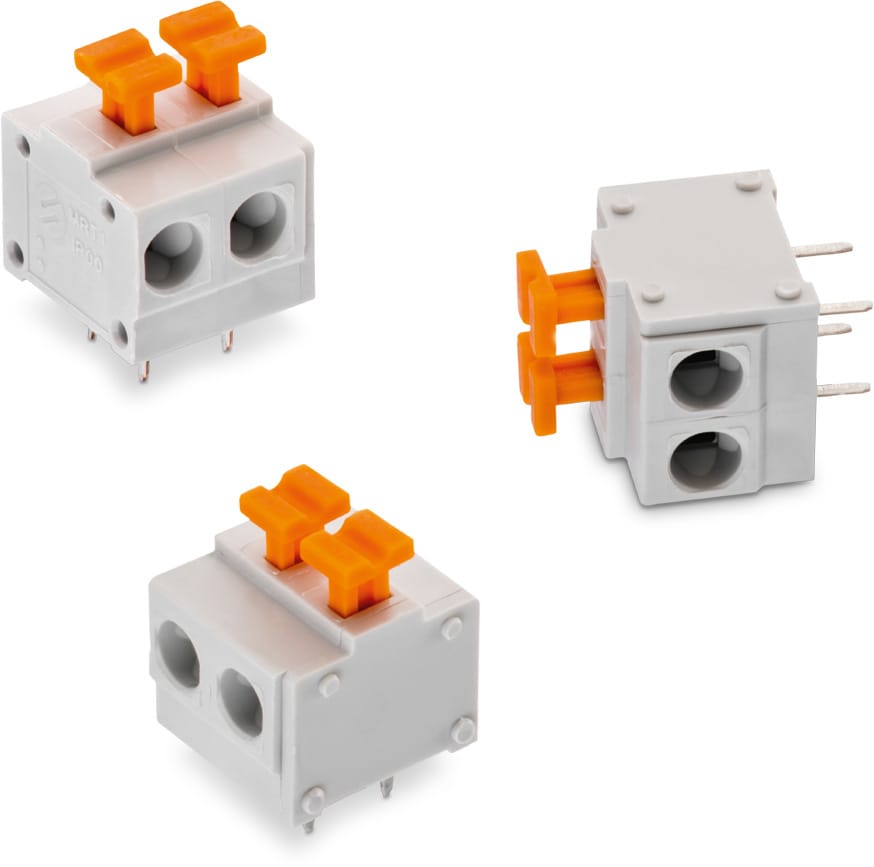

WR-TBL Series 4115 - 5.08 mm Screwless Horizontal Entry | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	ROHS & Reach
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Wire Guard Material	Copper Alloy
Spring Material	Stainless Steel
Pin Material	Copper Alloy
Pin Plating	Tin over Nickel

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	10 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	10

Wire Properties
Solid Wire Section (AWG)	16 to 30 (AWG)
Solid Wire Section (Metric)	0.5 to 1.5 (mm²)
Stranded Wire Section (AWG)	16 to 30 (AWG)
Stranded Wire Section (Metric)	0.5 to 1.5 (mm²)

Certification
cULus Approval	E150931 [MRT1]
VDE Approval	40021396

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	SamplesAvailability & Sample
691411510002	SPEC2, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510002_1 (rev1).pdf \| 244.6 KB IGS 691411510002 (rev1).iges \| 3.1 MB STP 691411510002 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit 691001	–Check availability
691411510003	SPEC3, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510003_1 (rev1).pdf \| 272.9 KB IGS 691411510003 (rev1).iges \| 3.4 MB STP 691411510003 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit 691001	–Check availability
691411510004	SPEC4, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510004_1 (rev1).pdf \| 301.7 KB IGS 691411510004 (rev1).iges \| 3.7 MB STP 691411510004 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510005	SPEC5, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510005_1 (rev1).pdf \| 324.2 KB IGS 691411510005 (rev1).iges \| 4.1 MB STP 691411510005 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510006	SPEC6, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510006_1 (rev1).pdf \| 349.2 KB IGS 691411510006 (rev1).iges \| 4.4 MB STP 691411510006 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510007	SPEC7, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510007_1 (rev1).pdf \| 377.1 KB IGS 691411510007 (rev1).iges \| 4.7 MB STP 691411510007 (rev1).stp \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510008	SPEC8, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510008_1 (rev1).pdf \| 401.7 KB IGS 691411510008 (rev1).iges \| 5.1 MB STP 691411510008 (rev1).stp \| 1.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510009	SPEC9, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510009_1 (rev1).pdf \| 427.1 KB IGS 691411510009 (rev1).iges \| 5.4 MB STP 691411510009 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510010	SPEC10, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510010_1 (rev1).pdf \| 449.4 KB IGS 691411510010 (rev1).iges \| 5.7 MB STP 691411510010 (rev1).stp \| 2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510011	SPEC11, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510011_1 (rev1).pdf \| 470.5 KB IGS 691411510011 (rev1).iges \| 6 MB STP 691411510011 (rev1).stp \| 2.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability
691411510012	SPEC12, Screwless Push In, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691411510012_1 (rev1).pdf \| 494.4 KB IGS 691411510012 (rev1).iges \| 6.4 MB STP 691411510012 (rev1).stp \| 2.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 16 to 30 (AWG) 0.5 to 1.5 (mm²)	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
