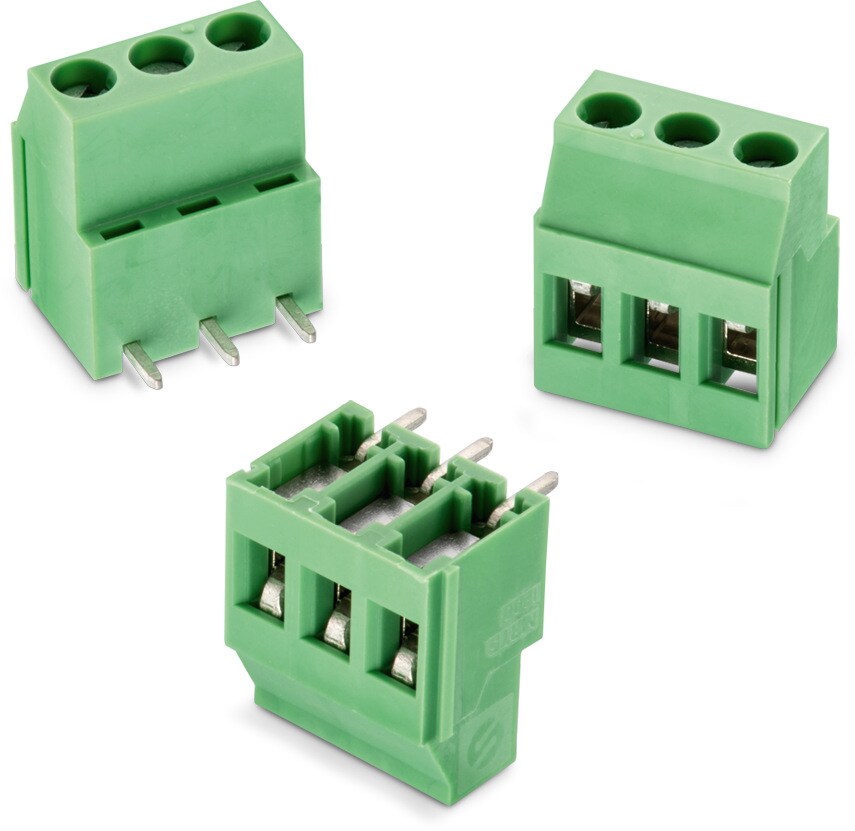

WR-TBL Serie 2535 - 5.08 mm Vertical Entry Modular w. Rising Cage Clamp

Kind Properties
Pitch 5.08 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance RoHS
Electrical Properties
IR UL 16 A
IR VDE 24 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 450 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance [UL] 20 mΩ
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6
Screw M3
Certification
cULus Approval E150931
VDE Approval 40021392
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691253500002
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Vertical 2 12 to 30 (AWG) 3.31 to 0.0509 (mm²) 691001
691253500003
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Vertical 3 12 to 30 (AWG) 3.31 to 0.0509 (mm²)
Order Code SPEC
691253500002
691253500003
Samples
Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
