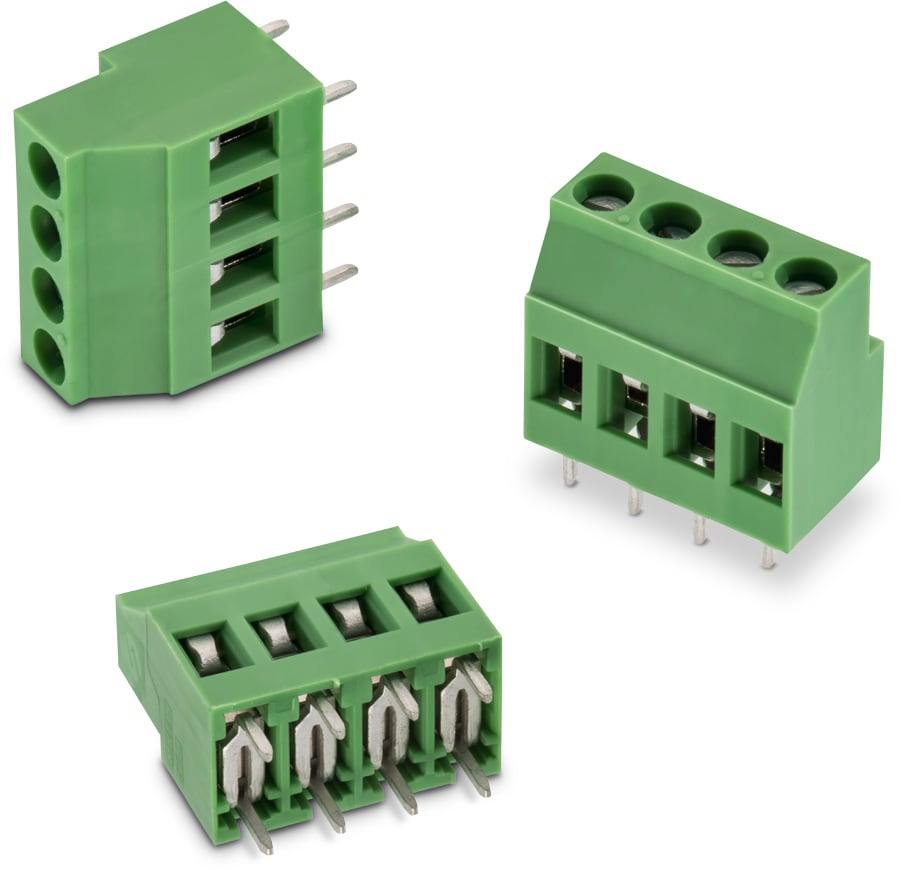

WR-TBL Series 2455 - 5.08 mm Horizontal Cable Entry Rising Cage

Kind Properties
Pitch5.08 mm
Material Properties
Insulator MaterialPA6/66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialCopper Alloy
Contact PlatingNickel (Ni)
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy
General Information
Operating Temperature-30 up to +120 °C
ComplianceLead free / RoHS
Electrical Properties
IR cULus16 A
IR VDE24 A
Working Voltage300 V (AC); 450 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]450 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance20 mΩ
Mechanical Properties
Wire Strip Length6 (mm)
ScrewM3
Certification
cULus ApprovalE150931
VDE Approval40015450
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Samples
691245510004SPEC
6 files 4 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
691245510005SPEC
6 files 5 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
691245510006SPEC
6 files 6 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
691245510007SPEC
6 files 7 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
691245510008SPEC
6 files 8 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
691245510009SPEC
6 files 9 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
691245510010SPEC
6 files 10 Rising Cage Clamp PCB No Horizontal 12 to 30 (AWG) 0.05 to 3.31 (mm²) 24
Order Code Data­sheet
691245510004SPEC
691245510005SPEC
691245510006SPEC
691245510007SPEC
691245510008SPEC
691245510009SPEC
691245510010SPEC
