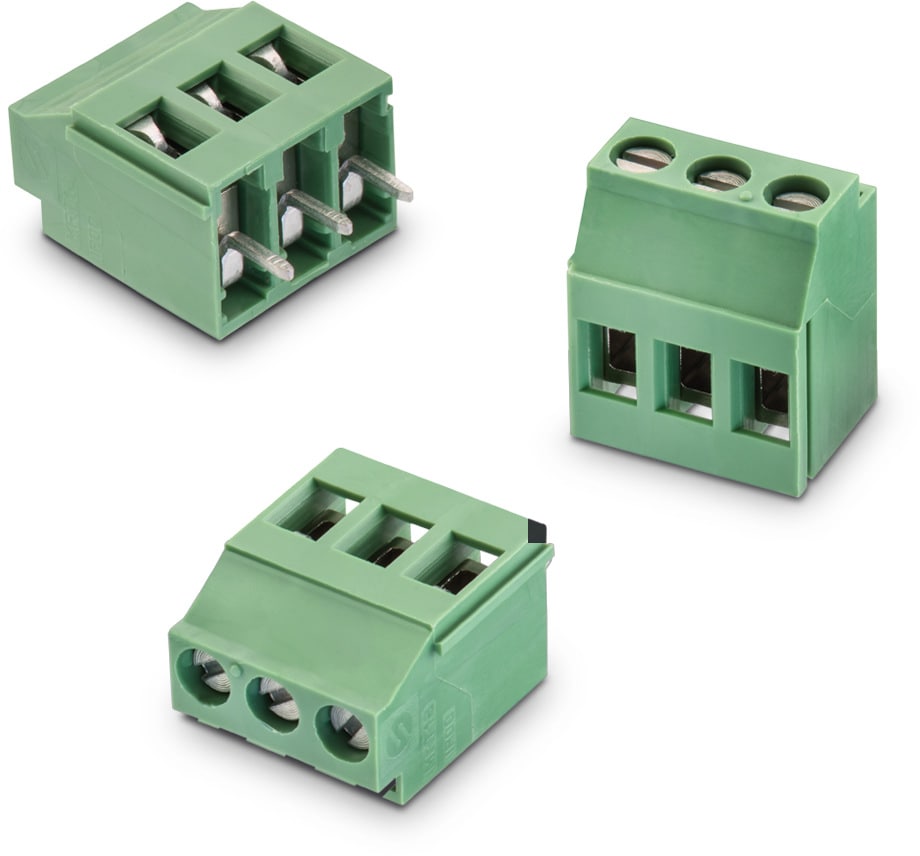

WR-TBL Series 2365 - 5.08 mm Horiz. Entry w. Rising Cage Clamp

Kind Properties
Pitch5.08 mm
Material Properties
Insulator MaterialPA6/66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialCopper Alloy
Contact PlatingNickel (Ni)
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy with Tin over Nickel
General Information
Operating Temperature-30 up to +120 °C
ComplianceLead free / RoHS
Electrical Properties
IR cULus20 A
IR VDE20 A
Working Voltage300 V (AC); 450 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]450 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance20 mΩ
Mechanical Properties
Wire Strip Length6 (mm)
ScrewM3
Certification
cULus ApprovalE150931
VDE Approval40022114 Type MRT18
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Samples
691236510002SPEC
6 files 2 Rising Cage Clamp PCB Yes Double Level Horizontal 12 to 30 (AWG) 3.31 to 0.0509 (mm²) 20
691236510003SPEC
6 files 3 Rising Cage Clamp PCB Yes Double Level Horizontal 12 to 30 (AWG) 3.31 to 0.0509 (mm²) 20
Order Code Data­sheet
691236510002SPEC
691236510003SPEC
