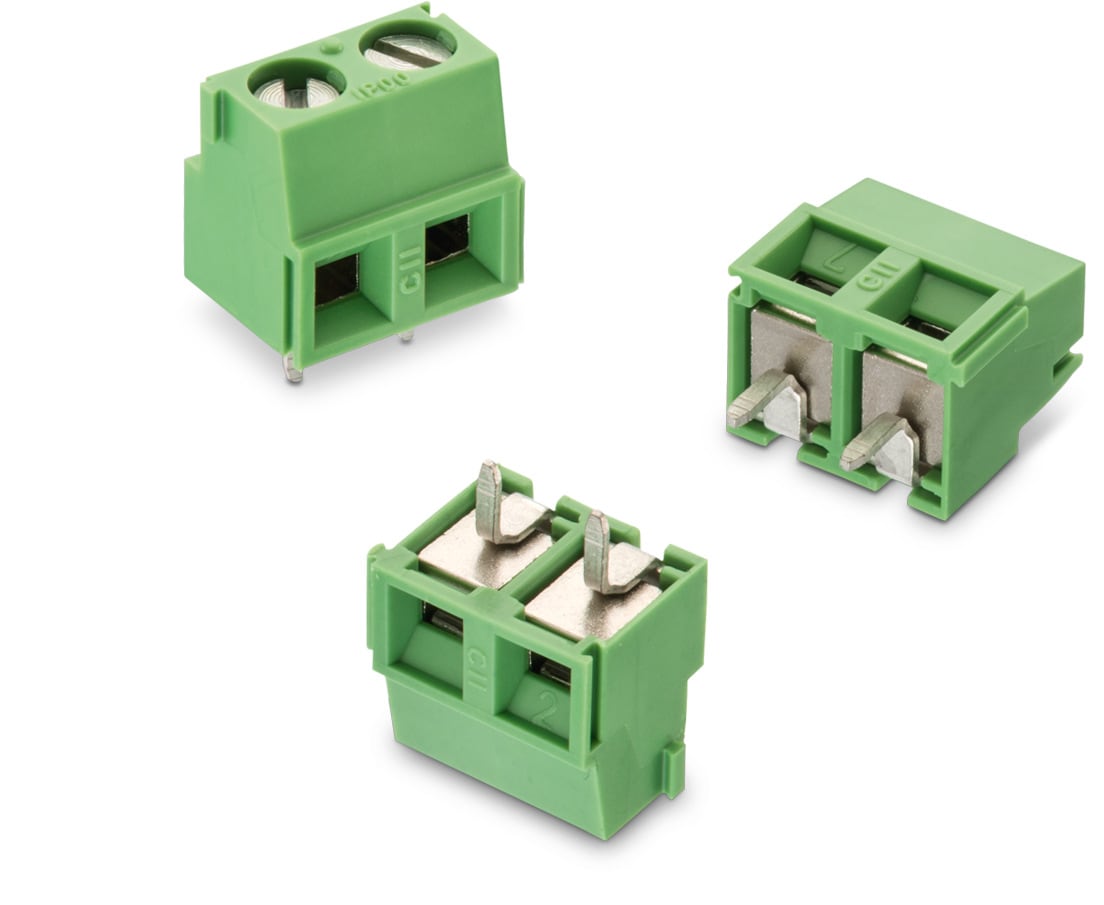

WR-TBL Series 2135 - 5.08 mm Horizontal Entry Modular w. Rising Cage Clamp | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	ROHS & Reach
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	14 A
I_R[VDE]	14 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	6
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40021366

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
691213510002	2, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 3D_691213510002 (rev1).pdf \| 67.8 KB IGS Download_IGES_691213510002 (rev1).iges \| 973.4 KB STP Download_STP_691213510002 (rev1).stp \| 396.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityYes	TypeHorizontal	Wire Section 14 to 30 (AWG) 2.08 to 0.0509 (mm²)	Design Kit 691001
691213510003	3, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 3D_691213510003 (rev1).pdf \| 79.4 KB IGS Download_IGES_691213510003 (rev1).iges \| 1.1 MB STP Download_STP_691213510003 (rev1).stp \| 465.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityYes	TypeHorizontal	Wire Section 14 to 30 (AWG) 2.08 to 0.0509 (mm²)	Design Kit –
