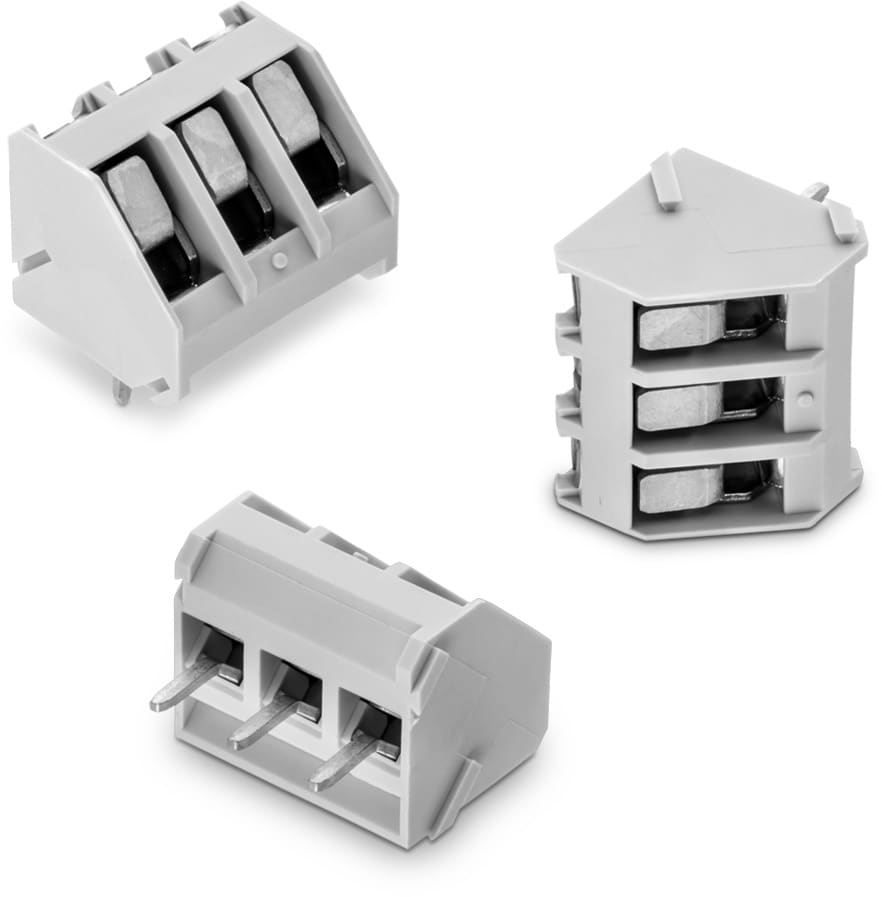

WR-TBL Series 2015 - 5.08 mm 45° Entry Modular w. Rising Cage Clamp

Kind Properties
Pitch 5.08 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Steel
Contact Plating Zinc
Contact Type Stamped
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance ROHS & Reach
Electrical Properties
IR UL 16 A
IR VDE 24 A
Working Voltage 130 V (AC); 300 V (AC)
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 130 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 1250 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 6
Screw M3
Certification
UL Approval E150931
VDE Approval 40022115
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins
(mm)
Wire Section Design Kit Samples
691201520002
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes 45° 2 12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691201520003
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes 45° 3 12 to 30 (AWG) 3.31 to 0.0509 (mm²) 691001
Order Code Data­sheet
691201520002
691201520003
