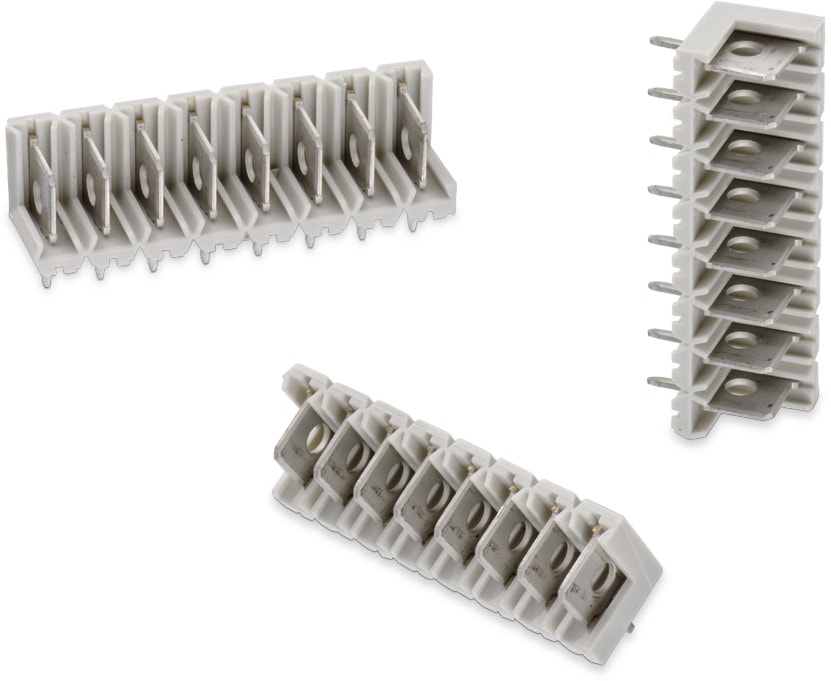

WR-TBL Series 386 - 5.00 mm Male PCB Header-Horizontal/Vertical Header Divisible | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel

Electrical Properties
I_R	14 A; 16 A
I_R[cULus]	14 A
I_R[VDE]	16 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E150931
VDE Approval	40023195

Application Notes

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.
