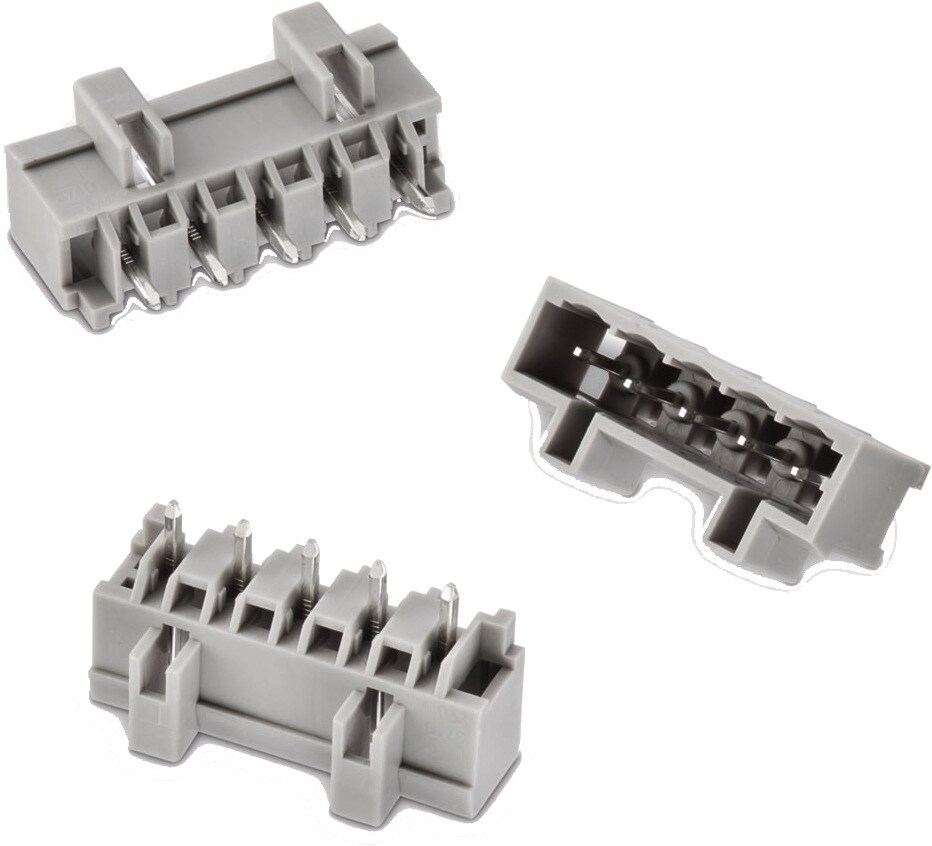

WR-TBL Series 371B - 5.00 mm Vertical Male PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	16 A
I_R[cULus]	16 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691371700002B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691371700002B (rev1).pdf \| 72.8 KB IGS 691371700002B (rev1).iges \| 704.2 KB STP 691371700002B (rev1).stp \| 153.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical
691371700003B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691371700003B (rev1).pdf \| 93.8 KB IGS 691371700003B (rev1).iges \| 913.1 KB STP 691371700003B (rev1).stp \| 195.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Vertical
691371700004B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691371700004B (rev1).pdf \| 114.2 KB IGS 691371700004B (rev1).iges \| 1.2 MB STP 691371700004B (rev1).stp \| 255.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical
691371700005B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691371700005B (rev1).pdf \| 133.4 KB IGS 691371700005B (rev1).iges \| 1.4 MB STP 691371700005B (rev1).stp \| 300.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Vertical
691371700006B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691371700006B (rev1).pdf \| 153.3 KB IGS 691371700006B (rev1).iges \| 1.6 MB STP 691371700006B (rev1).stp \| 339 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical
691371700007B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691371700007B (rev1).pdf \| 164 KB IGS Download_IGES_691371700007B (rev1).iges \| 1.8 MB STP Download_STP_691371700007B (rev1).stp \| 381.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Vertical
691371700008B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691371700008B (rev1).pdf \| 188 KB IGS 691371700008B (rev1).iges \| 2 MB STP 691371700008B (rev1).stp \| 422.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical
691371700012B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691371700012B (rev1).pdf \| 273.9 KB IGS Download_IGES_691371700012B (rev1).iges \| 2.8 MB STP Download_STP_691371700012B (rev1).stp \| 599.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical

Order Code	Datasheet
691371700002B	SPEC
691371700003B	SPEC
691371700004B	SPEC
691371700005B	SPEC
691371700006B	SPEC
691371700007B	SPEC
691371700008B	SPEC
691371700012B	SPEC
