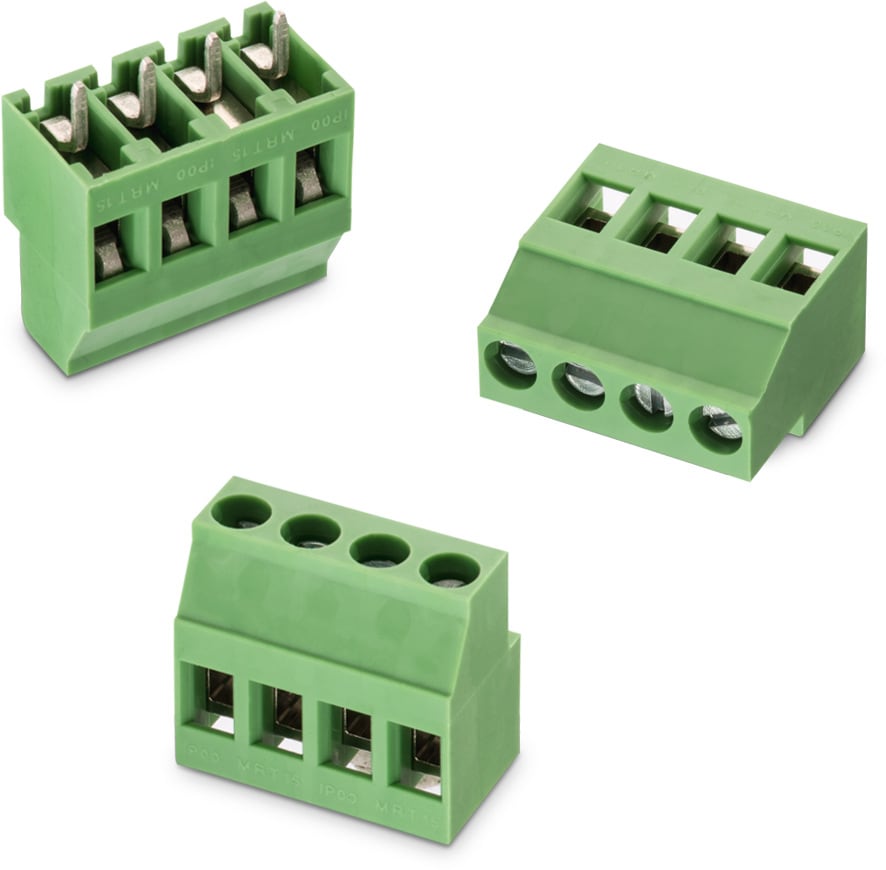

WR-TBL Series 2447 - 5.00 mm Horizontal Entry Modular w. Rising Cage Clamp | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS; ROHS & Reach
Pitch	5 mm

Material Properties
Insulator Material	PA6/66; PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel over Tin; Tin over Nickel
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 450 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	450 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC); 2500 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6; 6 (mm)
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40015450
VDE Approval	40015450 TYPE: MRT15

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
691244710004	SPEC4, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710004 (rev1).pdf \| 72.1 KB IGS Download_IGES_691244710004 (rev1).iges \| 1 MB STP Download_STP_691244710004 (rev1).stp \| 436.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit 691001	–Check availability
691244710005	SPEC5, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710005 (rev1).pdf \| 82.7 KB IGS Download_IGES_691244710005 (rev1).iges \| 1.2 MB STP Download_STP_691244710005 (rev1).stp \| 505.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –	–Check availability
691244710006	SPEC6, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710006 (rev1).pdf \| 92.8 KB IGS Download_IGES_691244710006 (rev1).iges \| 1.4 MB STP Download_STP_691244710006 (rev1).stp \| 574.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –	–Check availability
691244710007	SPEC7, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710007 (rev1).pdf \| 105.3 KB IGS Download_IGES_691244710007 (rev1).iges \| 1.5 MB STP Download_STP_691244710007 (rev1).stp \| 646 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –	–Check availability
691244710008	SPEC8, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710008 (rev1).pdf \| 119 KB IGS Download_IGES_691244710008 (rev1).iges \| 1.7 MB STP Download_STP_691244710008 (rev1).stp \| 717.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –	–Check availability
691244710009	SPEC9, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710009 (rev1).pdf \| 129.8 KB IGS Download_IGES_691244710009 (rev1).iges \| 1.9 MB STP Download_STP_691244710009 (rev1).stp \| 788.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –	–Check availability
691244710010	SPEC10, Rising Cage Clamp, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691244710010 (rev1).pdf \| 141.4 KB IGS Download_IGES_691244710010 (rev1).iges \| 2 MB STP Download_STP_691244710010 (rev1).stp \| 860.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityYes	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –	–Check availability
