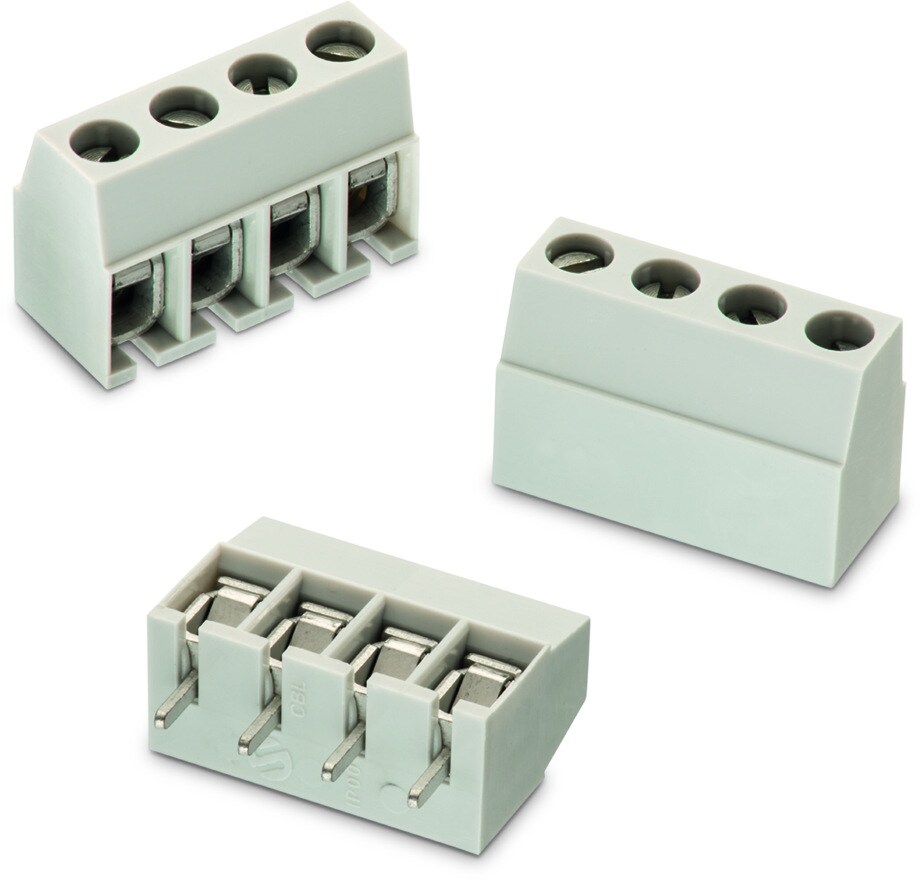

WR-TBL Series 1337 - Wire Protector 5.00mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +85 °C
Pitch	5 mm

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	18 A
I_R[VDE]	20 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	7 (mm)
Screw	M2.5

Certification
cULus Approval	E150931
VDE Approval	40021373

Packaging Properties
Packaging	Box

Application Notes

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section
691133710004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710004 (rev1).pdf \| 128.9 KB IGS Downloads_IGES_691133710004 (rev1).iges \| 1.9 MB STP Downloads_STP_691133710004 (rev1).stp \| 497 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)
691133710005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710005 (rev1).pdf \| 129.1 KB IGS Downloads_IGES_691133710005 (rev1).iges \| 1.9 MB STP Downloads_STP_691133710005 (rev1).stp \| 497.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)
691133710006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710006 (rev1).pdf \| 129.3 KB IGS Downloads_IGES_691133710006 (rev1).iges \| 1.9 MB STP Downloads_STP_691133710006 (rev1).stp \| 498.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)
691133710007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710007 (rev1).pdf \| 129.5 KB IGS Downloads_IGES_691133710007 (rev1).iges \| 1.9 MB STP Downloads_STP_691133710007 (rev1).stp \| 499.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)
691133710008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710008 (rev1).pdf \| 129.6 KB IGS Download_IGES_691133710008 (rev1).iges \| 1.9 MB STP Download_STP_691133710008 (rev1).stp \| 499.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)
691133710009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710009 (rev1).pdf \| 129.8 KB IGS Download_IGES_691133710009 (rev1).iges \| 1.9 MB STP Download_STP_691133710009 (rev1).stp \| 500.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)
691133710010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691133710010 (rev1).pdf \| 130 KB IGS Downloads_IGES_691133710010 (rev1).iges \| 1.9 MB STP Downloads_STP_691133710010 (rev1).stp \| 501.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Wire Protector	PCB	No	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)

Order Code	Datasheet
691133710004	SPEC
691133710005	SPEC
691133710006	SPEC
691133710007	SPEC
691133710008	SPEC
691133710009	SPEC
691133710010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
