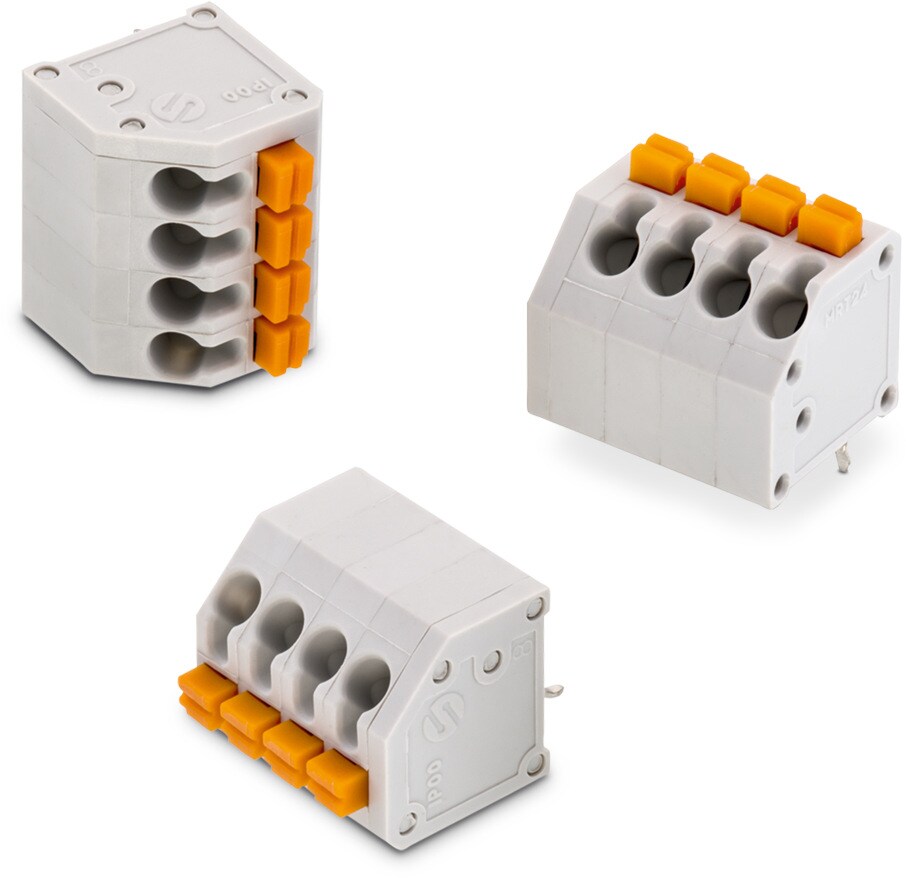

WR-TBL Series 4183 - 3.81 mm 45° Cable Entry Screwless

Kind Properties
Pitch3.81 mm
Material Properties
Insulator MaterialPA6/66
Insulator Flammability RatingUL94 V-0
Insulator ColorGrey
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-30 up to +120 °C
ComplianceLead free / RoHS
Electrical Properties
IR cULus4 A
IR VDE4 A
Working Voltage250 V (AC); 300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]250 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2000 V (AC)
Contact Resistance20 mΩ
Mechanical Properties
Wire Strip Length7 (mm)
Wire Properties
Solid Wire Section (AWG)16 to 30 (AWG)
Solid Wire Section (Metric)1.31 to 0.0509 (mm²)
Stranded Wire Section (AWG)16 to 30 (AWG)
Stranded Wire Section (Metric)1.31 to 0.0509 (mm²)
Certification
cULus ApprovalE150931
VDE Approval40013441
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691418320002SPEC
6 files 2 Screwless PCB No 45° 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691418320003SPEC
6 files 3 Screwless PCB No 45° 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691418320004SPEC
6 files 4 Screwless PCB No 45° 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691418320005SPEC
6 files 5 Screwless PCB No 45° 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691418320006SPEC
6 files 6 Screwless PCB No 45° 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
Order Code Data­sheet
691418320002SPEC
691418320003SPEC
691418320004SPEC
691418320005SPEC
691418320006SPEC
