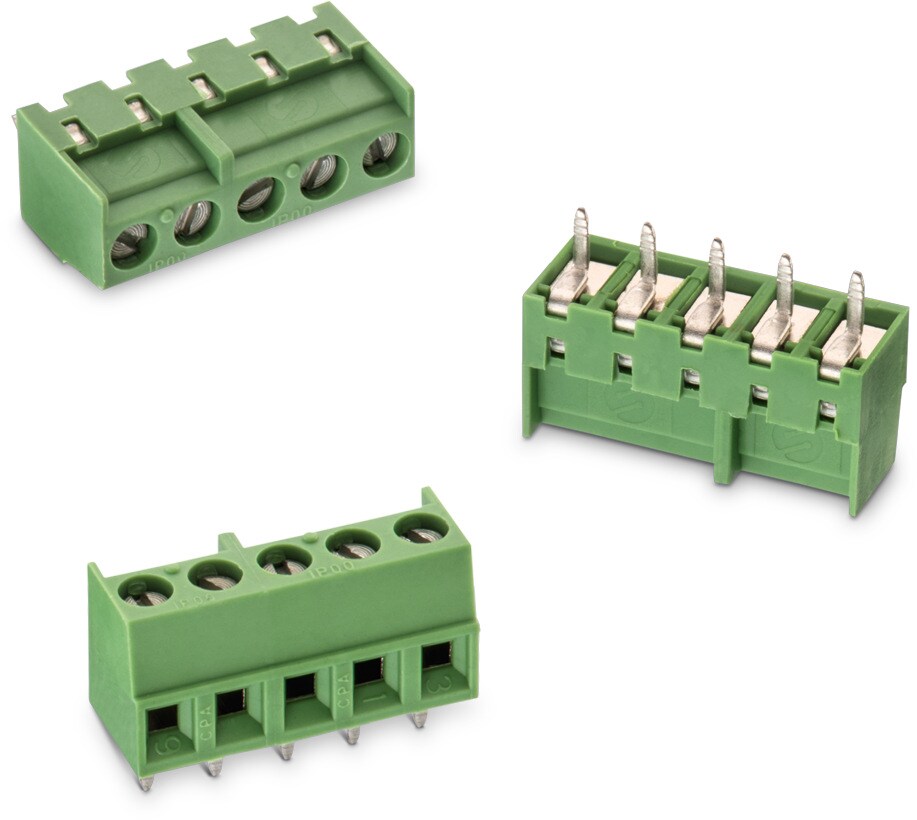

WR-TBL Serie 2433 - 3.81 mm Horizontal Entry Modular w. Rising Cage Clamp

Kind Properties
Pitch 3.81 mm
Material Properties
Insulator Material PA6/66; PA66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper Alloy
Contact Plating Nickel over Tin; Tin over Nickel
Contact Type Stamped
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS; ROHS & Reach
Electrical Properties
IR UL 10 A
IR VDE 10 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 130 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 1250 V (AC)
Contact Resistance 20 mΩ
Contact Resistance [UL] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6; 6 (mm)
Screw M2
Certification
UL Approval E150931; E150931 CAT. N°: CPA (3); E150931 CAT. N°: CPA(3); E150931 CAT.N°: CPA (3)
VDE Approval 40015434
VDE Approval 40015434 TYPE: CPA
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691243310004
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 4 30 to 16 (AWG) 0.05 to 1.31 (mm²) 691001
691243310005
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 5 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243310006
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 5 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243310007
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 7 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243310008
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 8 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243310009
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 9 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243310010
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 10 30 to 16 (AWG) 0.05 to 1.31 (mm²)
Order Code SPEC
691243310004
691243310005
691243310006
691243310007
691243310008
691243310009
691243310010
