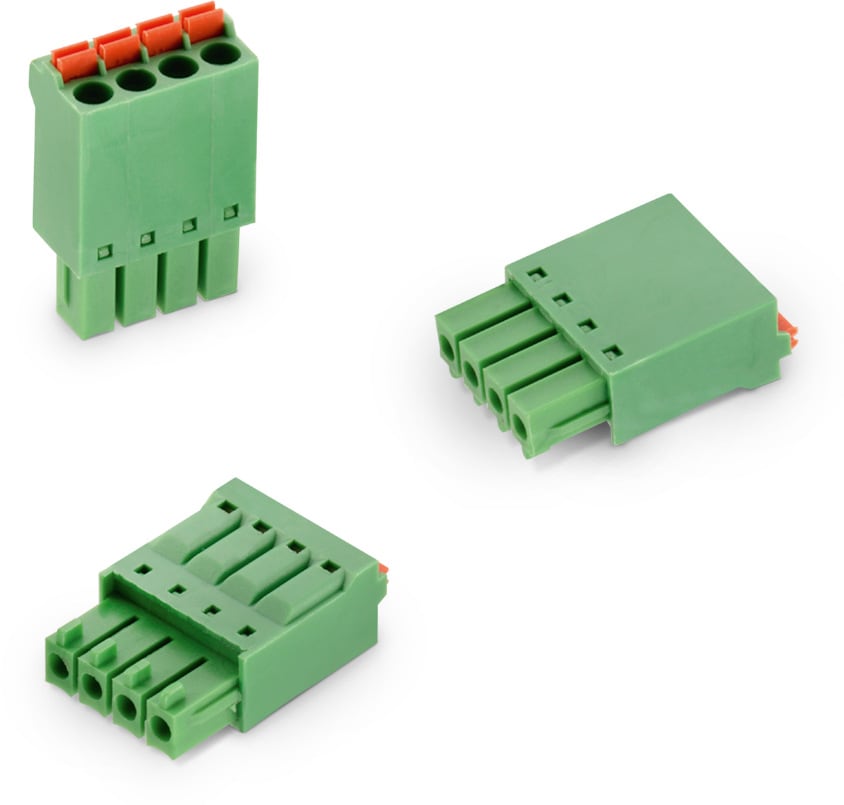

WR-TBL Series 3041 - 3.50 mm Screwless Plug Vertical Entry Low Profile| Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green/Orange
Contact Material	Copper Alloy
Contact Plating	Tin
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
I_R[cULus]	12 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	16 to 24 (AWG)
Solid Wire Section (Metric)	1.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	16 to 24 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.205 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691304100002	SPEC	3 files CAD files ZIP 3D 3D_691304100002 (rev1).pdf \| 207.7 KB IGS Download_IGES_691304100002 (rev1).iges \| 2.8 MB STP Download_STEP_691304100002 (rev1).stp \| 626.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100003	SPEC	3 files CAD files ZIP 3D 3D_691304100003 (rev1).pdf \| 267 KB IGS Download_IGES_691304100003 (rev1).iges \| 3.7 MB STP Download_STEP_691304100003 (rev1).stp \| 823.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	691002
691304100004	SPEC	3 files CAD files ZIP 3D 3D_691304100004 (rev1).pdf \| 329.4 KB IGS Download_IGES_691304100004 (rev1).iges \| 4.6 MB STP Download_STEP_691304100004 (rev1).stp \| 1022.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100005	SPEC	3 files CAD files ZIP 3D 3D_691304100005 (rev1).pdf \| 390.4 KB IGS Download_IGES_691304100005 (rev1).iges \| 5.5 MB STP Download_STEP_691304100005 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100006	SPEC	3 files CAD files ZIP 3D 3D_691304100006 (rev1).pdf \| 463.5 KB IGS Download_IGES_691304100006 (rev1).iges \| 6.4 MB STP Download_STEP_691304100006 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100007	SPEC	3 files CAD files ZIP 3D 3D_691304100007 (rev1).pdf \| 524.2 KB IGS Download_IGES_691304100007 (rev1).iges \| 7.2 MB STP Download_STEP_691304100007 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100008	SPEC	3 files CAD files ZIP 3D 3D_691304100008 (rev1).pdf \| 586.2 KB IGS Download_IGES_691304100008 (rev1).iges \| 8.1 MB STP Download_STEP_691304100008 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100009	SPEC	3 files CAD files ZIP 3D 3D_691304100009 (rev1).pdf \| 644.8 KB IGS IGES_691304100009 (rev1).iges \| 9 MB STP STP_691304100009 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100010	SPEC	3 files CAD files ZIP 3D 3D_691304100010 (rev1).pdf \| 699.9 KB IGS IGES_691304100010 (rev1).iges \| 10 MB STP STP_691304100010 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–

Order Code	Datasheet
691304100002	SPEC
691304100003	SPEC
691304100004	SPEC
691304100005	SPEC
691304100006	SPEC
691304100007	SPEC
691304100008	SPEC
691304100009	SPEC
691304100010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
