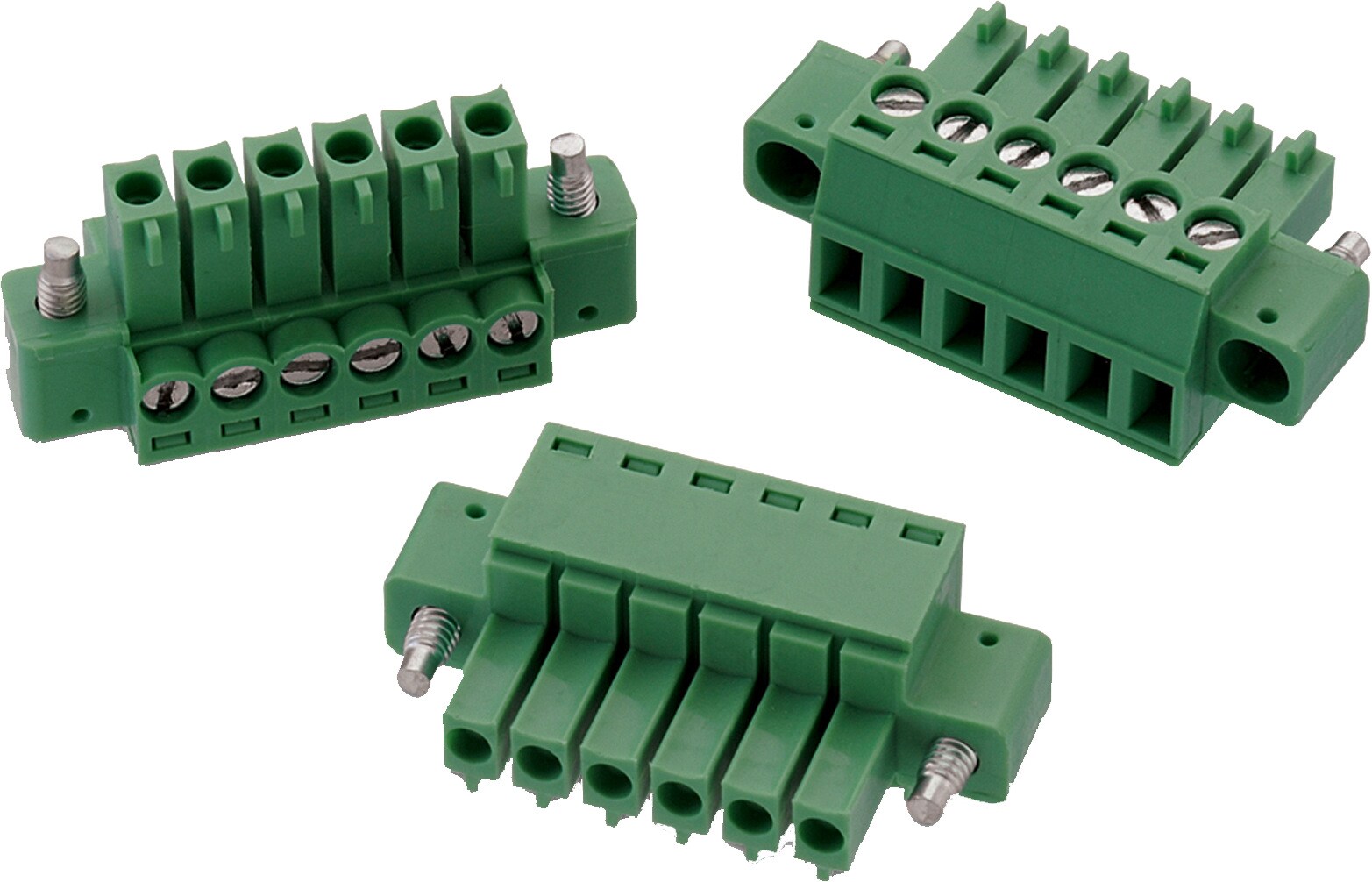

WR-TBL Series 3641 - 3.50 mm Vertical with Flanges

Kind Properties
Pitch 3.5 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Phosphor Bronze
Contact Plating Tin over Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Phosphor Bronze
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 10 A
IR VDE 10.5 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Working Voltage [VDE] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6 up to 7 (mm)
Screw M2
Wire Properties
Solid Wire Section (AWG) 26 to 16 (AWG)
Solid Wire Section (Metric) 0.129 to 1.31 (mm²)
Stranded Wire Section (AWG) 26 to 16 (AWG)
Stranded Wire Section (Metric) 0.129 to 1.31 (mm²)
Certification
cULus Approval E315414
VDE Approval 40023195

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691364100002
STE 3D IGS Pluggable Cable No Vertical 2 26 to 16 (AWG) 0.129 to 1.31 (mm²)
691364100003
STE 3D IGS Pluggable Cable No Vertical 3 26 to 16 (AWG) 0.129 to 1.31 (mm²) 691001
691364100004
STE 3D IGS Pluggable Cable No Vertical 4 26 to 16 (AWG) 0.129 to 1.31 (mm²)
691364100005
STE 3D IGS Pluggable Cable No Vertical 5 26 to 16 (AWG) 0.129 to 1.31 (mm²)
691364100006
STE 3D IGS Pluggable Cable No Vertical 6 26 to 16 (AWG) 0.129 to 1.31 (mm²)
691364100008
STE 3D IGS Pluggable Cable No Vertical 8 26 to 16 (AWG) 0.129 to 1.31 (mm²)
691364100007
IGE STE 3D Pluggable Cable No Vertical 7 26 to 16 (AWG) 0.129 to 1.31 (mm²)
691364100012
IGE STE 3D Pluggable Cable No Vertical 12 26 to 16 (AWG) 0.129 to 1.31 (mm²)
