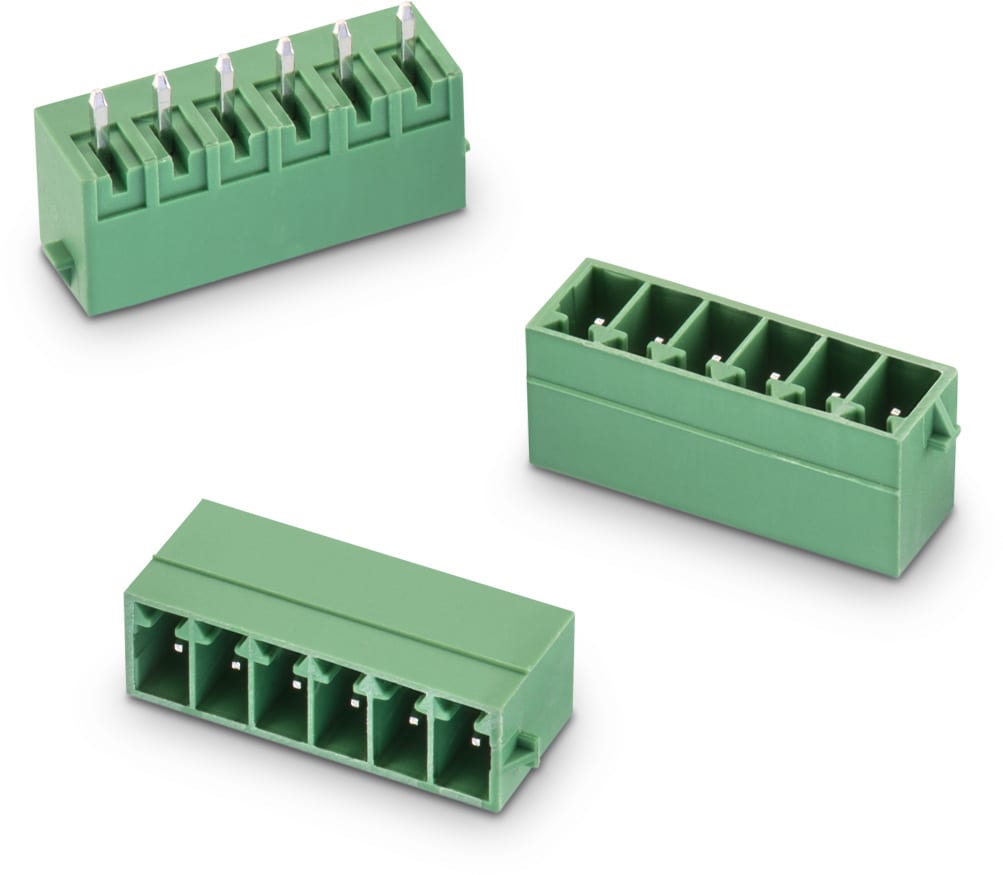

WR-TBL Series 3051 - 3.50 mm Vertical PCB Header

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceLead free / RoHS
Pitch3.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialCopper Alloy
Contact PlatingTin
Electrical Properties
IR12 A
IR UL12 A
Working Voltage300 V (AC)
Working Voltage [UL]300 V (AC)
Withstanding Voltage [UL]2500 V (AC)
Contact Resistance20 mΩ
Certification
UL ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples
691305130002SPEC
6 files 2 Pluggable PCB No Vertical
691305130003SPEC
6 files 3 Pluggable PCB No Vertical
691305130004SPEC
6 files 4 Pluggable PCB No Vertical
691305130005SPEC
6 files 5 Pluggable PCB No Vertical
691305130006SPEC
6 files 6 Pluggable PCB No Vertical
691305130007SPEC
6 files 7 Pluggable PCB No Vertical
691305130008SPEC
6 files 8 Pluggable PCB No Vertical
691305130012SPEC
6 files 12 Pluggable PCB No Vertical
Order Code Data­sheet
691305130002SPEC
691305130003SPEC
691305130004SPEC
691305130005SPEC
691305130006SPEC
691305130007SPEC
691305130008SPEC
691305130012SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.

  • Highly customized products
  • Over 2000 standard articles
  • Available from stock without MOQ
  • Personalized modifications of standard parts for small quantities
  • Color & printing possibilities with MOQ for mass production

Personalized Modifications of Standard Terminal Blocks

Ink Jet

Printing for your terminal blocks (e.g. coding, personalization)

Coding

Installation of coding pins according to keying specification

Color Coding

For selected series according to your specifications (412B / 412MB / 413B)

Assembly

Rapid assembly of pin numbers according to your needs
