OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyTerminal BlocksProduct sub-familyRising Cage ClampPitchPitch 3.50 mmProduct seriesWR-TBL Series 2431 - 3.50 mm Vertical Entry Modular w. Rising Cage Clamp

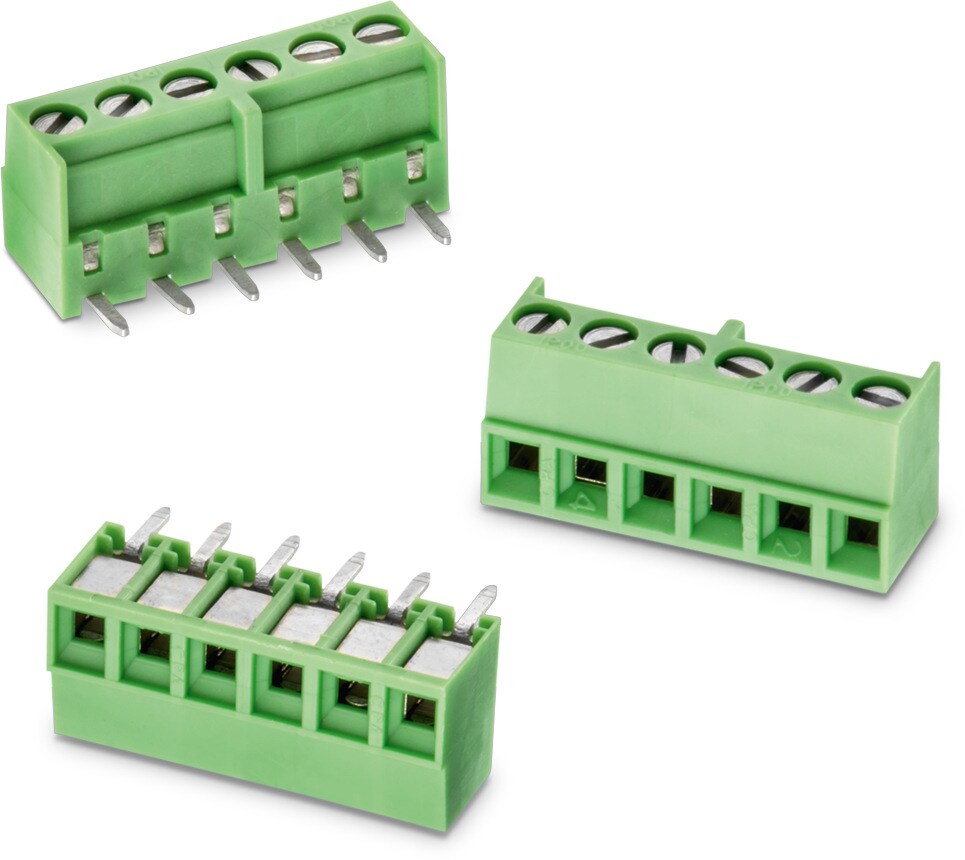

WR-TBL Series 2431 - 3.50 mm Vertical Entry Modular w. Rising Cage Clamp

General Information
Operating Temperature-30 °C up to +120 °C
ComplianceRoHS
Pitch3.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialCopper Alloy
Contact PlatingNickel over Tin
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy
Electrical Properties
IR cULus10 A
IR VDE10 A
Working Voltage130 V (AC); 300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]130 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]1250 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 (mm)
ScrewM2
Certification
cULus ApprovalE150931
VDE Approval40015434
VDE Approval40015434 TYPE: CPA
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691243100004SPEC
6 files 4 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243100005SPEC
6 files 5 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243100006SPEC
6 files 6 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243100007SPEC
6 files 7 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243100008SPEC
6 files 8 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243100009SPEC
6 files 9 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243100010SPEC
5 files 10 Rising Cage Clamp PCB No Vertical 30 to 16 (AWG) 0.05 to 1.31 (mm²)
Order Code Data­sheet
691243100004SPEC
691243100005SPEC
691243100006SPEC
691243100007SPEC
691243100008SPEC
691243100009SPEC
691243100010SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
