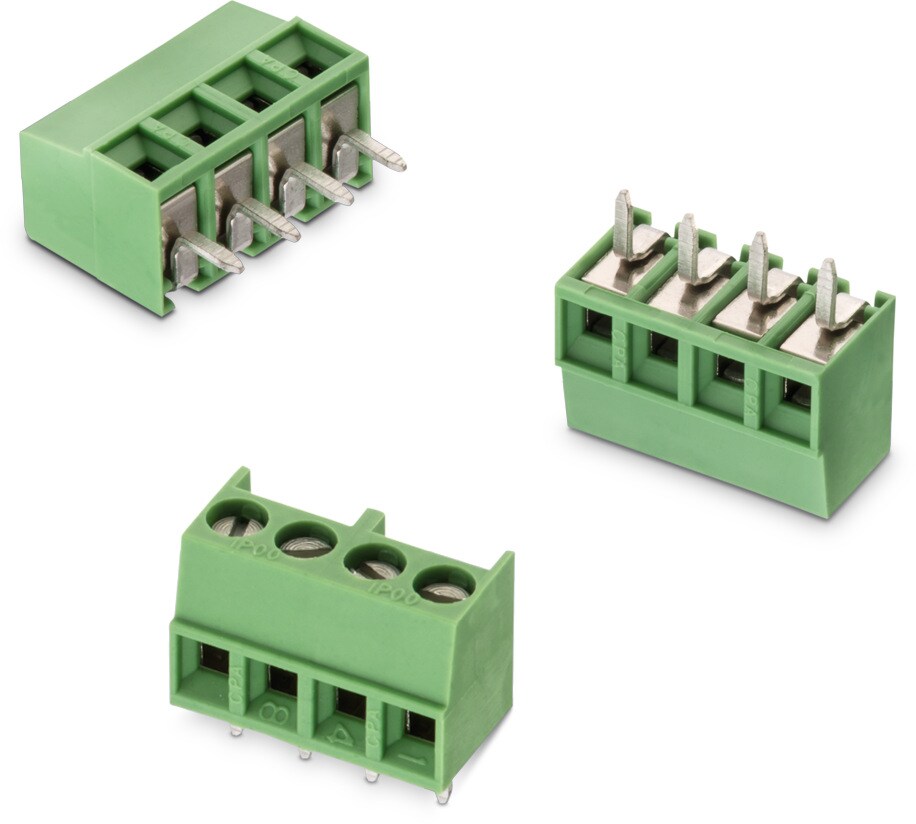

WR-TBL Serie 2431 - 3.50 mm Horizontal cable entry with rising clamp

Kind Properties
Pitch 3.5 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper Alloy
Contact Plating Nickel over Tin
Contact Type Stamped
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 10 A
IR VDE 10 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 130 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 1250 V (AC)
Contact Resistance 20 mΩ
Contact Resistance [UL] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6 (mm)
Screw M2
Certification
UL Approval E150931 CAT. N°: CPA (3)
VDE Approval 40015434
VDE Approval 40015434 TYPE: CPA
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691243110004
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 4 30 to 16 (AWG) 0.05 to 1.31 (mm²) 691001
691243110005
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 5 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243110006
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 6 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243110007
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 7 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243110008
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 8 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243110009
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 9 30 to 16 (AWG) 0.05 to 1.31 (mm²)
691243110010
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 10 30 to 16 (AWG) 0.05 to 1.31 (mm²)
Order Code SPEC
691243110004
691243110005
691243110006
691243110007
691243110008
691243110009
691243110010
Samples
Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
