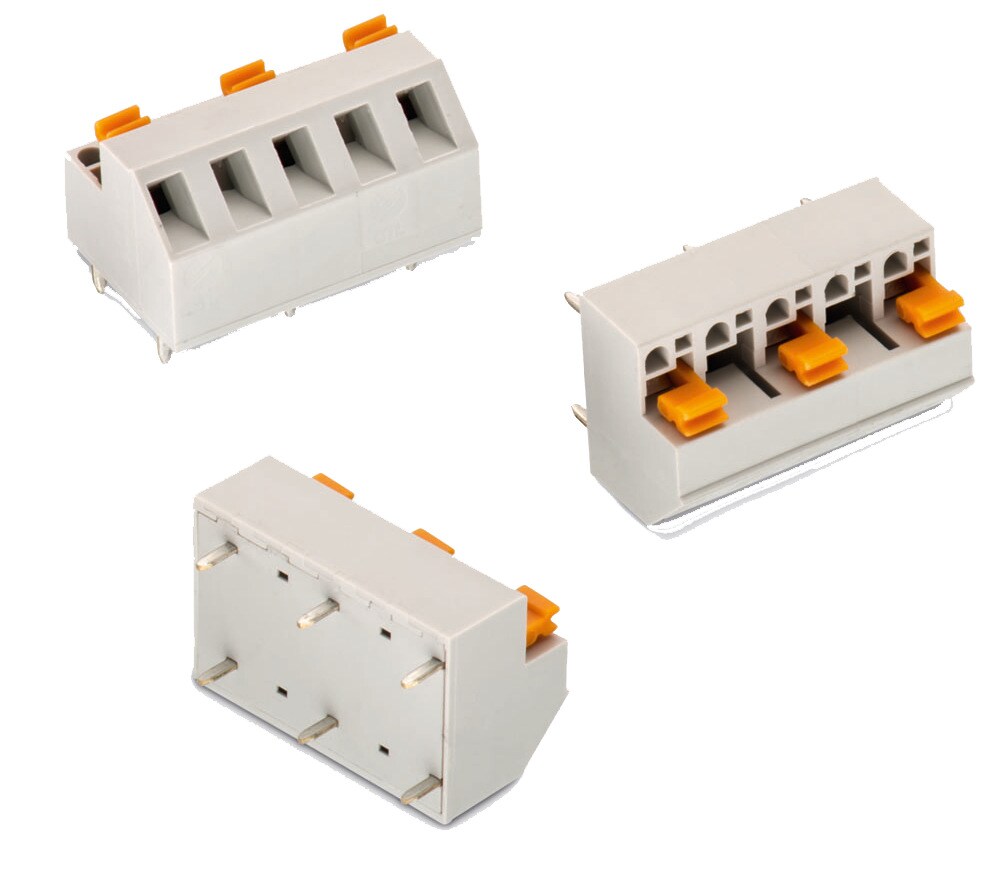

WR-TBL Series 4156 - 10.16 mm Screwless 45° Entry

Kind Properties
Pitch 10.16 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material INOX Steel
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance RoHS
Electrical Properties
IR UL 10 A
IR VDE 10 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance [UL] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 10
Wire Properties
Solid Wire Section (AWG) 16 to 22 (AWG)
Solid Wire Section (Metric) 1.31 to 0.326 (mm²)
Stranded Wire Section (AWG) 16 to 22 (AWG)
Stranded Wire Section (Metric) 1.31 to 0.326 (mm²)
Certification
cULus Approval E315414
VDE Approval 40023402
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691415620002
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 2 16 to 22 (AWG) 1.31 to 0.326 (mm²) 691001
691415620003
ALT EAG CAD Screwless PCB No 45° 3 16 to 22 (AWG) 1.31 to 0.326 (mm²)
Order Code Data­sheet
691415620002
691415620003
