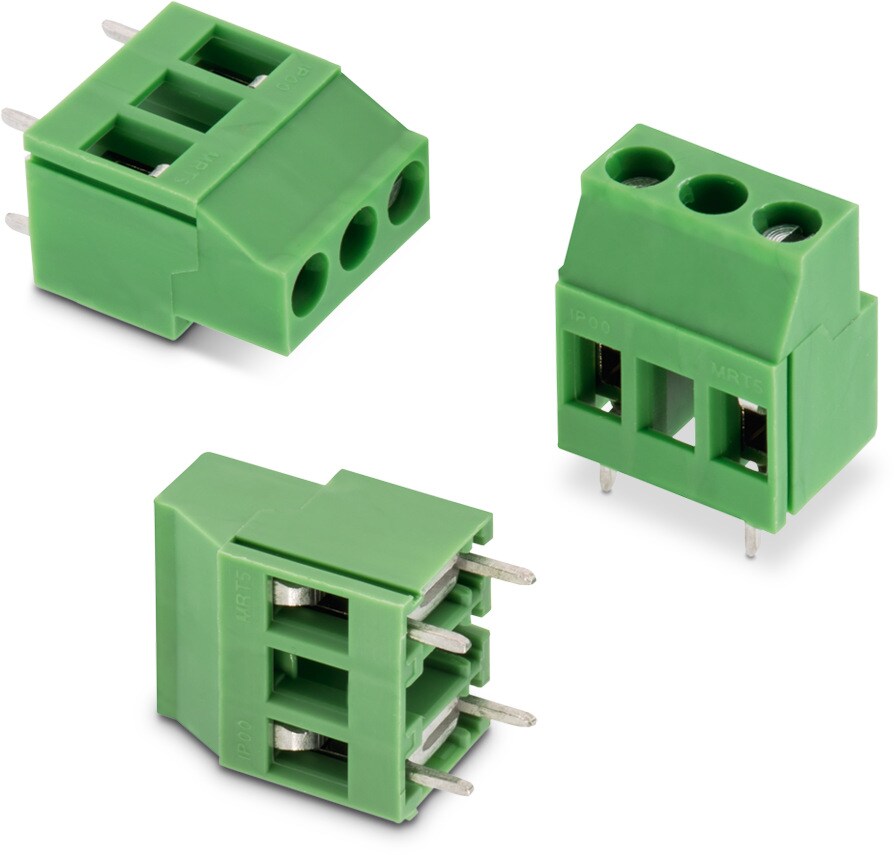

WR-TBL Series 2546 - 10.16 mm Horizontal Cable Entry Rising Cage | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	10.16 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel (Ni)
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40021392

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section
691254610001	1, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691254610001 (rev1).pdf \| 45.9 KB IGS 691254610001 (rev1).iges \| 571.6 KB STP 691254610001 (rev1).stp \| 225.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins1	PCB/Cable/PanelPCB	ModularityYes	TypeHorizontal	Wire Section 12 to 30 (AWG) 3.31 to 0.05 (mm²)
691254610101	1, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691254610101_1 (rev1).pdf \| 74.2 KB IGS 691254610101 (rev1).iges \| 1 MB STP 691254610101 (rev1).stp \| 251.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins1	PCB/Cable/PanelPCB	ModularityYes	TypeHorizontal	Wire Section 12 to 30 (AWG) 3.31 to 0.05 (mm²)
691254610002	2, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691254610002 (rev1).pdf \| 70.2 KB IGS 691254610002 (rev1).iges \| 995 KB STP 691254610002 (rev1).stp \| 389.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityYes	TypeHorizontal	Wire Section 12 to 30 (AWG) 3.31 to 0.05 (mm²)
