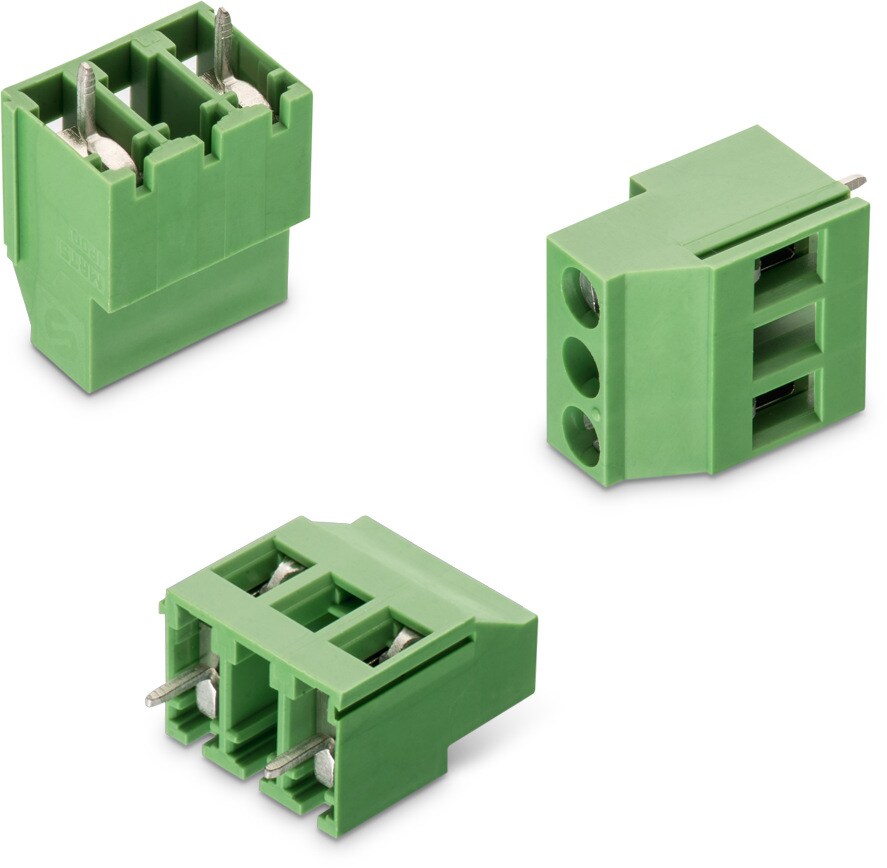

WR-TBL Series 2536 - 10.16 mm Horizontal Entry Modular w. Rising Cage Clamp

Kind Properties
Pitch10.16 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingTin over Nickel
Contact TypeStamped
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy
General Information
Operating Temperature-30 up to +120 °C
ComplianceROHS & Reach
Electrical Properties
IR cULus16 A
IR VDE24 A
Working Voltage300 V (AC); 450 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]450 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance20 mΩ
Mechanical Properties
Wire Strip Length6
ScrewM3
Certification
cULus ApprovalE150931
VDE Approval40021392
Packaging Properties
PackagingBox
