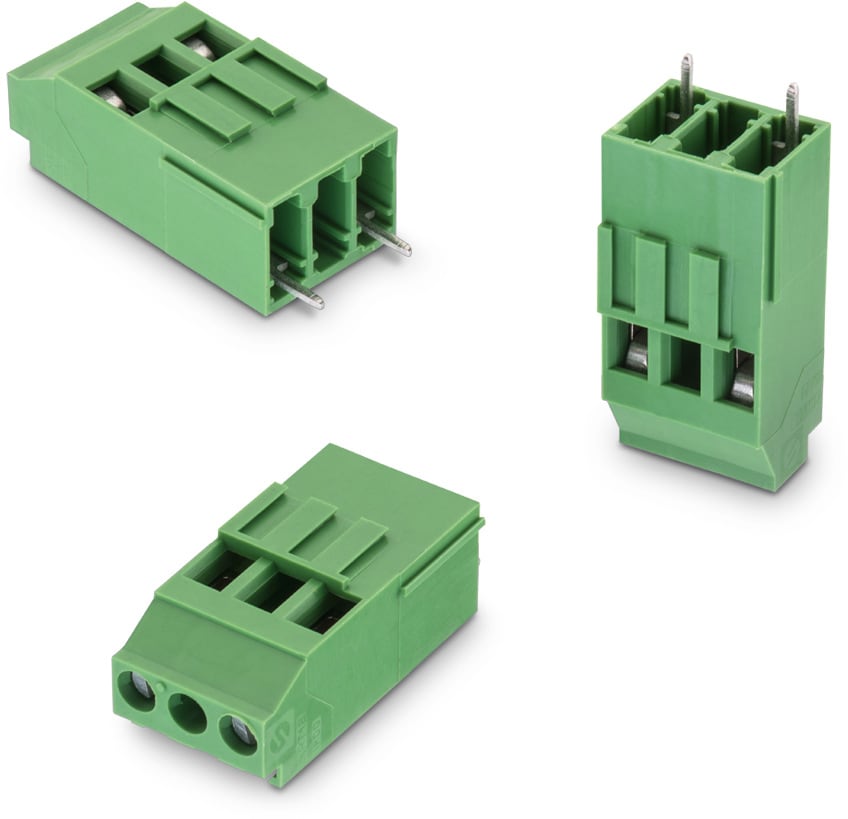

WR-TBL Series 2496 - 10.16 mm Horiz. Entry w. Rising Cage Clamp

Kind Properties
Pitch 10.16 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper Alloy
Contact Plating Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy with Tin over Nickel
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 20 A
IR VDE 20 A
Working Voltage 300 V (AC); 750 V (AC)
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 6 (mm)
Screw M3
Certification
UL Approval E150931 Cat No. MRT18 (5)
VDE Approval 40022114 Type MRT18
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins
(mm)
Wire Section Samples
691249610001
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes Horizontal 1 12 to 30 (AWG) 3.31 to 0.05 (mm²)
691249610002
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes Horizontal 2 12 to 30 (AWG) 3.31 to 0.05 (mm²)
691249610101
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB Yes Horizontal 1 12 to 30 (AWG) 3.31 to 0.05 (mm²)
Order Code Data­sheet
691249610001
691249610002
691249610101
