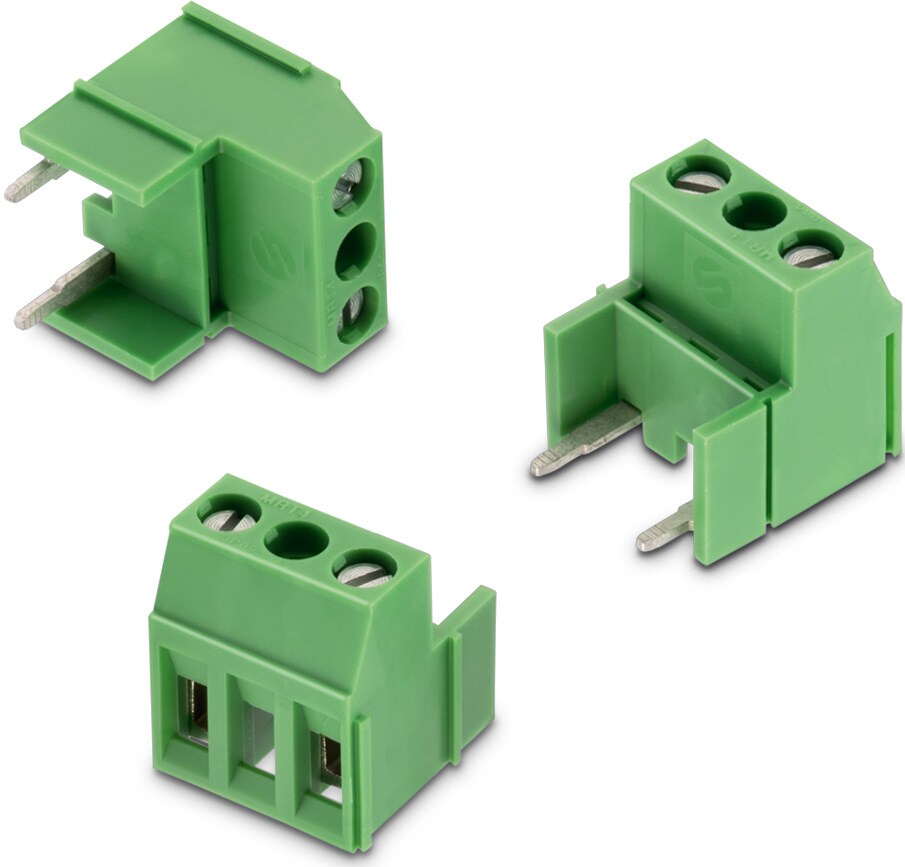

WR-TBL Series 2528 - 10.00 mm Vertical Entry Modular w. Rising Clamp| Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	10 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Matte Tin over Nickel; Nickel (Ni)
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [cULus]	1600 V (AC); 3000 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40021393

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section
691252800001	SPEC	4 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 403.3 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	1	Rising Cage Clamp	PCB	Yes	Vertical	12 to 30 (AWG) 3.31 to 0.05 (mm²)
691252800101	SPEC	4 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 403.3 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	1	Rising Cage Clamp	PCB	Yes	Vertical	12 to 30 (AWG) 3.31 to 0.05 (mm²)
691252800002	SPEC	4 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 403.3 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	Vertical	12 to 30 (AWG) 3.31 to 0.05 (mm²)

Order Code	Datasheet
691252800001	SPEC
691252800101	SPEC
691252800002	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
