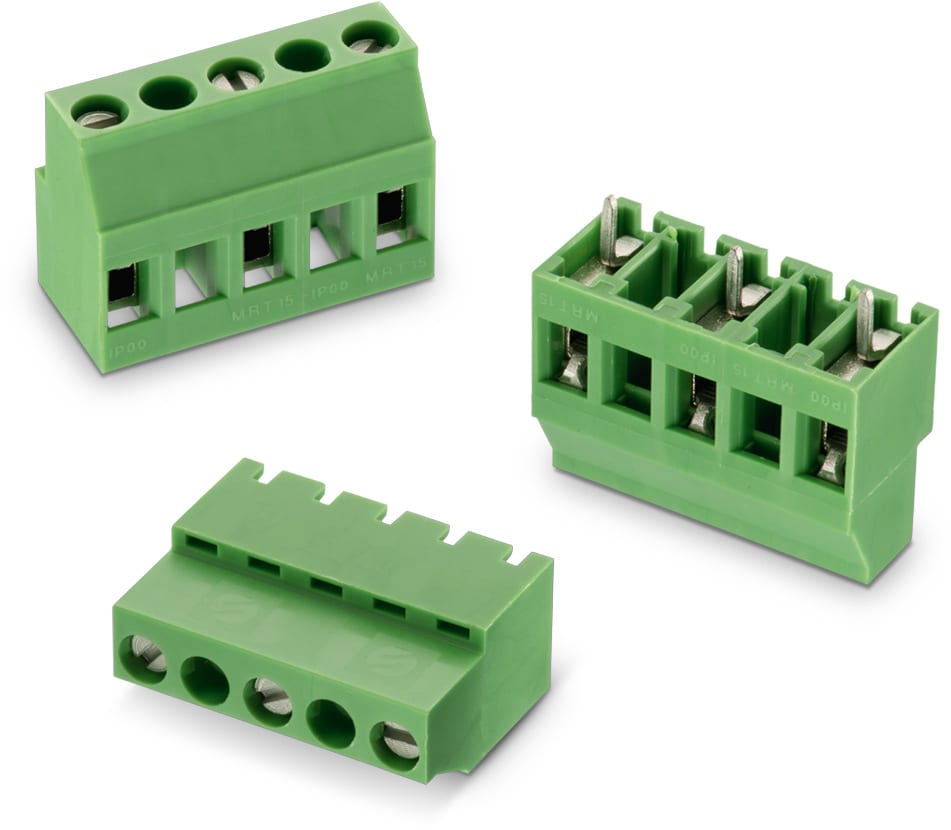

WR-TBL Serie 2448 - 10.00 mm Horizontal Entry Modular w. Rising Cage Clamp

Kind Properties
Pitch 10 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Tin over Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance RoHS
Electrical Properties
IR UL 16 A
IR VDE 24 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance [UL] 20 mΩ
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6
Screw M3
Certification
cULus Approval E150931
VDE Approval 40015450
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691244810003
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Horizontal 3 12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691244810004
IGE STE 3D ALT EAG CAD Rising Cage Clamp PCB No Horizontal 4 12 to 30 (AWG) 3.31 to 0.0509 (mm²)
Order Code SPEC
691244810003
691244810004
