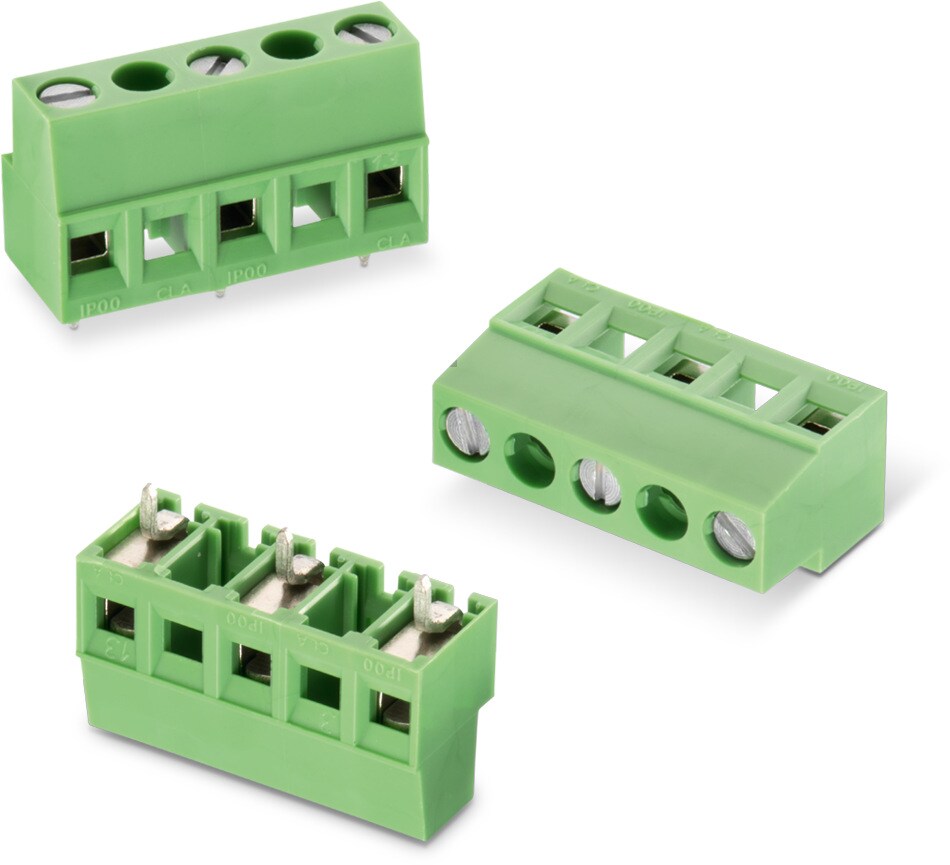

WR-TBL Series 2428 - 10.00 mm Horizontal Entry Modular w. Rising Clamp | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS
Pitch	10 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Nickel (Ni)
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	14 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6
Screw	M3

Certification
cULus Approval	E315414
VDE Approval	40021356

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
691242810003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691242810003 (rev1).pdf \| 81.2 KB IGS Download_IGES_691242810003 (rev1).iges \| 1.1 MB STP Download_STP_691242810003 (rev1).stp \| 426.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)
691242810004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691242810004 (rev1).pdf \| 101.4 KB IGS Download_IGES_691242810004 (rev1).iges \| 1.4 MB STP Download_STP_691242810004 (rev1).stp \| 525.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Rising Cage Clamp	PCB	No	Horizontal	12 to 30 (AWG) 3.31 to 0.0509 (mm²)

Order Code	Datasheet
691242810003	SPEC
691242810004	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
