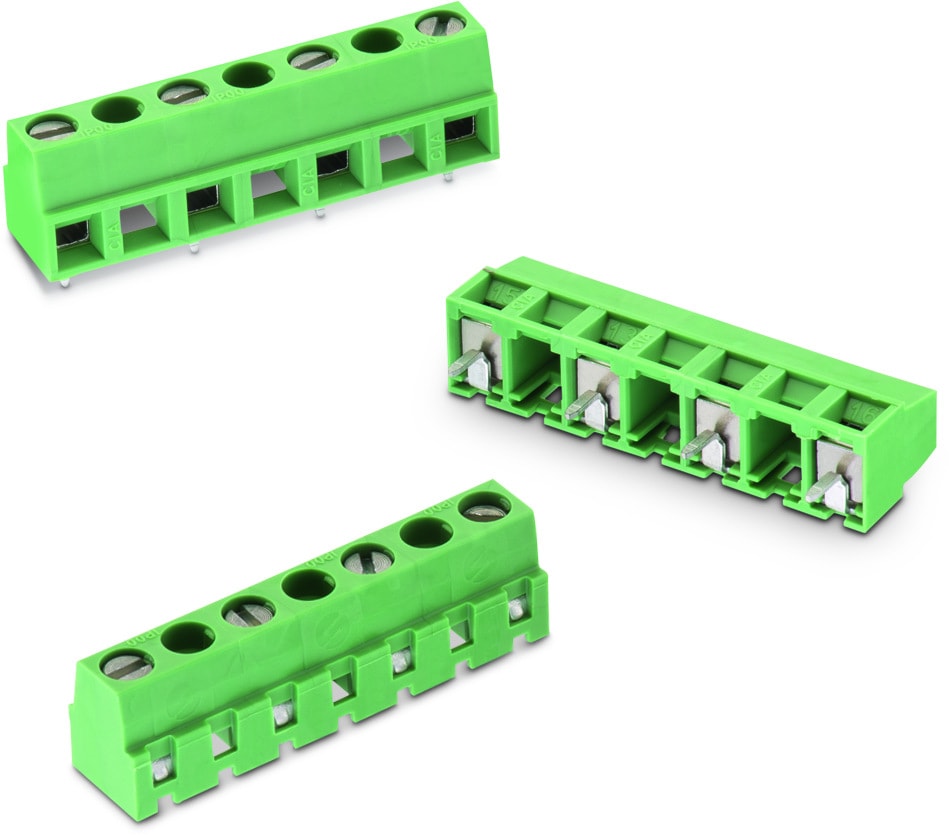

WR-TBL Serie 2418 - 10.00 mm Horizontal Entry w. Rising Cage Clamp

Kind Properties
Pitch 10 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper Alloy
Contact Plating Nickel
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy with Tin over Nickel
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 14 A
IR VDE 14 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 6 (mm)
Screw M3
Certification
UL Approval E150931 Cat No. CIA (4)
VDE Approval 40021365 Type CIA
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691241810008
IGE STE 3D ALT EAG 110 VAC PCB No Horizontal 8 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810003
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 3 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810004
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 4 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810005
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 5 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810006
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 6 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810007
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 7 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810009
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 9 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
691241810010
IGE STE 3D ALT EAG Rising Cage Clamp PCB No Horizontal 10 14 to 30 (AWG) 2.08 to 0.0509 (mm²)
Order Code SPEC
691241810008
691241810003
691241810004
691241810005
691241810006
691241810007
691241810009
691241810010
