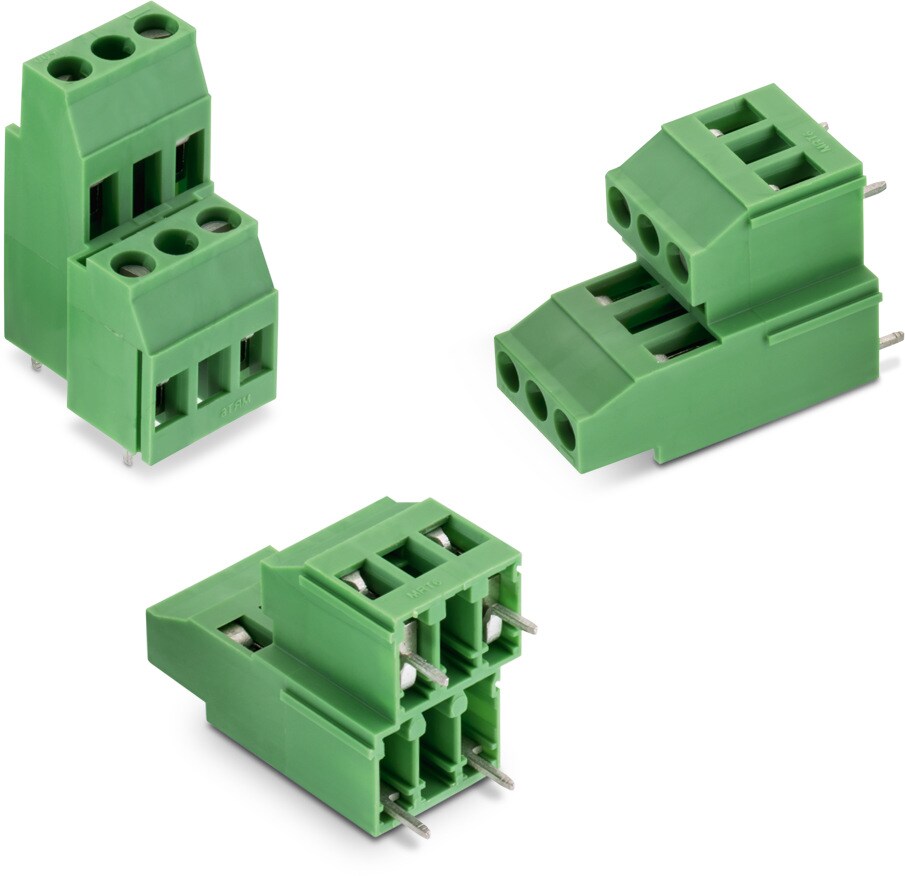

Series 2338 - 10.00 mm Horizontal Cable Entry Rising Cage | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyTerminal Blocks Product sub-seriesRising Cage Clamp Product filter_webPitch 10.00 mm Product seriesSeries 2338 - 10.00 mm Horizontal Cable Entry Rising Cage

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	10 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Matte Tin over Nickel; Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [cULus]	1600 V (AC); 3000 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40021395; 40021396

Packaging Properties
Packaging	Box

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
691233810002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 691233810002 (rev1).pdf \| 114.9 KB IGS 691233810002 (rev1).iges \| 1.7 MB STP 691233810002 (rev1).stp \| 654.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	Horizontal	12 to 30 (AWG) 3.31 to 0.05 (mm²)
691233810102	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 691233810102_1 (rev1).pdf \| 152.4 KB IGS 691233810102 (rev1).iges \| 2.2 MB STP 691233810102 (rev1).stp \| 549.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	Horizontal	12 to 30 (AWG) 3.31 to 0.05 (mm²)
691233810004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 691233810004 (rev1).pdf \| 140.2 KB IGS 691233810004 (rev1).iges \| 2.1 MB STP 691233810004 (rev1).stp \| 823.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Rising Cage Clamp	PCB	Yes	Horizontal	12 to 30 (AWG) 3.31 to 0.05 (mm²)

Order Code	Datasheet
691233810002	SPEC
691233810102	SPEC
691233810004	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples

WR-TBL Screw Types

Würth Elektronik screw type terminal blocks are available in different pitches and pincounts and offer large and modular terminal block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.
