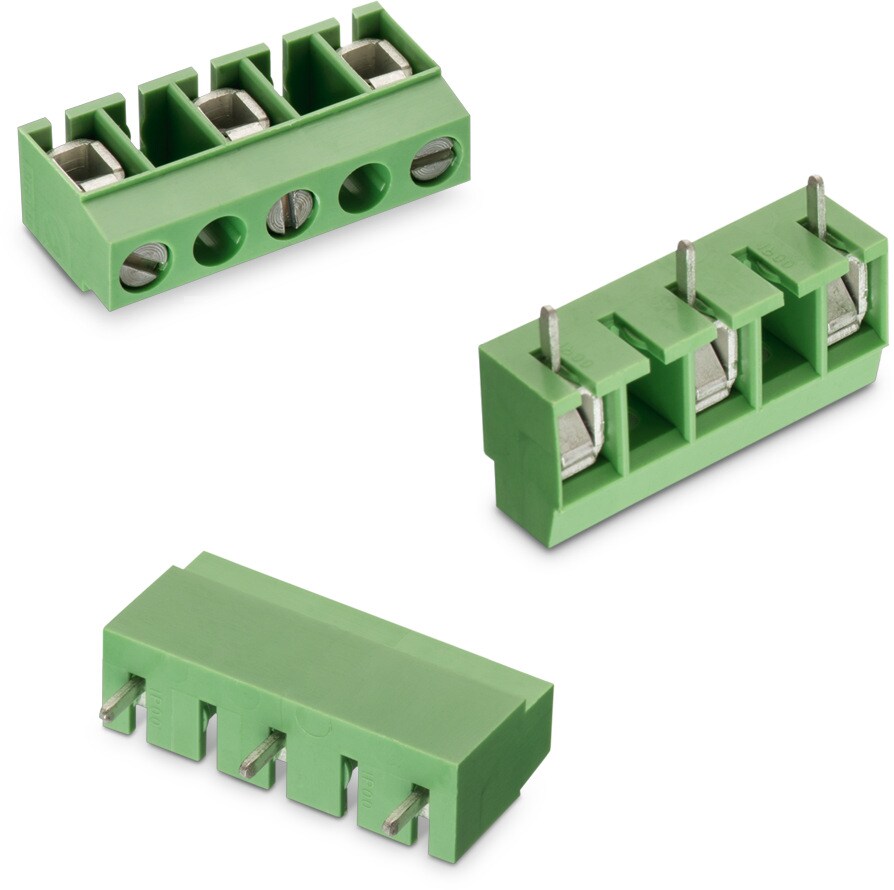

WR-TBL Series 1378 - Wire Protector 10.00mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS
Pitch	10 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel over Tin
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [UL]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [UL]	1600 V (AC)
Withstanding Voltage [cULus]	3000 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M2.5

Certification
UL Approval	E150931 CAT N: MRT12 (7)
VDE Approval	40021397
VDE Approval	40021397 TYPE: MRT12

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
691137810002	2, Pressure Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691137810002 (rev1).pdf \| 139.6 KB IGS Download_IGES_691137810002 (rev1).iges \| 1.8 MB STP Download_STP_691137810002 (rev1).stp \| 627.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)
691137810003		Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691137810003 (rev1).pdf \| 185.4 KB IGS Download_IGES_691137810003 (rev1).iges \| 2.4 MB STP Download_STP_691137810003 (rev1).stp \| 821.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)
