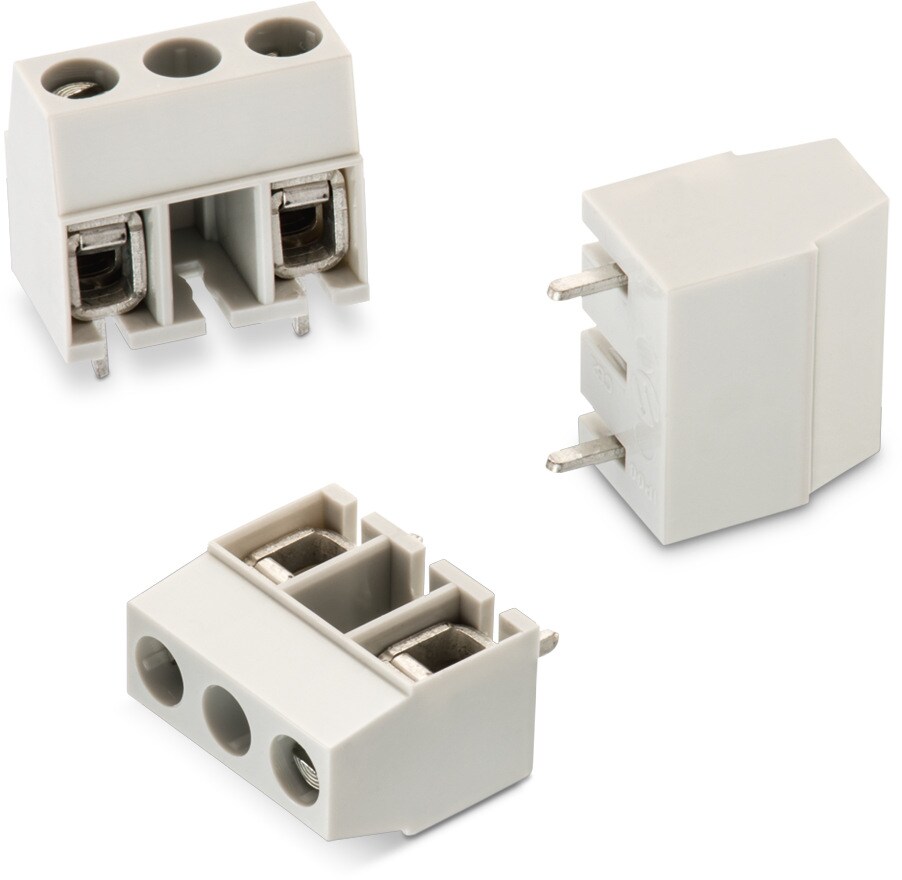

WR-TBL Serie 1338 - 10.00 mm Horizontal Cable Entry w. Pressure Clamp

Kind Properties
Pitch 10 mm
Material Properties
Insulator Material PC
Insulator Flammability Rating UL94 V-0
Insulator Color Grey
Contact Material Copper Alloy
Contact Plating Nickel over Tin
Contact Type Stamped
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 18 A
IR VDE 24 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [cULus] 3000 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance 20 mΩ
Contact Resistance [UL] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 7 (mm)
Screw M2.5
Certification
UL Approval E150931 CAT N: CBL (6)
VDE Approval 40021373
VDE Approval 40021373 TYPE: CBL
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691133810002
IGE STE 3D ALT EAG Pressure Clamp PCB No Horizontal 2 30 to 12 (AWG) 0.05 to 3.31 (mm²) 691001
691133810003
IGE STE 3D ALT EAG Pressure Clamp PCB No Horizontal 3 30 to 12 (AWG) 0.05 to 3.31 (mm²)
Order Code SPEC
691133810002
691133810003
Samples
Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
