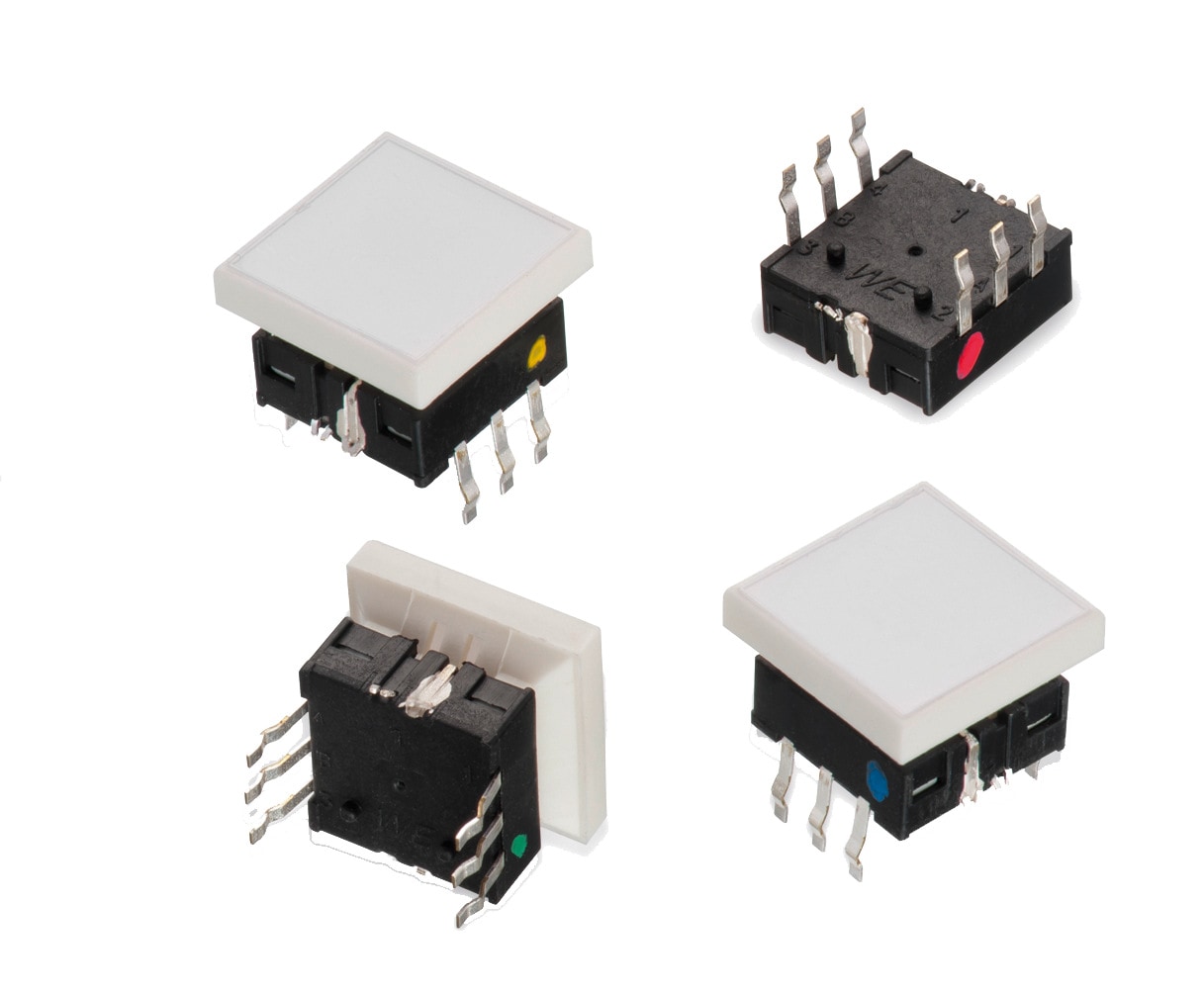

WS-TATL THT Illuminated Tact Switch 12 x 12 mm

Material Properties
Actuator Material	PA66
Actuator Flammability Rating	UL94 HB
Actuator Color	White
Base Material	PA66
Base Flammability Rating	UL94 HB
Frame Material	PA66
Frame Flammability Rating	UL94 HB
Frame Color	Black
Diffuser Plate Flammability Rating	UL94 HB
LED Terminal Material	Copper Alloy
LED Terminal Plating	Tin
Contact Material	Stainless Steel
Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
Contact Resistance Initial	100 mΩ
Contact Resistance After Life Test	2 Ω
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	220 g
Electrical Life	100000 Cycles

Optical Properties
Lens Type	Water clear; Waterclear
Chip Technology	AlGaInP; AlGaInP + Gan + InGaN; InGaN

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	ESD Tray

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Emitting Color	H(mm)	Samples
	440BS67082622	Blue, 8.2 mm	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TATL (rev24a).IntLib \| 212.5 KB CDS Cadence_WS-TATL (rev24a).zip \| 12.6 MB EAG Eagle_WS-TATL (rev24a).lbr \| 40.2 KB CAD files ZIP 3D 3D_440xx67082622 (rev1).pdf \| 234.3 KB IGS 44 0xx6 7082 622 (rev1).igs \| 3.5 MB STP 44 0xx6 7082 622 (rev1).stp \| 947.8 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Height8.2 mm
	440VR67082622	Bright Green & Red, 8.2 mm	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TATL (rev24a).IntLib \| 212.5 KB CDS Cadence_WS-TATL (rev24a).zip \| 12.6 MB EAG Eagle_WS-TATL (rev24a).lbr \| 40.2 KB CAD files ZIP 3D 3D_440VR67082622 (rev1).pdf \| 237.7 KB IGS 44 0xx6 7082 622 (rev1).igs \| 3.5 MB STP 44 0xx6 7082 622 (rev1).stp \| 950 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green & Red	Height8.2 mm
	440YS67082622	Yellow, 8.2 mm	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TATL (rev24a).IntLib \| 212.5 KB CDS Cadence_WS-TATL (rev24a).zip \| 12.6 MB EAG Eagle_WS-TATL (rev24a).lbr \| 40.2 KB CAD files ZIP 3D 3D_440xx67082622 (rev1).pdf \| 234.3 KB IGS 44 0xx6 7082 622 (rev1).igs \| 3.5 MB STP 44 0xx6 7082 622 (rev1).stp \| 947.8 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorYellow	Height8.2 mm
	440GS67082622	Green, 8.2 mm	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TATL (rev24a).IntLib \| 212.5 KB CDS Cadence_WS-TATL (rev24a).zip \| 12.6 MB EAG Eagle_WS-TATL (rev24a).lbr \| 40.2 KB CAD files ZIP 3D 3D_440xx67082622 (rev1).pdf \| 234.3 KB IGS 44 0xx6 7082 622 (rev1).igs \| 3.5 MB STP 44 0xx6 7082 622 (rev1).stp \| 947.8 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorGreen	Height8.2 mm
	440RS67082622	Red, 8.2 mm	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TATL (rev24a).IntLib \| 212.5 KB CDS Cadence_WS-TATL (rev24a).zip \| 12.6 MB EAG Eagle_WS-TATL (rev24a).lbr \| 40.2 KB CAD files ZIP 3D 3D_440xx67082622 (rev1).pdf \| 234.3 KB IGS 44 0xx6 7082 622 (rev1).igs \| 3.5 MB STP 44 0xx6 7082 622 (rev1).stp \| 947.8 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed	Height8.2 mm
	440M167082622	Red & Green & Blue, 8.2 mm	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATL (rev24a).IntLib \| 212.5 KB CDS Cadence_WS-TATL (rev24a).zip \| 12.6 MB EAG Eagle_WS-TATL (rev24a).lbr \| 40.2 KB CAD files ZIP IGS IGS_we_TATL (rev1).igs \| 3.5 MB STP STP_we_TATL (rev1).stp \| 946.2 KB Download all 5 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Height8.2 mm
