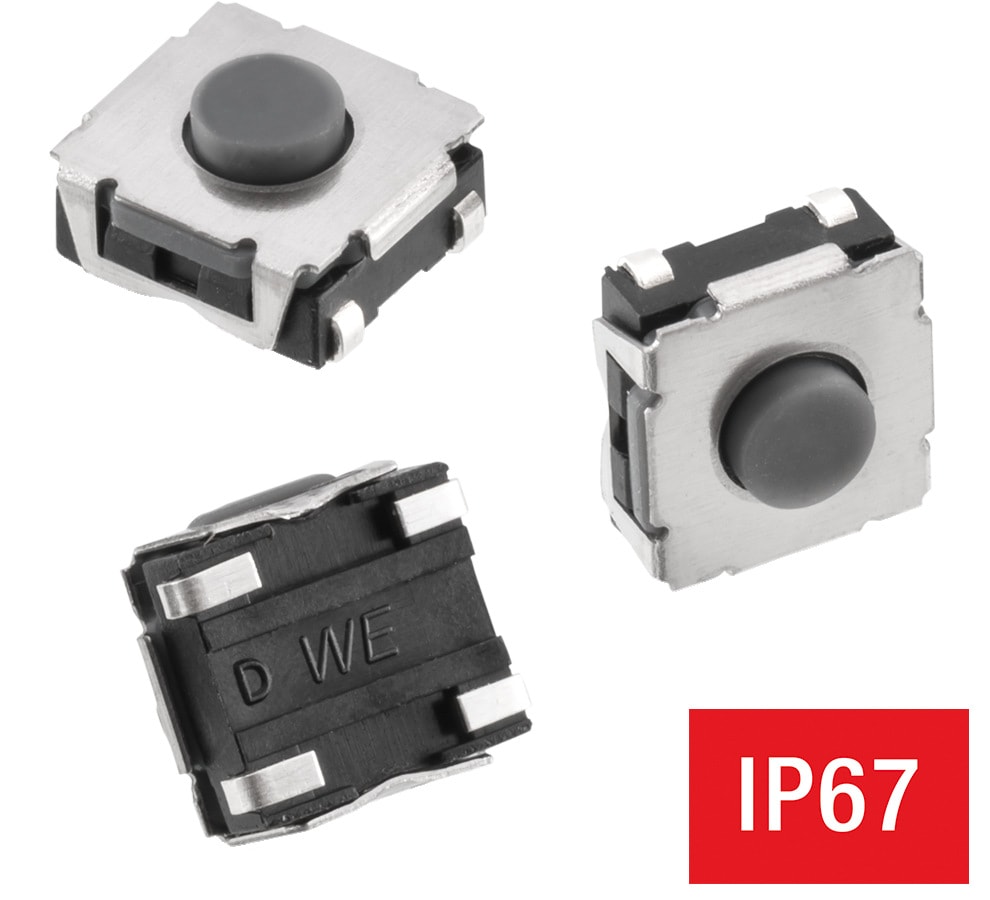

WS-TASV WS-TASV J-Hook SMT IP67 Tact Switch 6x6 mm | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	IP67

Material Properties
Actuator Material	Silicone Rubber
Actuator Flammability Rating	UL94 HB
Frame Material	HTN
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force (Value)	160 g; 250 g; 320 g
Electrical Life	200000 Cycles; 500000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Order Code	Datasheet	Downloads	H (mm)	Operation Force (Value) (g)	Electrical Life (Cycles)	Actuator Color	Vaporphase process	Design Kit
430773034825	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24a).IntLib \| 2 MB CDS Cadence_WS-TASV (rev23a).zip \| 12.5 MB EAG Eagle_WS-TASV (rev23a).lbr \| 408.8 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	3.4	250	500000	Grey	Yes	499001
430783034816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24a).IntLib \| 2 MB CDS Cadence_WS-TASV (rev23a).zip \| 12.5 MB EAG Eagle_WS-TASV (rev23a).lbr \| 408.8 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	3.4	160	1000000	White	Yes	499001
430753034832	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24a).IntLib \| 2 MB CDS Cadence_WS-TASV (rev23a).zip \| 12.5 MB EAG Eagle_WS-TASV (rev23a).lbr \| 408.8 KB CAD files ZIP 3D 3D_WS-TASV_430753034832 (rev1).pdf \| 156.6 KB IGS IGS_WS-TASV_430753034832 (rev1).igs \| 1.2 MB STP STP_WS-TASV_430753034832 (rev1).stp \| 489.9 KB Download all 6 files as zip archive ZIP	3.4	320	200000	Black	Yes	–
430773051825	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24a).IntLib \| 2 MB CDS Cadence_WS-TASV (rev23a).zip \| 12.5 MB EAG Eagle_WS-TASV (rev23a).lbr \| 408.8 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	5.1	250	500000	Grey	Yes	499001
430783051816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24a).IntLib \| 2 MB CDS Cadence_WS-TASV (rev23a).zip \| 12.5 MB EAG Eagle_WS-TASV (rev23a).lbr \| 408.8 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	5.1	160	1000000	White	Yes	499001
430753051832	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24a).IntLib \| 2 MB CDS Cadence_WS-TASV (rev23a).zip \| 12.5 MB EAG Eagle_WS-TASV (rev23a).lbr \| 408.8 KB CAD files ZIP 3D 3D_WS-TASV_430753051832 (rev1).pdf \| 153 KB IGS IGS_WS-TASV_430753051832 (rev1).igs \| 1.2 MB STP STP_WS-TASV_430753051832 (rev1).stp \| 472 KB Download all 6 files as zip archive ZIP	5.1	320	200000	Black	Yes	–

	Order Code	Datasheet
	430773034825	SPEC
	430783034816	SPEC
	430753034832	SPEC
	430773051825	SPEC
	430783051816	SPEC
	430753051832	SPEC

Samples

	Order Code	Datasheet	Downloads	H (mm)	Operation Force (Value) (g)	Electrical Life (Cycles)	Actuator Color	Vaporphase process	Design Kit	Samples

Tact Switches from Würth Elektronik eiSos

#TimetoSwitch

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test. Polyimide tape or silicone rubber protect the switch even in tough environments. The switch range includes various high quality solutions like dip, rotary, detector, micro, slide, rocker switches and encoder. Available from stock. Samples free of charge.

Product Benefits:

IP67
Long lifetime
High durability
Corrosion resistant metal elements
Full load life cycle test
Tight tolerance due to automated production

Characteristics

The corrosion resistance of all metallic components was tested by a 48-hour salt-spray test.

The snap dome is made of stainless steel to ensure high reliability and reduced friction. The indicated switching cycles have been tested under full load.

Polyimide film provides protection against environmental influences and silicone inserts are used for harsh industrial environments.

The plastic material withstands five times reflow and has been tested for flammability according to UL.

Automated production reduces mechanical deviations and ensures high consistency of mechanical parameters.

Switch IP Product Portfolio

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
