WA-SMST SMT Steel Spacer with through hole Ø 3.3

Applications

Assembling of PCBs to housing and to other PCBs
For distances from 1 to 16 mm
Fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
Ø f	3.3 mm
Solder Cream Thickness	150 µm

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

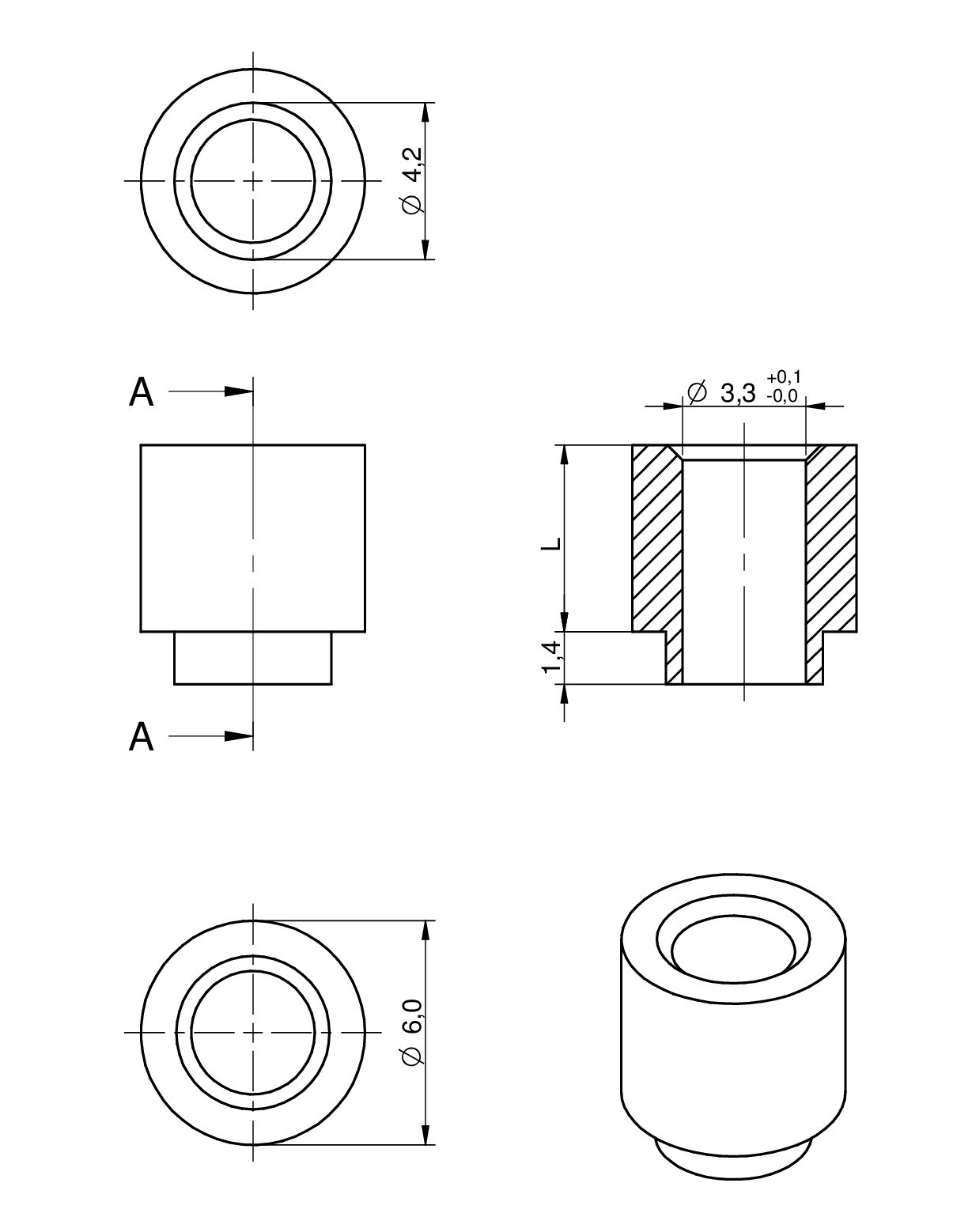

Order Code	Datasheet	Downloads	Status	L(mm)	Ø f(mm)	Ø ID(mm)	Ø OD(mm)	Packaging	Qty.
9774010960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774010960R (rev1).pdf \| 30.7 KB IGS 9774010960R (rev1).igs \| 49.4 KB STP 9774010960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length1 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit1500
9774015960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774015960R (rev1).pdf \| 30.8 KB IGS 9774015960R (rev1).igs \| 49.4 KB STP 9774015960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length1.5 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit1200
9774020960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774020960R (rev1).pdf \| 30.5 KB IGS 9774020960R (rev1).igs \| 49.4 KB STP 9774020960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length2 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit1050
9774025960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774025960R (rev1).pdf \| 30.1 KB IGS 9774025960R (rev1).igs \| 49.4 KB STP 9774025960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length2.5 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit950
9774030960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774030960 (rev1).pdf \| 29.9 KB IGS 9774030960 (rev1).igs \| 49.4 KB STP 9774030960 (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length3 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit800
9774040960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774040960R (rev1).pdf \| 29.3 KB IGS 9774040960R (rev1).igs \| 49.4 KB STP 9774040960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length4 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit750
9774050960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774050960R (rev1).pdf \| 28.8 KB IGS 9774050960R (rev1).igs \| 49.4 KB STP 9774050960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length5 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit650
9774060960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774060960R (rev1).pdf \| 28.3 KB IGS 9774060960R (rev1).igs \| 49.4 KB STP 9774060960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length6 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit550
9774070960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774070960R (rev1).pdf \| 27.7 KB IGS 9774070960R (rev1).igs \| 49.4 KB STP 9774070960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length7 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit500
9774080960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774080960R (rev1).pdf \| 27.1 KB IGS 9774080960R (rev1).igs \| 49.4 KB STP 9774080960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length8 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit450
9774090960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774090960R (rev1).pdf \| 26.7 KB IGS 9774090960R (rev1).igs \| 49.3 KB STP 9774090960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length9 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit400
9774100960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774100960R (rev1).pdf \| 26.3 KB IGS 9774100960R (rev1).igs \| 49 KB STP 9774100960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length10 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit350
9774110960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774110960R (rev1).pdf \| 25.8 KB IGS 9774110960R (rev1).igs \| 49 KB STP 9774110960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length11 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit300
9774120960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774120960R (rev1).pdf \| 25.1 KB IGS 9774120960R (rev1).igs \| 49 KB STP 9774120960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length12 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit300
9774130960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774130960R (rev1).pdf \| 25.2 KB IGS 9774130960R (rev1).igs \| 49 KB STP 9774130960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length13 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit250
9774140960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774140960R (rev1).pdf \| 24.6 KB IGS 9774140960R (rev1).igs \| 49 KB STP 9774140960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length14 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit250
9774150960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774150960R (rev1).pdf \| 24.2 KB IGS 9774150960R (rev1).igs \| 49.2 KB STP 9774150960R (rev1).stp \| 11.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length15 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit250
9774160960R	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB KIC KiCad_WA-SMST (rev26a).zip \| 375.2 KB CAD files ZIP 3D 3D_9774160960 (rev1).pdf \| 25.1 KB IGS IGS_9774160960 (rev1).igs \| 49 KB STP STP_9774160960 (rev1).stp \| 7.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length16 mm	Hole Diameter3.3 mm	Inner Diameter4.2 mm	Outer Diameter6 mm	PackagingTape and Reel	Packaging Unit180
