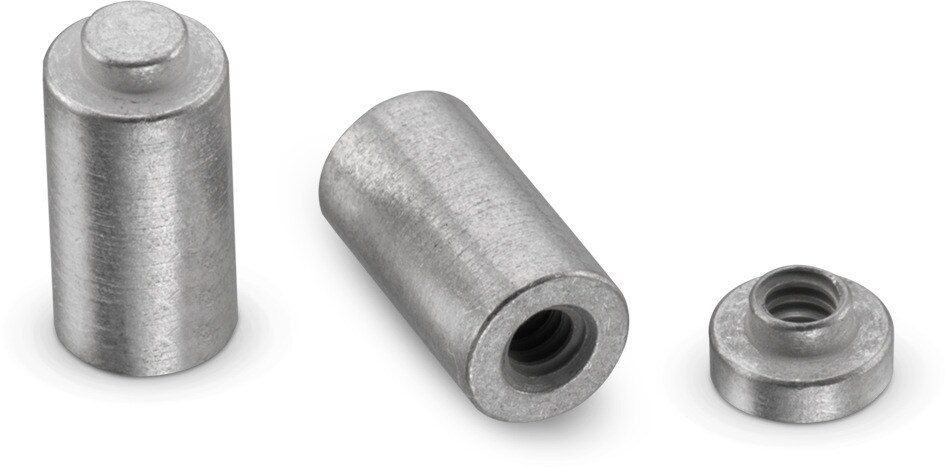

WA-SMSI SMT Steel Spacer with internal Thread M1.6

Applications

Assembling of PCBs to housing and to other PCBs
For distances from 0,5 to 6mm
Fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape, just for 9774xxx633

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
Solder Cream Thickness	120 µm
Tightening Torque	0.1 N*m

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	L(mm)	T_li(mm)	T_i	Ø ID(mm)	Ø OD(mm)	Packaging	Qty.
9774005633R	0.5 mm, –, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774005633 (rev1).pdf \| 36.5 KB IGS IGS_9774005633 (rev1).igs \| 58.1 KB STP STP_9774005633 (rev1).stp \| 9.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length0.5 mm	–	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit4000
9774010633R	1 mm, –, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774010633 (rev1).pdf \| 35.9 KB IGS Download_IGS_9774010633 (rev1).igs \| 57.9 KB STP Download_STEP_9774010633 (rev1).stp \| 9.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length1 mm	–	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit3400
9774015633R	1.5 mm, –, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774015633 (rev1).pdf \| 35.7 KB IGS Download_IGS_9774015633 (rev1).igs \| 59.2 KB STP Download_9774015633 (rev1).stp \| 9.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length1.5 mm	–	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit3000
9774020633R	2 mm, –, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774020633 (rev1).pdf \| 34.4 KB IGS Download_IGS_9774020633 (rev1).igs \| 58.8 KB STP Download_STEP_9774020633 (rev1).stp \| 9.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length2 mm	–	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit2200
9774025633R	2.5 mm, –, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774025633 (rev1).pdf \| 34 KB IGS Download_IGS_9774025633 (rev1).igs \| 59 KB STP Download_STEP_9774025633 (rev1).stp \| 9.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length2.5 mm	–	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit2200
9774030633R	3 mm, –, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774030633 (rev1).pdf \| 33.9 KB IGS Download_IGS_9774030633 (rev1).igs \| 58.9 KB STP Download_STEP_9774030633 (rev1).stp \| 9.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length3 mm	–	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit1800
97730356334R	3.5 mm, 2 mm, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_97730356334 (rev1).pdf \| 39.8 KB IGS Download_IGS_97730356334 (rev1).igs \| 69.3 KB STP Download_STEP_97730356334 (rev1).stp \| 11.1 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length3.5 mm	Inner Thread Length2 mm	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit1800
97730406334R	4 mm, 2 mm, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_97730406334 (rev1).pdf \| 35.6 KB IGS Download_IGS_97730406334 (rev1).igs \| 68.9 KB STP Download_STEP_97730406334 (rev1).stp \| 11 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length4 mm	Inner Thread Length2 mm	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit1400
97730456334R	4.5 mm, 2 mm, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_97730456334 (rev1).pdf \| 38 KB IGS Download_IGS_97730456334 (rev1).igs \| 69.7 KB STP Download_STEP_97730456334 (rev1).stp \| 11.1 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length4.5 mm	Inner Thread Length2 mm	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit1400
97730506334R	5 mm, 2 mm, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_97730506334 (rev1).pdf \| 37.1 KB IGS Download_IGS_97730506334 (rev1).igs \| 69.4 KB STP Download_STEP_97730506334 (rev1).stp \| 11 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length5 mm	Inner Thread Length2 mm	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit1300
97730606334R	6 mm, 2 mm, M1.6	Downloads6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_97730606334 (rev1).pdf \| 33.2 KB IGS Download_IGS_97730606334 (rev1).igs \| 69.4 KB STP Download_STEP_97730606334 (rev1).stp \| 11 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length6 mm	Inner Thread Length2 mm	Inner ThreadM1.6	Inner Diameter1.9 mm	Outer Diameter3.3 mm	PackagingTape and Reel	Packaging Unit1100

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.

Fast and precise process
Instant removable kapton foil
Strong holding forces and torques
Highest process reliability
