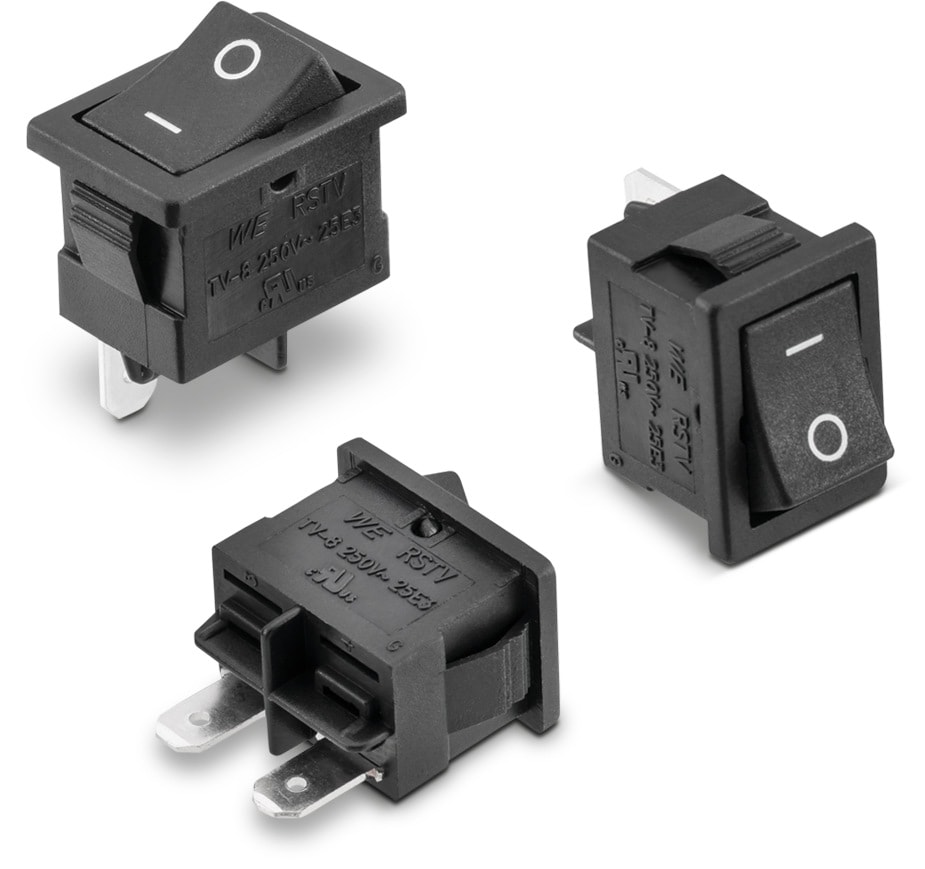

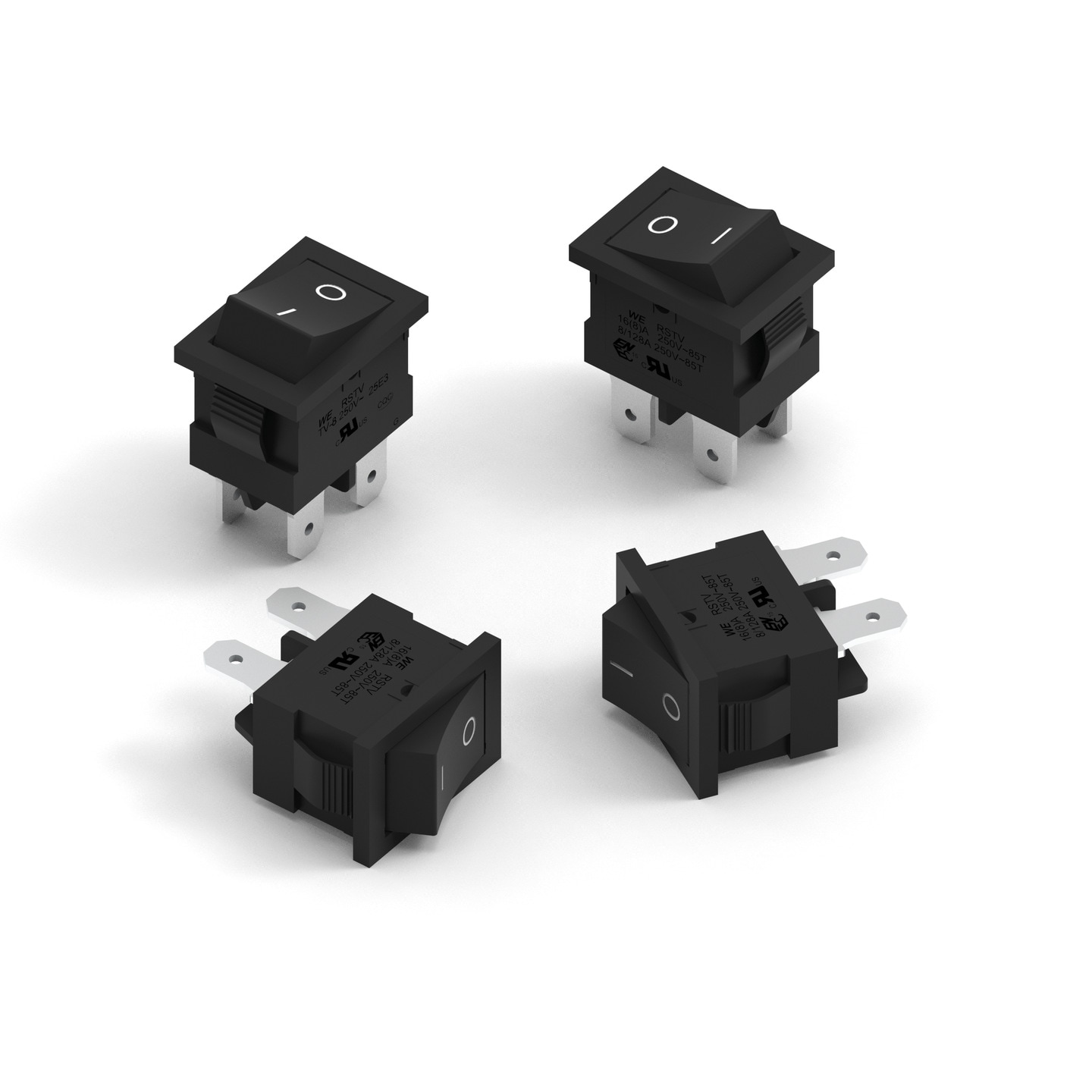

WS-RSTV 19.2 x 12.9 mm Panel Cut-Out Rocker Switch with 0.187” quick connect terminal

General Information
Operating Temperature 0 up to +85 °C
Electrical Properties
IR 1 16 A
Material Properties
Actuator Material PA66
Properties
Actuator Color Black
Actuator Flammability Rating UL94 V-0
Contact Resistance 20 mΩ
Frame Color Black
Frame Flammability Rating UL94 V-0
Frame Material PA66
Inrush Current Capacitive Load 128 A
RISO 100 MΩ
Moveable Contact Material Copper Alloy
Moveable Contact Plating Silver
Moveable Contactor Plating Silver
Schematic DPST; SPST
Spring Material Carbon Steel
Stationary Contact Material Copper Alloy
Stationary Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver

Products

Order Code Data­sheet Downloads Actuator Color Frame Color Qty. Samples
471001264143
STE 3D ALT EAG IGS CAD Black Black 100
471016264143
STE 3D ALT EAG IGS CAD Black Black 100
471001264142
STE 3D ALT EAG IGS CAD Black Black 100
Order Code Data­sheet
471001264143
471016264143
471001264142
