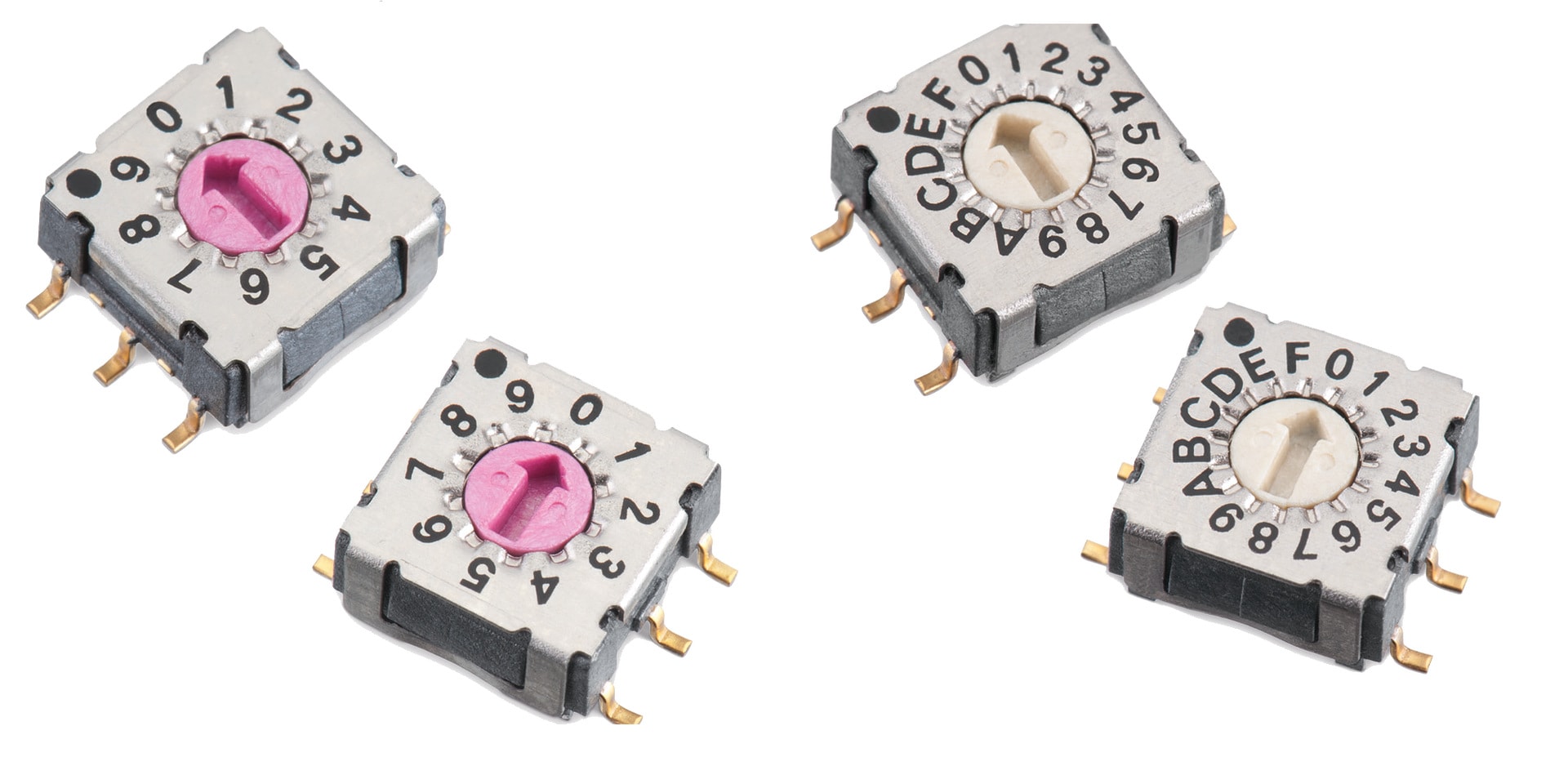

WS-ROSV SMT IP67 Rotary Switch with Arrow Type Actuator 7x7 mm

Material Properties
Cover Material	Stainless Steel
Base Material	LCP
Base Flammability Rating	UL94 V-0
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	400 mA
V_R	42 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	25000 Steps
Actuator Type	Arrow Type

General Information
Operating Temperature	-60 °C up to +125 °C
Washable	Yes
Ingress Protection Code	IP67

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit
428542320810	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP IGS 428542320810 (rev1).igs \| 3.7 MB STP 428542320810 (rev1).stp \| 1.3 MB Download all 5 files as zip archive ZIP	10	Real Code	IP67	Yes	Red	499001
428542320811	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP IGS 428542320811 (rev1).igs \| 3.7 MB STP 428542320811 (rev1).stp \| 1.3 MB Download all 5 files as zip archive ZIP	10	Complement Code	IP67	Yes	Orange	499001
428542320816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP IGS 428542320816 (rev1).igs \| 4 MB STP 428542320816 (rev1).stp \| 1.4 MB Download all 5 files as zip archive ZIP	16	Real Code	IP67	Yes	Grey	499001
428542320817	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP IGS 428542320817 (rev1).igs \| 4 MB STP 428542320817 (rev1).stp \| 1.4 MB Download all 5 files as zip archive ZIP	16	Complement Code	IP67	Yes	Ivory	499001

	Order Code	Datasheet
	428542320810	SPEC
	428542320811	SPEC
	428542320816	SPEC
	428542320817	SPEC

Samples

	Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit	Samples

Switch IP Product Portfolio

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
