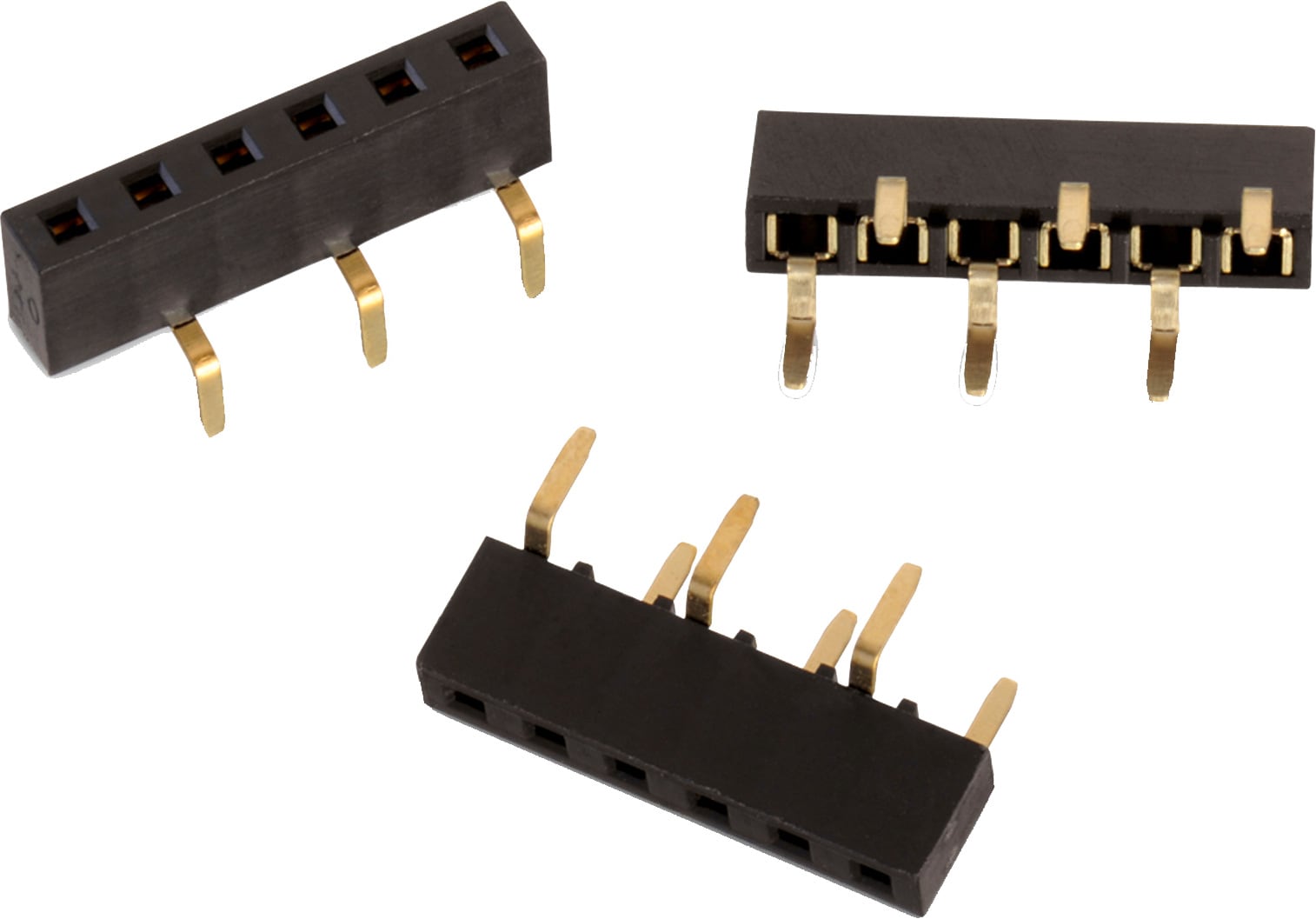

WR-PHD 2.54 mm Socket Header Bottom Entry

Article Properties
Pins 4; 5; 6; 8; 10; 20
Kind Properties
Pitch 2.54 mm
Quality Class 3 as per CECC 75 301-802
Rows Single
Gender Socket Header
Type Bottom Entry
Material Properties
Insulator Material PA46
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Compliance Lead free / RoHS
Electrical Properties
Rated Current 3 A
IR 1 3 A
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tube

Products

Order Code SPEC Downloads Pins Rows Gender Type IR 1
(A)
Packaging Design Kit Samples
61300415721
STE 3D ALT EAG IGS CAD 4 Single Socket Header Bottom Entry 3 Tube
61300515721
STE 3D ALT EAG IGS CAD 5 Single Socket Header Bottom Entry 3 Tube
61300615721
STE 3D ALT EAG IGS CAD 6 Single Socket Header Bottom Entry 3 Tube 612690
61300815721
STE 3D ALT EAG IGS CAD 8 Single Socket Header Bottom Entry 3 Tube 613001
61301015721
STE 3D ALT EAG IGS CAD 10 Single Socket Header Bottom Entry 3 Tube 613001
61302015721
STE 3D ALT EAG IGS CAD 20 Single Socket Header Bottom Entry 3 Tube 613001
