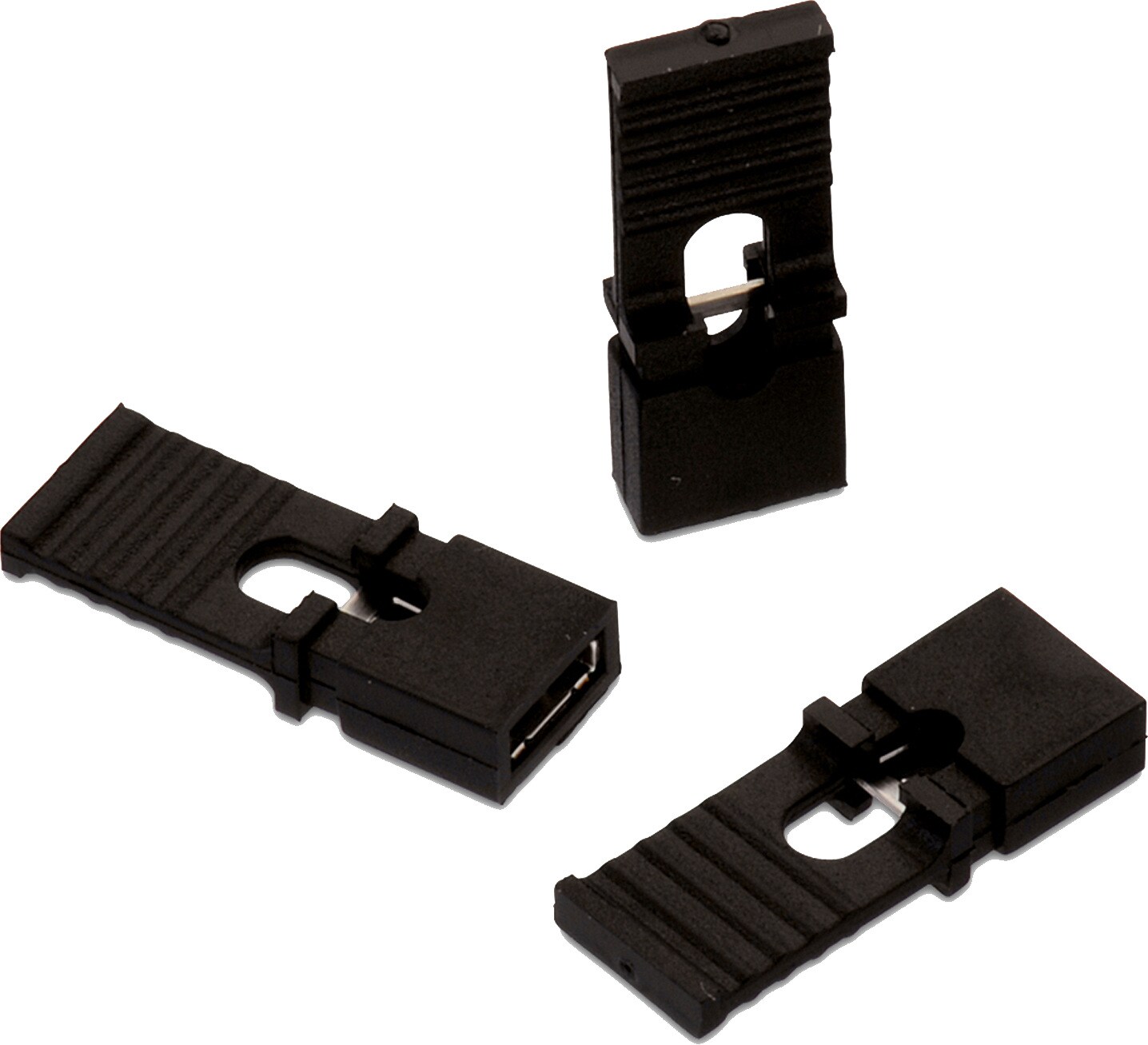

WR-PHD 2.54 mm Jumper with Test Point & Pullback | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.54 mm TypeJumper Product seriesWR-PHD 2.54 mm Jumper with Test Point & Pullback

Article Properties
Pins	1 mm

Kind Properties
Pitch	2.54 mm
Gender	Jumper

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +125 °C

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Color	Gender	I_R (A)	Packaging	Design Kit	Samples
609002115121	SPEC	4 files CAD files ZIP 3D 609002115121_1 (rev1).pdf \| 89.6 KB IGS 609002115121 (rev1).igs \| 1.3 MB STP STEP_609002115121 (rev1).stp \| 441.8 KB Download all 4 files as zip archive ZIP	Black	Jumper	3	Bag	613001

Order Code	Datasheet
609002115121	SPEC

Samples

Order Code	Datasheet	Downloads	Color	Gender	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm SMT Dual Pin Header (Reel)

WR-PHD 2.54 mm SMT Dual Pin Header

WR-PHD 2.54 mm SMT Pin Header Double Row Right Angled

WR-PHD 2.54 mm SMT Pin Header

WR-PHD 2.54 mm THT Angled Dual Pin Header

WR-PHD 2.54 mm THT Angled Pin Header

WR-PHD 2.54 mm THT Board Stacker

WR-PHD 2.54 mm THT Dual Board Stacker

WR-PHD 2.54 mm THT Dual Pin Header

WR-PHD 2.54 mm THT Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
