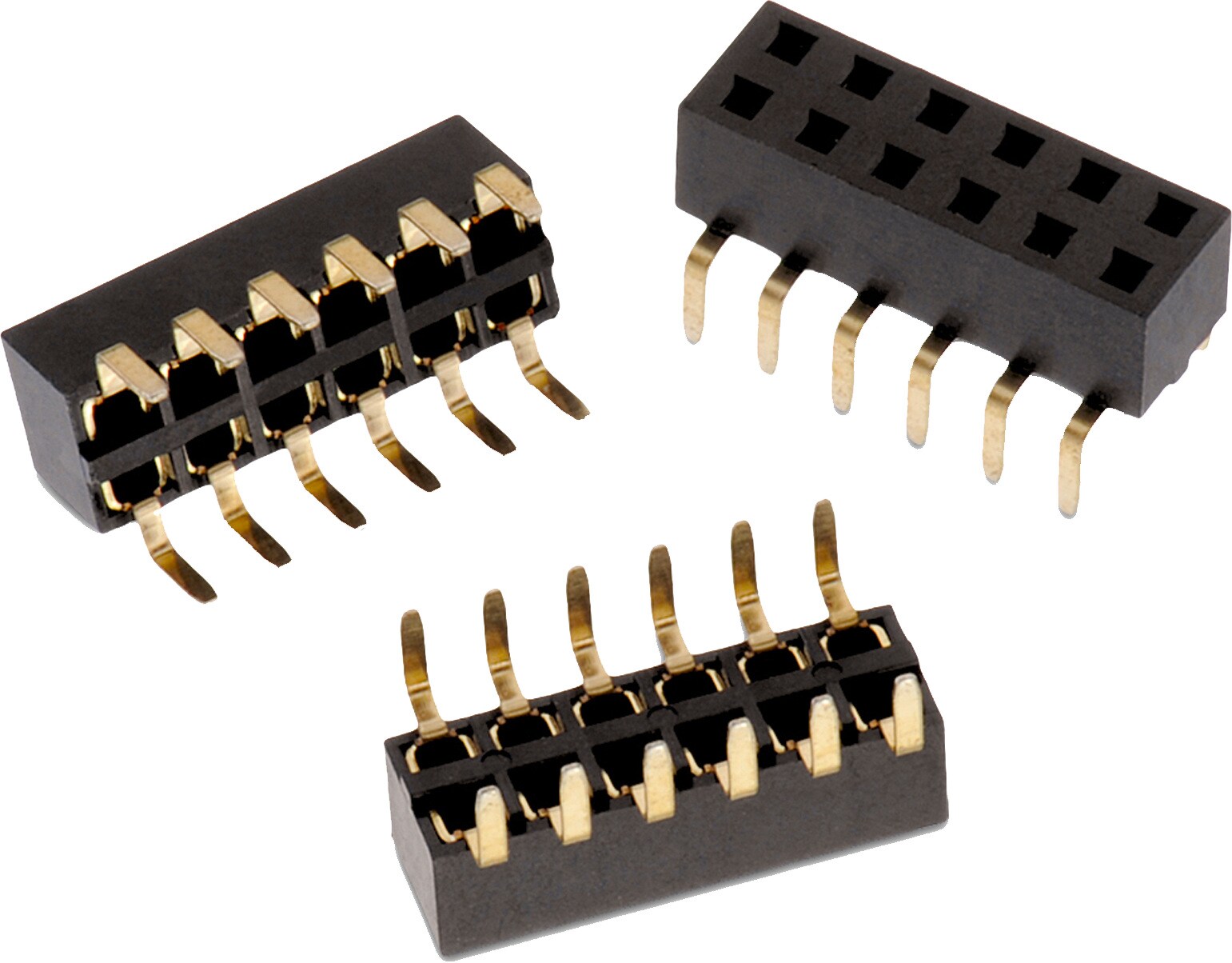

WR-PHD 2.54 mm Dual Socket Header Bottom Entry Large

Article Properties
Pins 4; 6; 8; 10; 12; 16; 18; 20; 22; 24; 26; 32; 34
Kind Properties
Pitch 2.54 mm
Quality Class 3 as per CECC 75 301-802
Rows Dual
Gender Socket Header
Type Bottom Entry Large
Material Properties
Insulator Material PA46
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Electrical Properties
Rated Current 3 A
IR 1 3 A
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E324776
Packaging Properties
Packaging Tube
