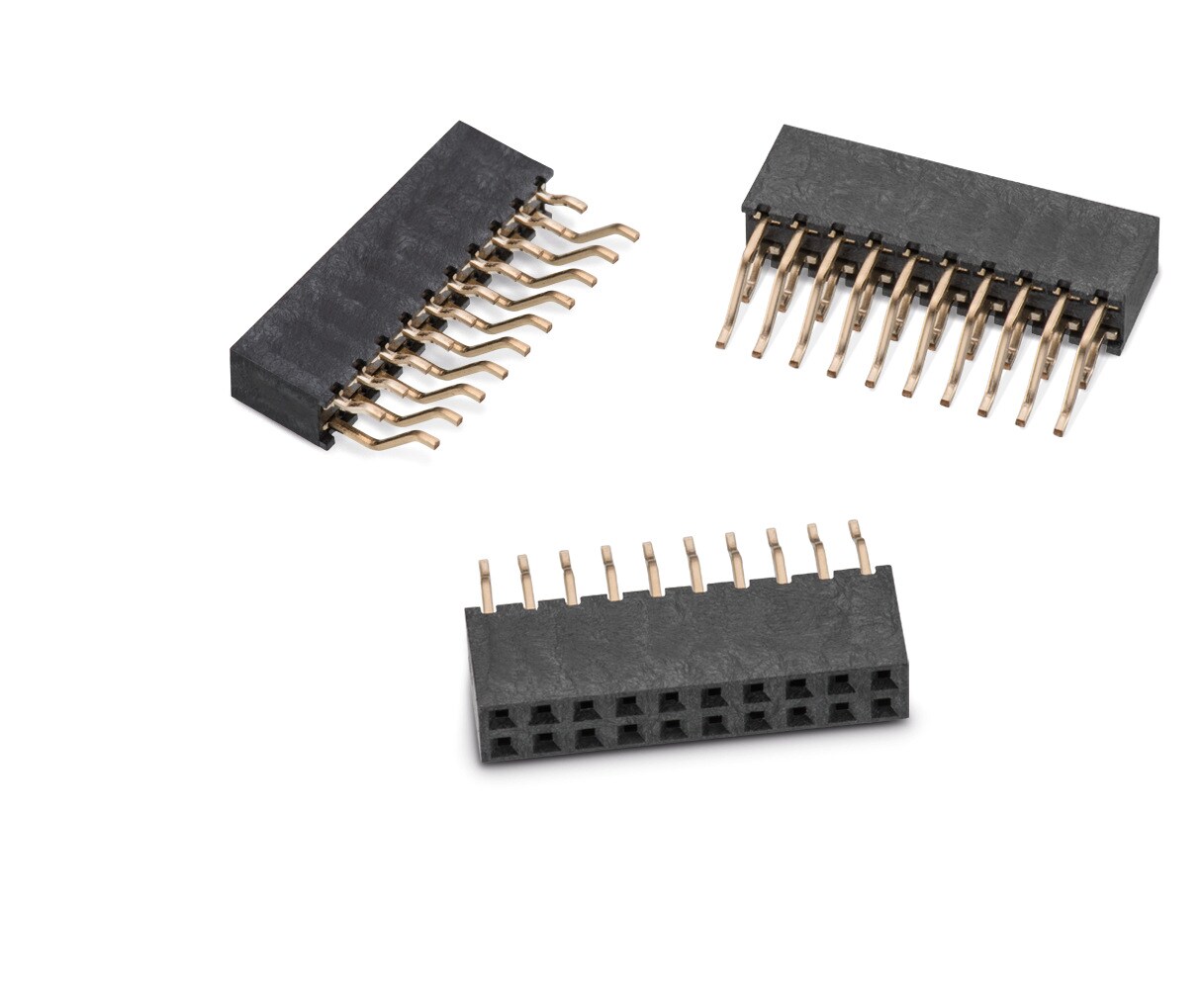

WR-PHD 2.00 mm Dual SMT Socket Header Angled

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 12 pcs; 14 pcs; 16 pcs; 20 pcs

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Socket Header
Type	Angled

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Samples
	621104284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621104284621 (rev1).pdf \| 105 KB IGS Download_IGES_621104284621 (rev1).iges \| 1.8 MB STP Download_STP_621104284621 (rev1).stp \| 379.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Angled	2	Tape and Reel
	621106284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621106284621 (rev1).pdf \| 126.1 KB IGS Download_IGES_621106284621 (rev1).iges \| 2.2 MB STP Download_STP_621106284621 (rev1).stp \| 462.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Angled	2	Tape and Reel
	621108284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621108284621 (rev1).pdf \| 145 KB IGS Download_IGES_621108284621 (rev1).iges \| 2.5 MB STP Download_STP_621108284621 (rev1).stp \| 549.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Angled	2	Tape and Reel
	621110284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621110284621 (rev1).pdf \| 164 KB IGS Download_IGES_621110284621 (rev1).iges \| 2.9 MB STP Download_STP_621110284621 (rev1).stp \| 633.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Angled	2	Tape and Reel
	621112284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621112284621 (rev1).pdf \| 184.3 KB IGS Download_IGES_621112284621 (rev1).iges \| 3.2 MB STP Download_STP_621112284621 (rev1).stp \| 721.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Dual	Socket Header	Angled	2	Tape and Reel
	621114284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621114284621 (rev1).pdf \| 203.3 KB IGS Download_IGES_621114284621 (rev1).iges \| 3.6 MB STP Download_STP_621114284621 (rev1).stp \| 805.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Socket Header	Angled	2	Tape and Reel
	621116284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621116284621 (rev1).pdf \| 222.7 KB IGS Download_IGES_621116284621 (rev1).iges \| 4 MB STP Download_STP_621116284621 (rev1).stp \| 892.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Angled	2	Tape and Reel
	621120284621	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621120284621 (rev1).pdf \| 263.2 KB IGS Download_IGES_621120284621 (rev1).iges \| 4.7 MB STP Download_STP_621120284621 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Angled	2	Tape and Reel

	Order Code	Datasheet
	621104284621	SPEC
	621106284621	SPEC
	621108284621	SPEC
	621110284621	SPEC
	621112284621	SPEC
	621114284621	SPEC
	621116284621	SPEC
	621120284621	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Samples

Mates with

WR-PHD 2.00 mm SMT Angled Dual Pin Header

WR-PHD 2.00 mm THT Dual Pin Header

WR-PHD 2.00 mm SMT Dual Pin Header
