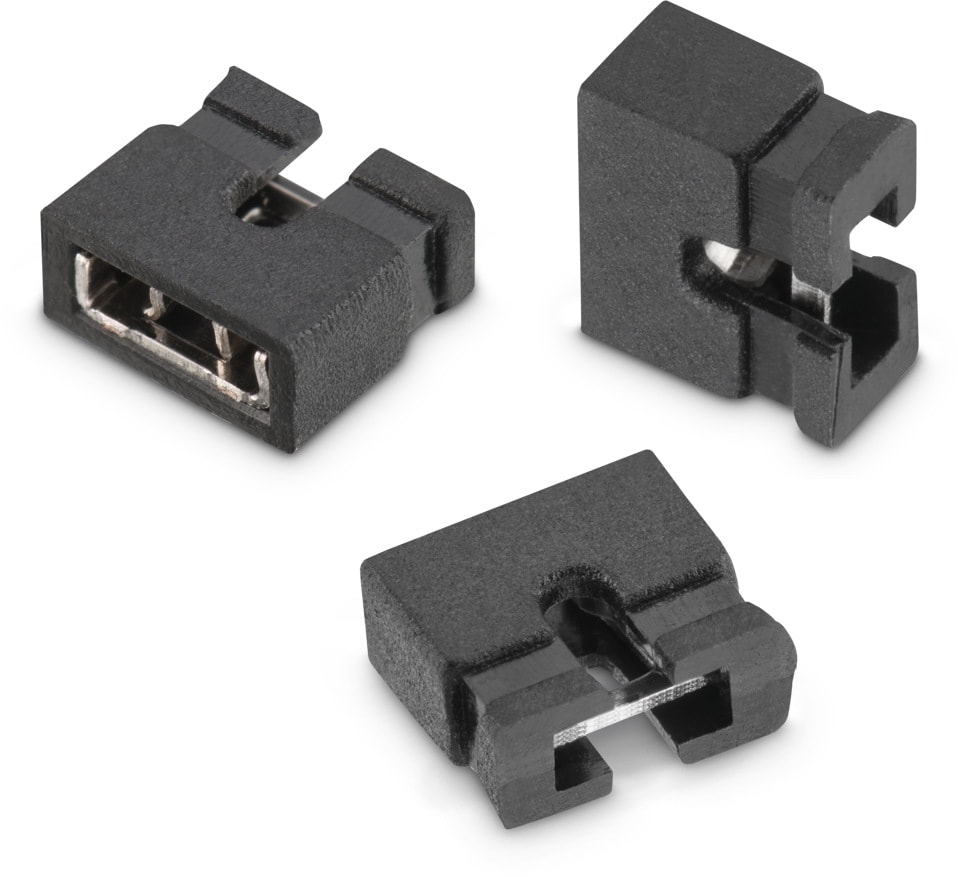

WR-PHD 2.00 mm Jumper with Test Point | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.00 mm TypeJumper Product seriesWR-PHD 2.00 mm Jumper with Test Point

Article Properties
Pins	2

Kind Properties
Pitch	2 mm
Quality Class	25 Mating cycles
Gender	Jumper

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +105 °C
Compliance	Lead free / RoHS

Electrical Properties
I_R	1 A
Withstanding Voltage	500 V (AC)
Contact Resistance	30 mΩ
R_ISO	500 MΩ

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Pins	Gender	I_R (A)	Packaging	Design Kit	Samples
60800213421	SPEC	3 files CAD files ZIP 3D 3D_60800213421 (rev1).pdf \| 53.9 KB IGS Downloads_IGES_60800213421 (rev1).iges \| 778 KB STP 60800213421 (rev1).stp \| 286.2 KB Download all 3 files as zip archive ZIP	2	Jumper	1	Bag	613001

Order Code	Datasheet
60800213421	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Gender	I_R (A)	Packaging	Design Kit	Samples

Suitable for

WR-PHD 2.00 mm SMT Angled Dual Pin Header

WR-PHD 2.00 mm SMT Dual Pin Header (Reel)

WR-PHD 2.00 mm SMT Dual Pin Header

WR-PHD 2.00 mm THT Dual Pin Header

WR-PHD 2.00 mm THT Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
