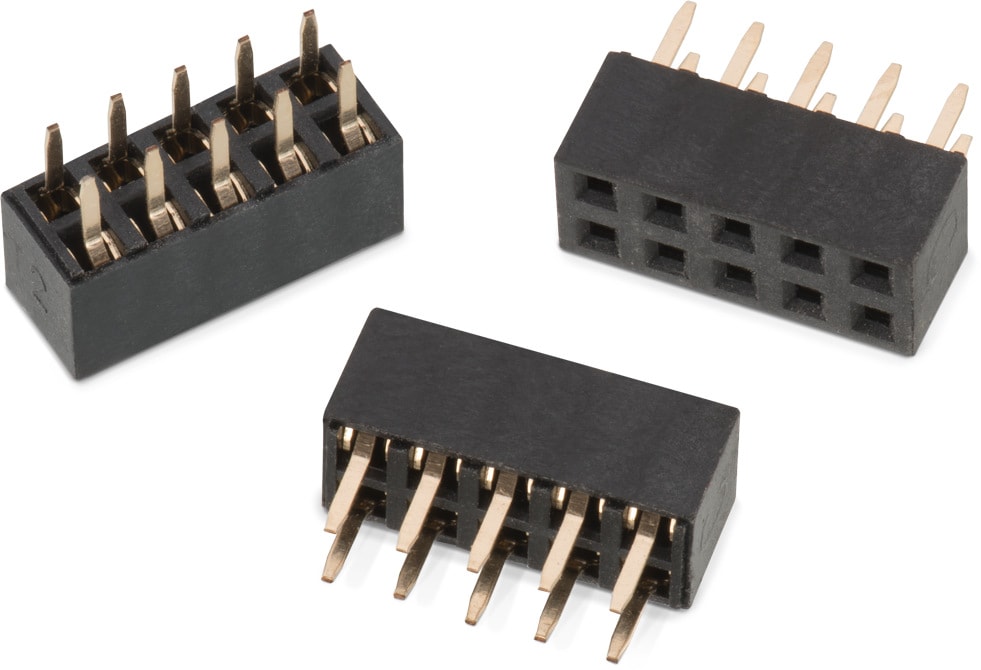

WR-PHD 2.00 mm Dual Socket Header

Characteristics

Reference Designs

Article Properties
Pins4; 6; 8; 10; 14; 16; 20; 24; 28; 32; 40; 44
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
ComplianceLead free / RoHS
Pitch2 mm
Durability50 Cycles
RowsDual
GenderSocket Header
TypeStraight
Electrical Properties
IR2 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples
62000421821SPEC
6 files 4 Dual Socket Header Straight 2 Tube
62000621821SPEC
6 files 6 Dual Socket Header Straight 2 Tube
62000821821SPEC
6 files 8 Dual Socket Header Straight 2 Tube613001
62001021821SPEC
6 files 10 Dual Socket Header Straight 2 Tube613001
62001421821SPEC
6 files 14 Dual Socket Header Straight 2 Tube
62001621821SPEC
6 files 16 Dual Socket Header Straight 2 Tube
62002021821SPEC
6 files 20 Dual Socket Header Straight 2 Tube613001
62002421821SPEC
6 files 24 Dual Socket Header Straight 2 Tube
62002821821SPEC
6 files 28 Dual Socket Header Straight 2 Tube613001
62003221821SPEC
6 files 32 Dual Socket Header Straight 2 Tube
62004021821SPEC
6 files 40 Dual Socket Header Straight 2 Tube613001
62004421821SPEC
6 files 44 Dual Socket Header Straight 2 Tube
Order Code Data­sheet
62000421821SPEC
62000621821SPEC
62000821821SPEC
62001021821SPEC
62001421821SPEC
62001621821SPEC
62002021821SPEC
62002421821SPEC
62002821821SPEC
62003221821SPEC
62004021821SPEC
62004421821SPEC
Samples
Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
