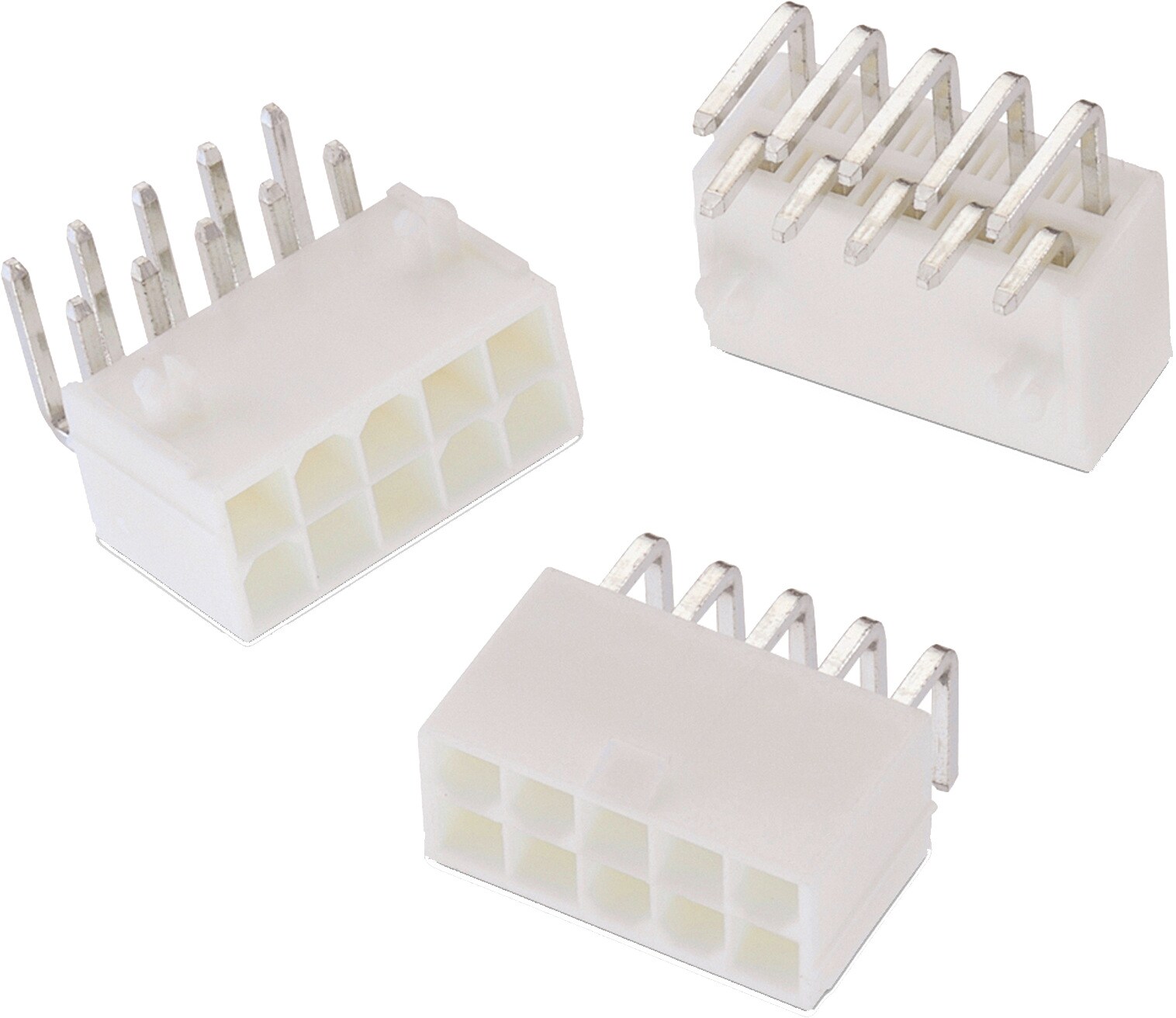

WR-MPC4 4.20 mm Male Dual Row Angled Header w. Mounting Pegs

Kind Properties
Pitch 4.2 mm
Gender Male
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Insulator Color White
Contact Material Tin over Nickel
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Working Voltage 600 V (AC)
Withstanding Voltage 1500 V (AC)
Contact Resistance 10 mΩ
RISO 1000 MΩ
Wire Properties
Packaging Tray

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Rows Mount Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
649002227222
IGE STE 3D ALT EAG CAD 2 4.2 Male Right Angled Dual THT 600 PCB 10 max. 5.4 Tray 649001
649004227222
IGE STE 3D ALT EAG CAD 4 4.2 Male Right Angled Dual THT 600 PCB 10 max. 9.6 Tray 649001
649006227222
IGE STE 3D ALT EAG CAD 6 4.2 Male Right Angled Dual THT 600 PCB 10 max. 13.8 Tray 612690
649001
649008227222
IGE STE 3D ALT EAG CAD 8 4.2 Male Right Angled Dual THT 600 PCB 10 max. 18 Tray 649001
649010227222
IGE STE 3D ALT EAG CAD 10 4.2 Male Right Angled Dual THT 600 PCB 10 max. 22.2 Tray 649001
649012227222
IGE STE 3D ALT EAG CAD 12 4.2 Male Right Angled Dual THT 600 PCB 10 max. 26.4 Tray 649001
649014227222
IGE STE 3D ALT EAG CAD 14 4.2 Male Right Angled Dual THT 600 PCB 10 max. 30.6 Tray 649001
649016227222
IGE STE 3D ALT EAG CAD 16 4.2 Male Right Angled Dual THT 600 PCB 10 max. 34.8 Tray 649001
649018227222
IGE STE 3D ALT EAG CAD 18 4.2 Male Right Angled Dual THT 600 PCB 10 max. 39 Tray 649001
649020227222
IGE STE 3D ALT EAG CAD 20 4.2 Male Right Angled Dual THT 600 PCB 10 max. 43.2 Tray 649001
649022227222
IGE STE 3D ALT EAG CAD 22 4.2 Male Right Angled Dual THT 600 PCB 10 max. 47.4 Tray 649001
649024227222
IGE STE 3D ALT EAG CAD 24 4.2 Male Right Angled Dual THT 600 PCB 10 max. 51.6 Tray 649001
