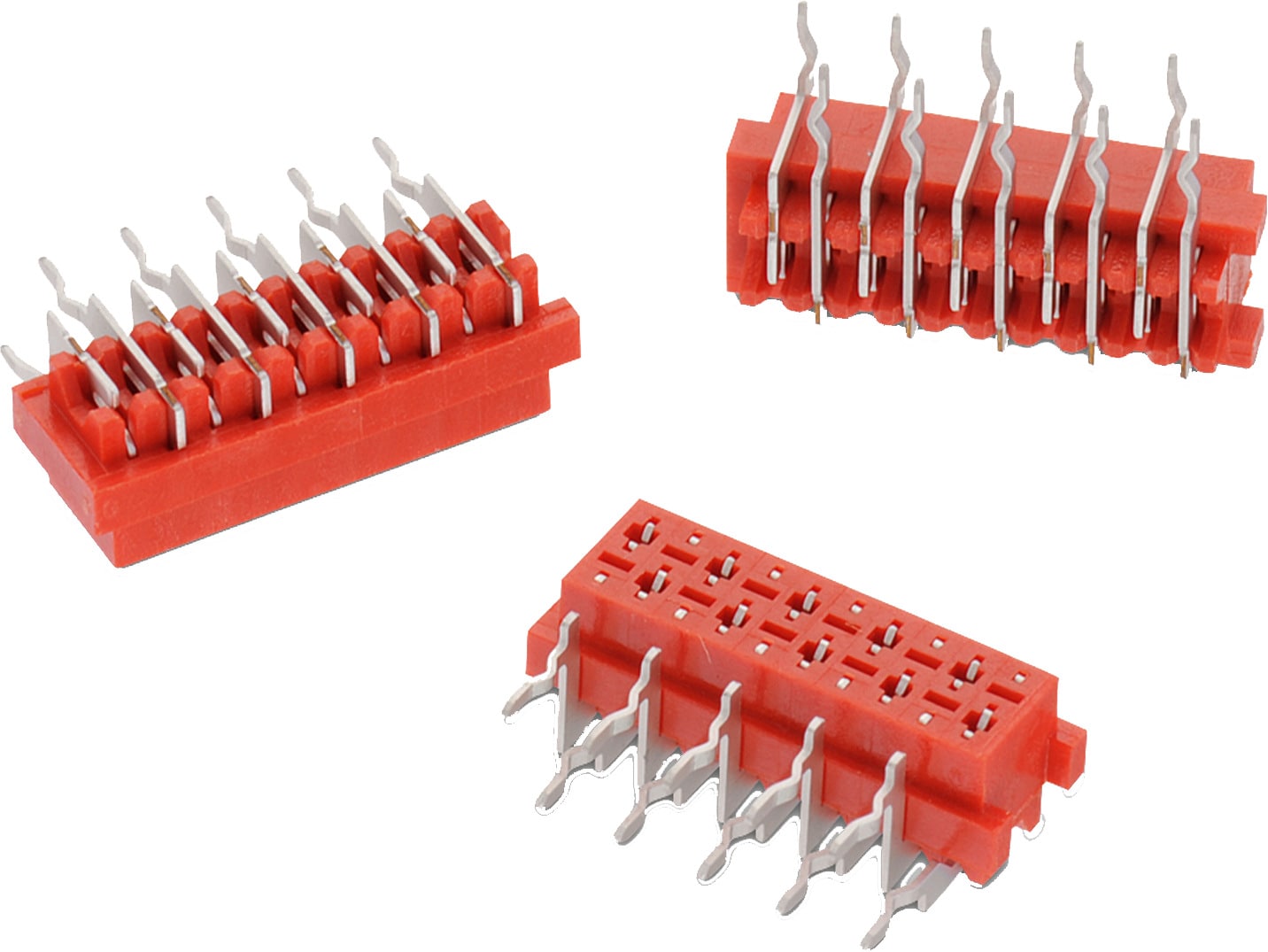

WR-MM Female Angled Connector w. Polarization and w/o Latch

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Packaging Properties
cULus Approval	E323964
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Pins	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
690368170472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368170472 (rev1).pdf \| 109.5 KB IGS Download_IGES_690368170472 (rev1).iges \| 1.6 MB STP 690368170472 (rev1).stp \| 361.4 KB Download all 6 files as zip archive ZIP	4	per Row	Female	Angled	1.5	Tube	690001
690368170672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368170672 (rev1).pdf \| 131.2 KB IGS Download_IGES_690368170672 (rev1).iges \| 2 MB STP 690368170672 (rev1).stp \| 442.9 KB Download all 6 files as zip archive ZIP	6	per Row	Female	Angled	1.5	Tube	690001
690368170872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368170872 (rev1).pdf \| 148.5 KB IGS Download_IGES_690368170872 (rev1).iges \| 2.3 MB STP 690368170872 (rev1).stp \| 528.7 KB Download all 6 files as zip archive ZIP	8	per Row	Female	Angled	1.5	Tube	690001
690368171072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368171072 (rev1).pdf \| 172.2 KB IGS Download_IGES_690368171072 (rev1).iges \| 2.7 MB STP 690368171072 (rev1).stp \| 612.9 KB Download all 6 files as zip archive ZIP	10	per Row	Female	Angled	1.5	Tube	612690 690001
690368171272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368171272 (rev1).pdf \| 190.6 KB IGS Download_IGES_690368171272 (rev1).iges \| 3 MB STP 690368171272 (rev1).stp \| 703.9 KB Download all 6 files as zip archive ZIP	12	per Row	Female	Angled	1.5	Tube	690001
690368171472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368171472 (rev1).pdf \| 210.4 KB IGS Download_IGES_690368171472 (rev1).iges \| 3.4 MB STP 690368171472 (rev1).stp \| 794.6 KB Download all 6 files as zip archive ZIP	14	per Row	Female	Angled	1.5	Tube	690001
690368171672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368171672 (rev1).pdf \| 228.8 KB IGS Download_IGES_690368171672 (rev1).iges \| 3.7 MB STP 690368171672 (rev1).stp \| 877.9 KB Download all 6 files as zip archive ZIP	16	per Row	Female	Angled	1.5	Tube	690001
690368171872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368171872 (rev1).pdf \| 258.7 KB IGS Download_IGES_690368171872 (rev1).iges \| 4 MB STP 690368171872 (rev1).stp \| 958.9 KB Download all 6 files as zip archive ZIP	18	per Row	Female	Angled	1.5	Tube	690001
690368172072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368172072 (rev1).pdf \| 278.8 KB IGS Download_IGES_690368172072 (rev1).iges \| 4.4 MB STP 690368172072 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	20	per Row	Female	Angled	1.5	Tube	690001
690368172272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368172272 (rev1).pdf \| 295.7 KB IGS Download_IGES_690368172272 (rev1).iges \| 4.8 MB STP 690368172272 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	22	per Row	Female	Angled	1.5	Tube	690001
690368172472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368172472 (rev1).pdf \| 316.1 KB IGS Download_IGES_690368172472 (rev1).iges \| 5.1 MB STP 690368172472 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	24	per Row	Female	Angled	1.5	Tube	690001
690368172672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690368172672 (rev1).pdf \| 337.7 KB IGS Download_IGES_690368172672 (rev1).iges \| 5.5 MB STP 690368172672 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	26	per Row	Female	Angled	1.5	Tube	690001
