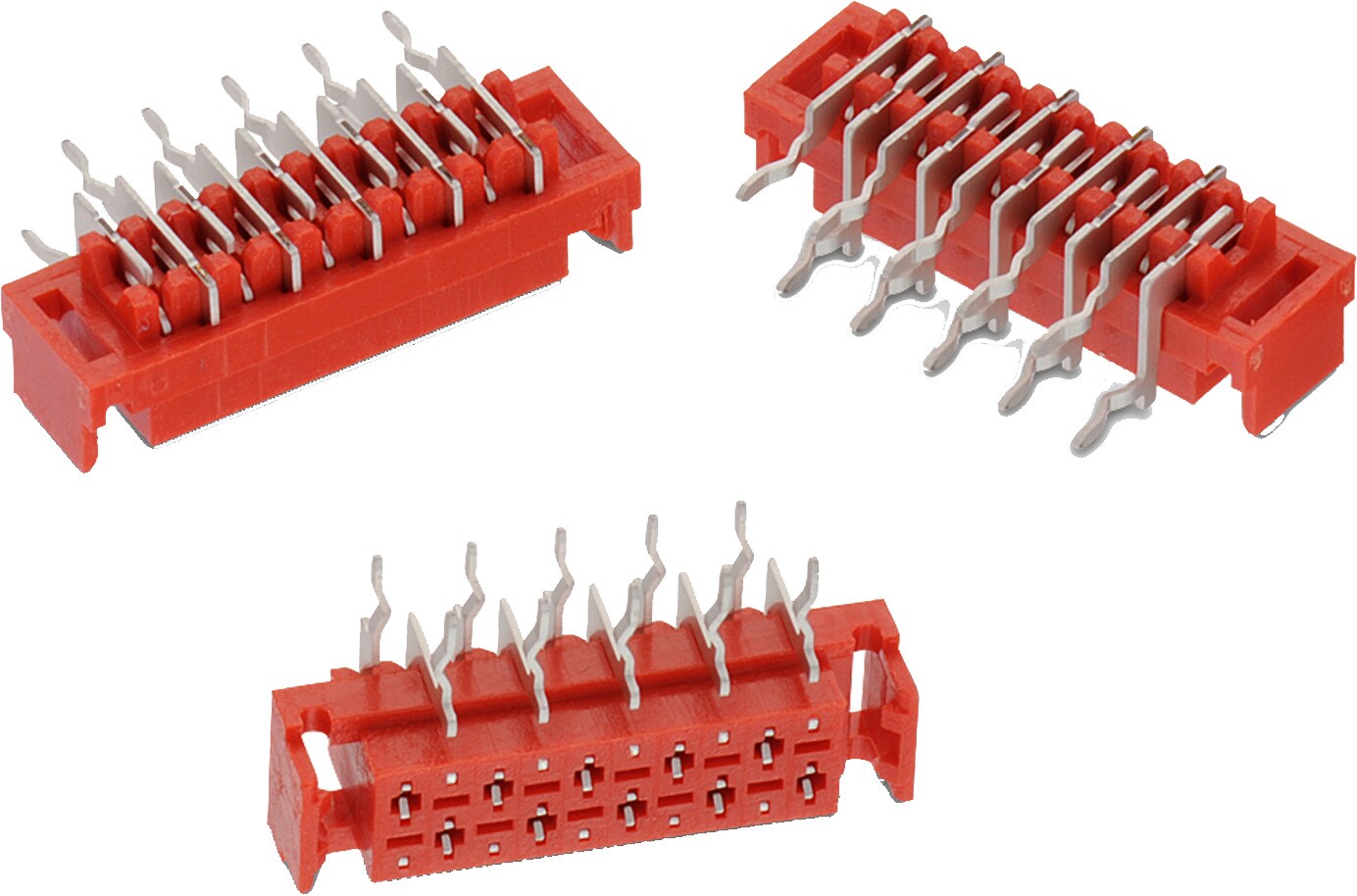

WR-MM Female Angled Connector with Latch & with Polarization

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Packaging Properties
cULus Approval	E323964
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	690368190472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368190472 (rev1).pdf \| 128.8 KB IGS 690368190472 (rev1).igs \| 2 MB STP 690368190472 (rev1).stp \| 760.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	per Row	Female	Angled	1.5	Tube	690001
	690368190672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368190672 (rev1).pdf \| 150.3 KB IGS 690368190672 (rev1).igs \| 2.3 MB STP 690368190672 (rev1).stp \| 909.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	per Row	Female	Angled	1.5	Tube	690001
	690368190872	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368190872 (rev1).pdf \| 167.7 KB IGS 690368190872 (rev1).igs \| 2.7 MB STP 690368190872 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	per Row	Female	Angled	1.5	Tube	690001
	690368191072	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191072 (rev1).pdf \| 191.6 KB IGS 690368191072 (rev1).igs \| 3 MB STP 690368191072 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	per Row	Female	Angled	1.5	Tube	612690 690001
	690368191272	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191272 (rev1).pdf \| 209.9 KB IGS 690368191272 (rev1).igs \| 3.4 MB STP 690368191272 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	per Row	Female	Angled	1.5	Tube	690001
	690368191472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191472 (rev1).pdf \| 229.8 KB IGS 690368191472 (rev1).igs \| 3.7 MB STP 690368191472 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	per Row	Female	Angled	1.5	Tube	690001
	690368191672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191672 (rev1).pdf \| 248.3 KB IGS 690368191672 (rev1).igs \| 4 MB STP 690368191672 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	per Row	Female	Angled	1.5	Tube	690001
	690368191872	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191872 (rev1).pdf \| 278.1 KB IGS 690368191872 (rev1).igs \| 4.4 MB STP 690368191872 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	per Row	Female	Angled	1.5	Tube	690001
	690368192072	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192072 (rev1).pdf \| 298.4 KB IGS 690368192072 (rev1).igs \| 4.8 MB STP 690368192072 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	per Row	Female	Angled	1.5	Tube	690001
	690368192272	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192272 (rev1).pdf \| 315.4 KB IGS 690368192272 (rev1).igs \| 5.1 MB STP 690368192272 (rev1).stp \| 2.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	per Row	Female	Angled	1.5	Tube	690001
	690368192472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192472 (rev1).pdf \| 335.8 KB IGS 690368192472 (rev1).igs \| 5.5 MB STP 690368192472 (rev1).stp \| 2.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	per Row	Female	Angled	1.5	Tube	690001
	690368192672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192672 (rev1).pdf \| 357.3 KB IGS 690368192672 (rev1).igs \| 5.8 MB STP 690368192672 (rev1).stp \| 2.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	per Row	Female	Angled	1.5	Tube	690001

	Order Code	Datasheet
	690368190472	SPEC
	690368190672	SPEC
	690368190872	SPEC
	690368191072	SPEC
	690368191272	SPEC
	690368191472	SPEC
	690368191672	SPEC
	690368191872	SPEC
	690368192072	SPEC
	690368192272	SPEC
	690368192472	SPEC
	690368192672	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-MM Male SMT Connector w/o Latch & w/o Polarization

WR-MM Male Connector w/o Latch & w. Polarization

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MM MiniModule Connectors
